Si01-881

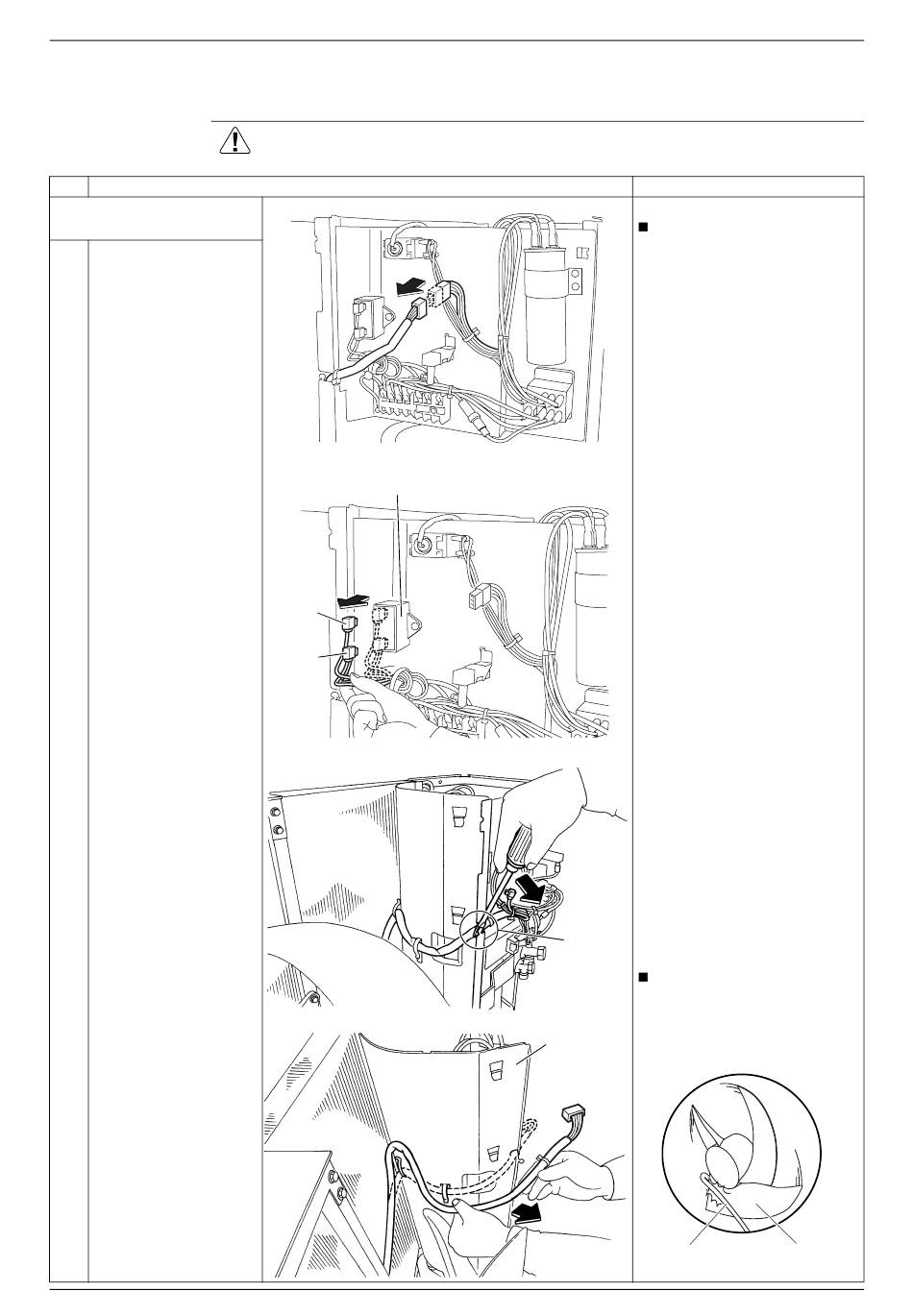

2. Removal of Fan Motor / Outdoor Fan

Procedure
Step
1. Disconnect the each wire
harness.
1 Disconnect the relay
connector for the fan
motor.
2 Disconnect the 2
terminals for the fan
motor capacitor (C1).
3 Unfasten the hook with
a flat screwdriver.
4 Release the fan motor
lead wire from the
partition plate.
Removal Procedure
Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Procedure
Fan motor capacitor (C1)
White
Red
Removal of Fan Motor / Outdoor Fan
Preparation
Remove the front panel
according to the "Removal of
the Outer Panels".
(R8330)
(R12811)
Hook
Put the fan motor lead wire
through the back of the fan
(R5436)
motor when reassembling so
as not to be entangled with
Partition plate
the outdoor fan.
Lead wire
(R12812)
Points
Outdoor fan
(R3249)
5
