ETS-Lindgren 5225 Series Manual

Safety Information
For complete safety information, see the Product Information Bulletin
ONLY QUALIFIED PERSONNEL should install, operate, or service this equipment.
WARRANTY
CONTACT ETS-LINDGREN PRIOR TO SERVICING. Servicing (or modifying) the unit by yourself
may void your warranty. If you attempt to service the unit by yourself, disconnect all electrical power
before starting. There are voltages at many points in the instrument that could, if contacted, cause
personal injury. Only trained service personnel should perform adjustments and/or service procedures
upon this instrument. Capacitors inside this instrument may still be CHARGED even when instrument is
disconnected from its power source.
Warranty Information
For warranty information, see the Product Information Bulletin
USA Headquarters
1301 Arrow Point Drive
Cedar Park, TX 78613
Phone: (512) 531-6400
support@ets-lindgren.com
Please see www.ets-lindgren.com
f or a list of all ETS-Lindgren offices.
© Copyright 2008–2010 by ETS-Lindgren L.P. All Rights Reserved. No part of this document
may be copied by any means without written permission from ETS-Lindgren L.P.
The ETS-Lindgren logo is a trademark of ETS-Lindgren L.P.
Revision/Date: A, Initial Release - September, 2008
B, Adjust graphics, add specifications - October, 2010
399296, Rev B
.
.
www.ets-lindgren.com

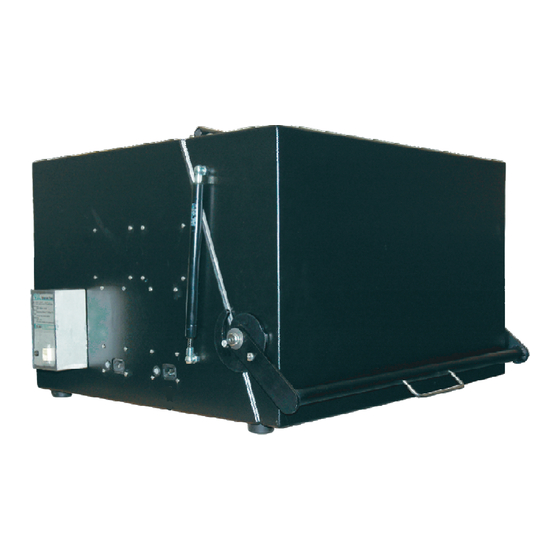

Model 5225 Series Shielded Enclosure
The following views and setup instructions apply to a standard configuration of the
ETS-Lindgren Model 5225 Series Shielded Enclosure
Model 5225 configurations. Contact ETS-Lindgren for questions regarding your configuration.
Front, Right Side
Lid handle
IEC power connector
(on front)
Back View
Antenna patch with
SMA connectors
equipment under test
. Components may vary for custom
Front, Left Side
Antenna patch with
SMA connectors
Inside View
Location for
Fiber optic
(EUT)
feedthrough
www.ets-lindgren.com
Filtered DB-9
feedthrough
