ETS-Lindgren HI-1501 User Manual

Microwave survey meter
Hide thumbs Also See for HI-1501:
Table of Contents

Advertisement

Quick Links

Download this manual
Model HI-1501
Microwave Survey Meter
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HI-1501 and is the answer not in the manual?

Questions and answers

Related Manuals for ETS-Lindgren HI-1501

Summary of Contents for ETS-Lindgren HI-1501

  • Page 1 Model HI-1501 Microwave Survey Meter User Manual...
  • Page 2 ETS-Lindgren Inc. reserves the right to make changes to any products herein to improve functioning or design. Although the information in this document has been carefully reviewed and is believed to be reliable, ETS-Lindgren does not assume any liability arising out of the application or use of any product or circuit described herein;...

  • Page 3: Table Of Contents

        Calibration Method ..................7   Standard Configuration .................. 7   Optional Items ....................7   ETS-Lindgren Product Information Bulletin ........... 8 2.0 Maintenance ............... 10     Maintenance Recommendations ..............10   Spacer Cone Replacement..............10   Battery Replacement ................11  ...

  • Page 4: Notes, Cautions, And Warnings

    Warning: Denotes a hazard. Failure to follow instructions could result in SEVERE personal injury and/or property damage. Included text gives proper procedures. Note: See the ETS-Lindgren Product Information Bulletin for safety, regulatory, and other product marking information. Safety Information Refer to Manual: When product is marked with this symbol, see the instruction manual for additional information.
  • Page 5 Protective Earth Ground (Safety Ground): Indicates protective earth terminal. You should provide uninterruptible safety earth ground from the main power source to the product input wiring terminals, power cord, or supplied power cord set. Laser Warning: Denotes a laser (class 1M) is part of the operating system of the device.

  • Page 6: Introduction

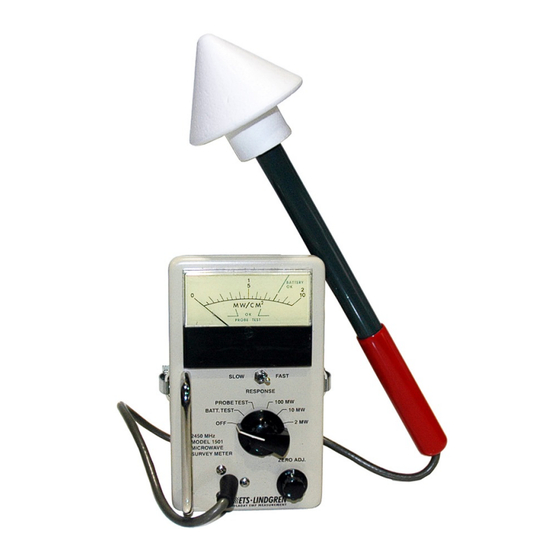

    1.0 Introduction The ETS-Lindgren Model HI-1501 Microwave Survey Meter is a rugged, compact, portable instrument that is virtually immune to failure caused by excessive fields or physical abuse. This instrument is acceptable to the US Government Center for Devices and Radiological Health (FDA/CDRH) for compliance testing of microwave ovens and to all major microwave oven manufacturers for testing ovens in use and after repair.

  • Page 7: Calibration Method

    The HI-1501 must be used with the spacer cone in place. Using the instrument without the cone will result in reading errors and may damage the unit. Calibration Method Each meter is calibrated by placing the probe in a CW (continuous wave) 2450 MHz electromagnetic field.

  • Page 8: Ets-Lindgren Product Information Bulletin

    ETS-Lindgren Product Information Bulletin See the ETS-Lindgren Product Information Bulletin included with your shipment for the following:  Warranty information  Safety, regulatory, and other product marking information  Steps to receive your shipment  Steps to return a component for service ...
  • Page 9 This page intentionally left blank. Introduction...

  • Page 10: Maintenance

    If you have any questions concerning maintenance, contact ETS-Lindgren Customer Service. Maintenance Recommendations PACER EPLACEMENT Do not use the HI-1501 without the space cone in position. To maintain stated instrument accuracy, only use spacer cones provided by ETS-Lindgren. Maintenance...

  • Page 11: Battery Replacement

    The spacer cone must be replaced when worn or contaminated. A polystyrene cone shield provides protection for the relatively soft material of the cone. 1. Remove the old cone by pulling straight up and off the end of the probe. 2.

  • Page 12: Annual Calibration

    H-540013 (10 Cones and 20 Shields) 600 mL Plastic Beaker H-44600MLP Carrying Case H-51FPC6506B Service Procedures For the steps to return a system or system component to ETS-Lindgren for service, see the Product Information Bulletin included with your shipment. Maintenance...
  • Page 13 This page intentionally left blank. Maintenance...

  • Page 14: Specifications

    3.0 Specifications Electrical Specifications Frequency 2450 MHz (±50 MHz) Power Range 0.2-100 mW/cm² Accuracy ±1 dB Response Time Fast Mode: <1 second Slow Mode: 2 – 3 seconds (to 90% of Impulse Level) Overload Capacity Continuous 2.0 W/cm² Physical Specifications Dimensions 5.3 x 6.8 x 4.13 cm (2.09 x 2.68 x 4.13 in)
  • Page 15 This page intentionally left blank. Specifications...

  • Page 16: Operation

    Accuracy The accuracy of the ETS-Lindgren Model HI-1501 Microwave Survey Meter is within ± 1 dB (+25%, -20%) when used according to these instructions: Always use a clean spacer cone. Accuracy will be affected by wear of the cone and by dirt and metallic particles which may become imbedded in the EPS (Expanded Polystyrene-Styrofoam).
  • Page 17 The normal operating temperature ranges is between 60º and 90º F (15.5º and 32.2º C). If used outside this range, an additional error will be introduced. This error can be approximated as -0.14% per Fahrenheit (F) degree. The negative temperature coefficient means that the instrument reads high at lower temperatures and low at higher temperatures.

  • Page 18: Preparing The Oven

    Preparing the Oven Do not attempt to operate a microwave oven with:  Any object caught in the door.  A door that does not close properly  A damaged door, hinge, latch or sealing surface. Make sure the oven is clean and there is no buildup of dirt around the door seal area.

  • Page 19: Preparing The Meter

    (Styrofoam) spacer cone is intact and firmly seated on the probe. Check the cone for signs of wear or contamination. If the cone is contaminated or worn, contact ETS-Lindgren Customer Service Department for replacement. Move the SLOW / FAST switch to the FAST position. Turn the selector switch to the BATT TEST position.

  • Page 20: Making A Measurement

    Making a Measurement Turn the oven on and proceed with the leakage measurement. Hold the probe by the red handle in one hand and hold the meter in the other hand. Place the tip of the spacer cone against the oven surface, with the probe handle perpendicular to the surface.

  • Page 21: What The Measurement Means

    Hold the probe in place over the spot for at least five seconds and watch for the highest needle indication. The needle will move slower and not go quite as high as it did in the FAST position. The reading you obtain is the maximum leakage of the oven.

  • Page 22: Appendix A: Warranty

    Appendix A: Warranty See the Product Information Bulletin included with your shipment for the complete ETS-Lindgren warranty for your ETS-Lindgren Model HI-1501 Microwave Survey Meter. HI-1501 M URATION OF ARRANTIES FOR ICROWAVE URVEY ETER All product warranties, except the warranty of title, and all remedies for warranty failures are limited to one year.
  • Page 23 This page intentionally left blank. Warranty...

  • Page 24: Appendix B: Ec Declaration Of Conformity

    Appendix B: EC Declaration of Conformity EC Declaration of Conformity...
  • Page 25 This page intentionally left blank. EC Declaration of Conformity...
