ETS-Lindgren HI-4433 User Manual

Broadband isotropic field probe
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Model HI-4433
Broadband Isotropic
Field Probe
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HI-4433 and is the answer not in the manual?

Questions and answers

Related Manuals for ETS-Lindgren HI-4433

Summary of Contents for ETS-Lindgren HI-4433

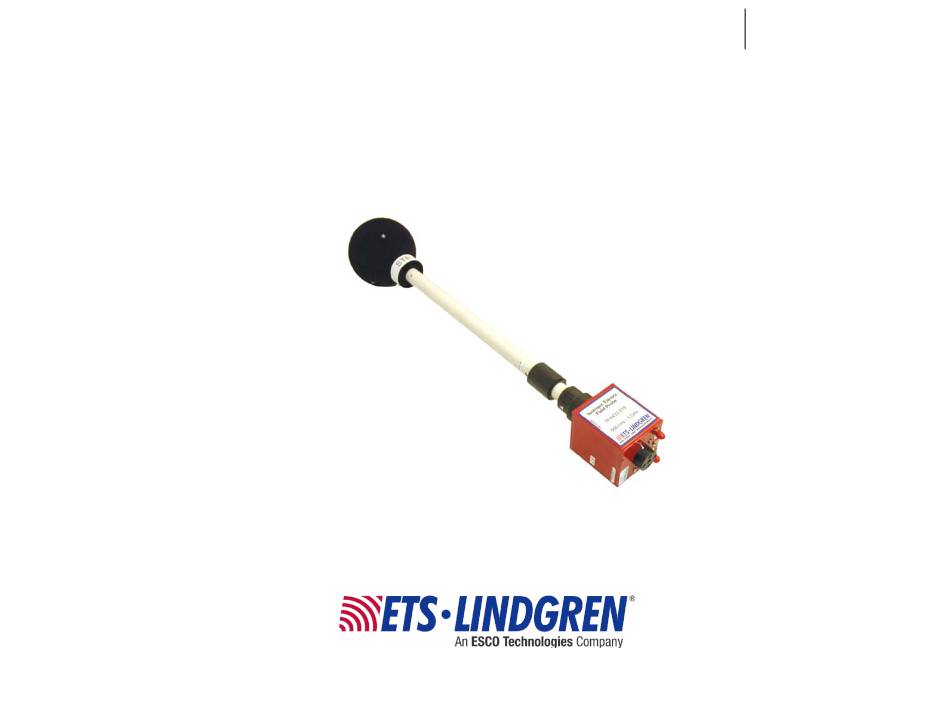

  • Page 1 Model HI-4433 Broadband Isotropic Field Probe User Manual...
  • Page 2 This page intentionally left blank.
  • Page 3 ETS-Lindgren L.P. Trademarks used in this document: The ETS-Lindgren logo is a trademark of ETS-Lindgren L.P. Revision Record | HI-4433 Series Probe, MANUAL | Part #600056, Rev. L Revision Description Date...
  • Page 4 Revision Description Date Updated branding: Revised to meet March, 2009 Style Guide specifications; reformatted to half-size; PIB included with release Updated format; updated manual to August, 2016 include dynamic range for each model.

  • Page 5: Table Of Contents

    Table of Contents Notes, Cautions, and Warnings ..........vii   Safety Information ..............vii   Introduction ................9     ETS-Lindgren Product Information Bulletin ..........10 Maintenance ................11     Maintenance Recommendations ..............11   Annual Calibration ..................11  ...
  • Page 6 Batteries ..................33     Safety Precautions ..................33   Introduction ....................33   Battery Life ....................34   Charging a Battery ..................34   Specifications ....................36   Maintenance Recommendations ..............37 Appendix D: HI-4433 Operating Protocols ......39  ...

  • Page 7: Notes, Cautions, And Warnings

    Warning: Denotes a hazard. Failure to follow instructions could result in SEVERE personal injury and/or property damage. Included text gives proper procedures. Note: See the ETS-Lindgren Product Information Bulletin for safety, regulatory, and other product marking information. Safety Information High Voltage: Indicates presence of hazardous voltage.
  • Page 8 This page intentionally left blank. viii |...

  • Page 9: Introduction

    HI-4433 series probes measure the field strength in each of three axes. They perform a vector addition calculation on the readings and send the result to the readout via a fiber optic cable.

  • Page 10: Ets-Lindgren Product Information Bulletin

    ETS-Lindgren Product Information Bulletin See the ETS-Lindgren Product Information Bulletin included with your shipment for the following:  Warranty information  Safety, regulatory, and other product marking information  Steps to receive your shipment  Steps to return a component for service ...

  • Page 11: Maintenance

    If you have any questions concerning maintenance, contact ETS-Lindgren Customer Service. Maintenance Recommendations Maintenance of the HI-4433 probe is limited to external components such as cables or connectors. Annual Calibration The HI-4433 probe assembly (sensor and electronics housing) requires an annual calibration check to verify that they are performing within specifications.

  • Page 12: Replacement And Optional Parts

    Replacement and Optional Parts Following are the part numbers for ordering replacement or optional parts for the HI-4433 Broadband Isotropic Field Probe. Replacement Parts Part Description Part Number Battery Pack, 3.6 VDC, H-491038 Rechargeable Standard Fast Charger (115/230 H-491198-36 Volt) Cable, Fiber Optic, Glass, 2 Meter H-491106-xx (where “xx”...

  • Page 13: Upgrade Policies

    Periodically, probes are upgraded to enhance functionality. Contact ETS- Lindgren Customer Service for the upgrade status of your probe. Service Procedures For the steps to return a system or system component to ETS-Lindgren for service, see the Product Information Bulletin included with your shipment. Maintenance...
  • Page 14 This page intentionally left blank. Maintenance...

  • Page 15: Specifications

    Specifications General Specifications  Overall +2/-3 dB*  At calibration points Calibration Accuracy ±0.5 dB* *Absolute accuracy to NIST ± 1.0 dB Isotropicity ± 0.5 dB Linearity ±0.5 dB  Operating Temp. 10ºC to 40ºC (50º F to 104ºF) Environmental ...

  • Page 16: H-Field Probes

    H-Field Probes HI-4433-HCH Ranges 0.1, 0.3, 1.0, 3.0 A/m full scale Dynamic Range 0.03-3.0 A/m Frequency Response 5.0 to 300 MHz See General Specifications for more information. HI-4433-LFH Ranges 1.0, 3.0, 10.0, 30.0 A/m full scale Dynamic Range 0.3-30.0 A/m Frequency Response 0.3 to 30.0 MHz...

  • Page 17: E-Field Probe Specifications

    HI-4433-CH Ranges 0.3, 1.0, 3.0, 10.0 A/m full scale Dynamic Range 0.1-10.0 A/m Frequency Response 5.0 to 300 MHz See General Specifications for more information. E-Field Probe Specifications HI-4433-STE Ranges 100, 300, 1000, 3000 V/m full scale Dynamic Range 30-3000 V/m Frequency Response 500 kHz to 5.0 GHz...

  • Page 18: Hi-4433-Gre

    HI-4433-GRE Ranges 10, 30, 100, 300 V/m full scale Dynamic Range 3-300 V/m Frequency Response 500 kHz to 5.0 GHz See General Specifications for more information. HI-4433-MSE Ranges 30, 100, 300, 1000 V/m full scale Dynamic Range 10-1000 V/m Frequency Response 500 kHz to 5.0 GHz...

  • Page 19: Practical Application And Use

    ETS-Lindgren Product Information Bulletin included with your shipment. System Theory HI-4433 series Broadband RF Probes utilize a microprocessor for intelligent operation and control. Their self-contained power supply employs a 3.6 VDC NiCd battery, which provides up to 20 hours of continuous operation.

  • Page 20: Probe Power Supply

    In addition to the inputs from the three axes, HI-4433 series probes utilize a fourth input called the Autozero channel. This is a redundant channel identical to the three axis channels except that, instead of being driven by a dipole, it is terminated (in the probe head) by a carbon resistor.

  • Page 21: Hi-4416 Hand Held Readout

    Optional Probe Interface/Readout The probe provides data to the readout via either a short form or long form output word. Commands to the probe use these same word forms. See Appendix B for details on the format for both out put words.

  • Page 22: Hi-4413P Fiber Optic Interface

    NTERFACE For limited, specialized applications, you may use any computer with an RS232 serial port to communicate directly with the HI-4433 series probes via ETS-Lindgren’s optional HI-4413P Fiber Optic/RS232 Interface. HI-4413USB For connection to a computer USB port, the HI-4413USB is available as an option.

  • Page 23: Operation

    Operation Before connecting any components, follow the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment. A switch, two fiber optic connectors and a battery charger connector are mounted on the HI-4433 electronics housings. Xmit/Rcv The fiber optic cable assembly from the receiver is attached to the probe via two connectors.

  • Page 24: Arm/Off

    Always check the condition of the battery prior to making any measurements. A standard fast charger is supplied with the HI-4433. When charging is complete, the fast charger acts as a trickle charger.
  • Page 25 +20ºC to +30ºC (+68ºF to +86ºF).  The battery in the HI-4433 probe does not require periodic deep discharges to reverse the capacity depleting memory effect caused by repeated shallow discharges; however, undercharging can reduce battery capacity.

  • Page 26: Assembling The Probe

    Assembling the Probe Each HI-4433 series probe assembly consists of a spherical casing containing the senor mounted on one end of a shaft and an extrusion that houses the electronics. The sensor and electronics housing operate, and are calibrated, as a unit.
  • Page 27 Pull the collar on the housing up to the threads on the probe and twist to begin tightening. Turn the collar until the threads on the probe are covered. Be careful not to over- tighten. Operation...
  • Page 28 This page intentionally left blank. Operation...

  • Page 29: Appendix A: Warranty

    Appendix A: Warranty See the Product Information Bulletin included with your shipment for the complete ETS-Lindgren warranty for your HI-4433 Broadband Isotropic Field Probe. HI-4433 B URATION OF ARRANTIES FOR ROADBAND SOTROPIC IELD ROBE All product warranties, except the warranty of title, and all remedies for warranty failures are limited to one year.
  • Page 30 This page intentionally left blank. Warranty...

  • Page 31: Appendix B: Ec Declaration Of Conformity

    Appendix B: EC Declaration of Conformity EC Declaration of Conformity...
  • Page 32 This page intentionally left blank. EC Declaration of Conformity...

  • Page 33: Appendix C: Series H-491198-36 Battery Charger For Nicd Batteries

    Appendix C: Series H-491198-36 Battery Charger for NiCd Batteries The HI-4422 Field Probe contains a Nickel Cadmium (NiCd) battery, and uses the Series H-491198-36 Battery Charger. AFETY RECAUTIONS Before operating the Series H-491198-36 Battery Charger, see Safety Information on page vii. NTRODUCTION The H-491198-36 Nickel-Cadmium (NiCd) Battery Charger is a dual power source...

  • Page 34: Battery Life

    If the battery exhibits low terminal voltages during charging, or if it appears unable to acquire or maintain a charge, individual cells in the battery may be shorted or damaged. If your battery needs replacement for any reason, contact ETS-Lindgren Customer Service. HARGING A ATTERY Make sure the power switch on the Field Probe is set to the OFF position or the battery will not charge.
  • Page 35 HARGING NDICATORS The following LEDs are located on the front of the battery charger:  POWER ON (green)—Indicates the battery charger is connected to the AC power source.  NO BATTERY (amber)—Indicates the battery charger does not detect a battery. ...

  • Page 36: Specifications

    1400 mA Pulsed Trickle Charge Current: 50 mA Output Voltage (During Fast 3 - 6 Vdc Charge): NiMH Battery:  3.6 volt 3 cell NiCd Battery, 1400 mAH (rapid charge cells, 1.2 volts/cell)  ETS-Lindgren Part #491038 Series H-491198-36 Battery Charger...

  • Page 37: Maintenance Recommendations

    Environmental º º Operating Temperature: C to 40 º º F to 104 Humidity: 5% to 95% relative humidity, non-condensing AINTENANCE ECOMMENDATIONS  Operate the battery charger with care.  There are no user serviceable parts inside the battery charger. Opening the battery charger housing may void your warranty.
  • Page 38 Replace the blown fuse with the spare fuse. Slide the fuse drawer back into the module. Make sure that the drawer snaps securely into its locked position. Series H-491198-36 Battery Charger...

  • Page 39: Appendix D: Hi-4433 Operating Protocols

    7 bit Parity: Stop Bits: Data Rate: 9,600 baud NFORMATION RANSFER ROTOCOL The HI-4433 series probes only respond to commands from another device; they transmit no data without first receiving instructions to do so. OMMAND TRUCTURE Probe Description Probe Response Command Axxx Axis enable/disable.
  • Page 40 Probe Description Probe Response Command Read probe data. For D1 command: Dxx.xxuuu, the short form  x=1, enables short form output output  xx.xx=the reading, and the  x=2, enables long form position of the decimal output point depends upon the range setting of the Field Probe ...
  • Page 41 Probe Description Probe Response Command Set range. Rx, where x is the range  x=1, 2, 3, 4, or N (next  x=returns the range range) currently in use  x=1, 2, 3, 4 enables the selected range x=N sets the Field Probe to the next higher range For TF command: Read temperature.
  • Page 42 ROBE RROR UTPUT If an error occurs, the probe will respond with one of the following strings. These strings begin with a colon and end with a carriage return. Communication error (for example, overflow) Buffer full error; too many characters contained between the start character and carriage return sequence Received command is invalid Received parameter is invalid...
