- Page 1 HI-3638 ELF / VLF Electric Field Meter User Manual...
- Page 2 ETS-Lindgren Inc. reserves the right to make changes to any product described herein in order to improve function, design, or for any other reason. Nothing contained herein shall constitute ETS-Lindgren Inc. assuming any liability whatsoever arising out of the application or use of any product or circuit described herein.
-
Page 3: Table Of Contents
Replacement and Optional Parts ..............11 Service Procedures ..................11 3.0 Specifications ..............13 HI-3638 Typical Frequency Response ............15 4.0 HI-3638 Controls and Connectors ........17 Transmit / Receive ..................17 ELF/OFF/VLF ....................18 ... - Page 4 Appendix B: Operating Protocols .......... 33 Communication Protocol ................33 Information Transfer Protocol ..............33 Probe Commands ..................34 Error Codes ....................35 Appendix C: References ............37 Appendix D: EC Declaration of Conformity ......41 www.ets-lindgren.com...
-
Page 5: Notes, Cautions, And Warnings
Warning: Denotes a hazard. Failure to follow instructions could result in SEVERE personal injury and/or property damage. Included text gives proper procedures. Note: See the ETS-Lindgren Product Information Bulletin for safety, regulatory, and other product marking information. Safety Information Refer to Manual: When product is marked with this symbol, see the instruction manual for additional information. - Page 6 At end of useful life, please recycle the used batteries, or dispose of them safely and properly. Many cities collect used batteries for recycling or disposal. You may contact your local waste disposal agency for information on battery recycling and disposal. www.ets-lindgren.com...
-
Page 7: Introduction

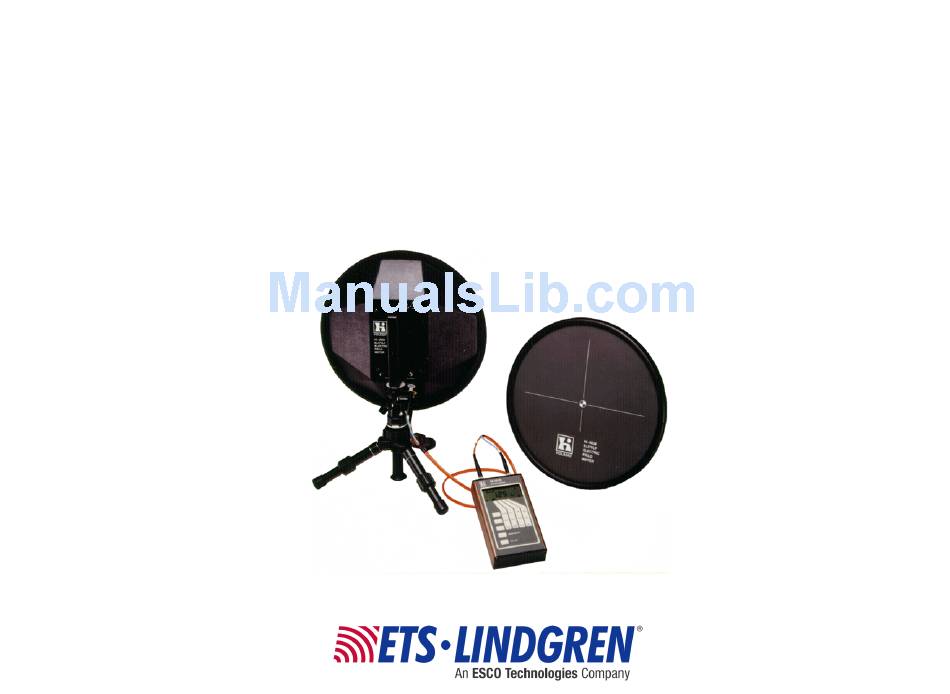

(Tripod not included) The HI-3638 is useful in low field intensity measurements such as video display terminals (VDTs) and computer monitors, as well as higher field environments such as power transmission lines and industrial locations. -
Page 8: Ets-Lindgren Product Information Bulletin
ETS-Lindgren Product Information Bulletin See the ETS-Lindgren Product Information Bulletin included with your shipment for the following: Warranty information Safety, regulatory, and other product marking information Steps to receive your shipment Steps to return a component for service ... -
Page 9: Maintenance
Before performing any maintenance, follow the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment. Maintenance of the HI-3638 is limited to WARRANTY external components such as cables or connectors. Warranty may be void if the enclosure is opened. -
Page 10: Maintenance Of Fiber Optics
Before connecting fiber optic cables, clean the connector tips and in-line connectors. Before attaching in-line connectors, clean them with moisture-free compressed air. Failure to perform these tasks may result in damage to the fiber optic connectors or cables. Maintenance www.ets-lindgren.com... -
Page 11: Replacement And Optional Parts
HI-4413P Fiber Option to USB Converter, HI-4413USB USB interface Probeview II™ Software H-491255 Service Procedures For the steps to return a system or system component to ETS-Lindgren for service, see the Product Information Bulletin included with your shipment. www.ets-lindgren.com Maintenance... - Page 12 This page intentionally left blank. Maintenance www.ets-lindgren.com...
-
Page 13: Specifications
±0.75 dB @ Calibration Points Display Resolution: 3 1/2 Digit LCD 0.01 V/m Waveform Out Output Sensitivity: 1 Volt/Full Scale Range Output Impedance: 1 Ω Waveform Out Jack: 3.5 mm (0.14 in) Phone Jack Grounding Jack: Standard Banana Jack www.ets-lindgren.com Specifications... - Page 14 35 mA Battery Life: 40 Hours (Nominal) Battery Charger: 110/240 VAC, 16 Hour Battery Charger Jack: 2.5 mm (0.1 in) Phone Jack Physical Specifications Height: 102 mm (4 in) Diameter 305 mm (12 in) Weight: 0.91 kg (2 lb) Specifications www.ets-lindgren.com...
-
Page 15: Hi-3638 Typical Frequency Response
HI-3638 Typical Frequency Response Measured at 20 V/m. www.ets-lindgren.com Specifications... - Page 16 This page intentionally left blank. Specifications www.ets-lindgren.com...
-
Page 17: Hi-3638 Controls And Connectors
ETS-Lindgren Product Information Bulletin included with your shipment. Following is a description of the controls and connectors for the HI-3638 ELF/VLF Electric Field Meter. Transmit / Receive Plug the fiber optic cable from the HI-4416 Digital Readout/Control Unit into the TRANSMIT connector and RECEIVE connector on the HI-3638, matching white to white (for transmit) and yellow to yellow (for receive). -
Page 18: Elf/Off/Vlf
This switch activates and deactivates the HI-3638 as well as the selection of ELF or VLF bands. LEDs indicate which band is selected. In the ELF or VLF position the HI-3638 is powered by the internal 12 VDC nickel-cadminum (NiCd) battery. To prolong battery life, set the switch to OFF when not in use. -
Page 19: Battery Charger
Disconnect the battery charger from power. Use a small screwdriver to loosen and remove the fuse assembly from the power entry module. Slide the small board located on the back of the fuse assembly from right to left to remove it. www.ets-lindgren.com Battery Charger... -
Page 20: Charging The Battery
Connect the battery charger to a power source. Switch the HI-3638 to OFF. Insert the charging plug into the CHARGE connector on the HI-3638. When the charging plug is connected, the LED on the battery charger illuminates. It remains illuminated until the charging plug is disconnected. -
Page 21: Battery Tips
C (+68 F to +86 HARGING The HI-3638 battery does not require periodic deep discharges to reverse the capacity-depleting memory effect caused by repeated shallow discharges; however, undercharging can reduce battery capacity. Therefore, after the charging procedure is complete, verify that the battery is fully charged before resuming field operation. - Page 22 This page intentionally left blank. Battery Charger www.ets-lindgren.com...
-
Page 23: Application
6.0 Application Meter The HI-3638 ELF/VLF Electric Field Meter is a single axis meter (responsive to one polarization component at a time) designed to be responsive to electric fields, including non-sinusoidal waveforms, from 5 Hz to 400 kHz. When the HI-3638 is immersed in an electric field, the sensor generates a current. - Page 24 The HI-3638 uses this principle to detect electric fields by measuring the displacement current caused by the ambient field between two closely spaced circular disks. By placing such a detector in a known electric field, the displacement current can be related directly to the magnitude of the field causing it, permitting calibration.
-
Page 25: Power Frequency Fields
7.0 Power Frequency Fields Before connecting or operating any component, follow the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment. Use care when operating this instrument near energized conductors. www.ets-lindgren.com Power Frequency Fields... - Page 26 At other points the fields from the conductors may destructively add leading to minima in the fields. Thus, power line fields can have rather complex spatial distributions about the line. Power Frequency Fields www.ets-lindgren.com...
- Page 27 This same phenomenon occurs with virtually any grounded object immersed in the electric field environment of a power line and can be confirmed through field measurements. www.ets-lindgren.com Power Frequency Fields...
- Page 28 In addition, the presence of the operator will tend to perturb the electric field that is being measured. The operator should remain approximately one to two times their height away from the HI-3638 sensor. Power Frequency Fields...
-
Page 29: Guidelines For Emf Exposure
Regardless of these considerations, it is informative to examine some of the recommended exposure guides that apply to different organizations and/or countries. www.ets-lindgren.com Guidelines for EMF Exposure... -
Page 30: Radio Frequency Exposure / Emission Standards Pertinent To Vdt Frequency Range
VDTs in the frequency range of 50 Hz to 0.3 MHz shall be as low as possible, and should not at any time exceed an electric field strength of 50 V/m, measured 30 cm from the terminal. Guidelines for EMF Exposure www.ets-lindgren.com... -
Page 31: Appendix A: Warranty
Appendix A: Warranty See the Product Information Bulletin included with your shipment for the complete ETS-Lindgren warranty for your HI-3638. HI-3638 URATION OF ARRANTIES FOR All product warranties, except the warranty of title, and all remedies for warranty failures are limited to one year. - Page 32 This page intentionally left blank. Warranty www.ets-lindgren.com...
-
Page 33: Appendix B: Operating Protocols
A command letter consisting of: Parameters (if required) A start character (":") <CR> (a carriage return) The command letter Data (if required) <CR> (a carriage return) www.ets-lindgren.com Operating Protocols... -
Page 34: Probe Commands
_V_=V/m mW2=mW/cm Set range :Rx<CR> x=1, 2, 3, 4, or Rx=range currently in use N (next range) Set unit type :Ux<CR> x=1, V/m U1=set to V/m x=2, mW/cm U2=set to mW/cm Operating Protocols www.ets-lindgren.com... -
Page 35: Error Codes
Communication error (for example, overflow) Buffer full error; too many characters contained between the start character and carriage return sequence Received command is invalid Received parameter is invalid Hardware error (for example, EEPROM failure) Parity error www.ets-lindgren.com Operating Protocols... - Page 36 This page intentionally left blank. Operating Protocols www.ets-lindgren.com...
-
Page 37: Appendix C: References
Guy, A.W. (1987). Measurement and analysis of electromagnetic field emissions from 24 video display terminals in American Telephone and Telegraph office Washington, D.C. A report prepared for the National Institutes of Occupational Safety and Health, Cincinnati, March 16. www.ets-lindgren.com References... - Page 38 Safety, Hamilton, Ontario, Canada, December. Mass (1983). Regulations governing fixed facilities which generate electromagnetic fields in the frequency range of 300 kHz to 100 GHz and microwave ovens. 105 CMR 122.000, Commonwealth of Massachusetts, Massachusetts Register, issue no. 379, September. References www.ets-lindgren.com...
- Page 39 Tell, R.A. (1983). Instrumentation for measurement of electromagnetic fields: equipment, calibration, and selected applications. In Biological Effects and Dosimetry of Nonionizing Radiation, (Eds., M. Grandolgo, S. Michaelson, and A. Rindi), NATO Advance Study Institute Series, Series A.: Life Sciences, Vol. 49, Plenum Publishing Company. www.ets-lindgren.com References...
- Page 40 GOST 12.1.006-76 of the State Committee on Standards of the Council of Ministers of the USSR, Moscow, January 22. Weiss M.M. and R.C. Petersen (1979). Electromagnetic radiation emitted from video computer terminals, American Industrial Hygiene Association Journal (40), pp. 300-309, April. References www.ets-lindgren.com...
-
Page 41: Appendix D: Ec Declaration Of Conformity
Appendix D: EC Declaration of Conformity www.ets-lindgren.com EC Declaration of Conformity...
