PFT LOTUS XL light Series Operating Manual
  1. Manuals
  2. Brands
  3. PFT Manuals
  4. Mixer
  5. LOTUS XL light Series
  6. Operating manual

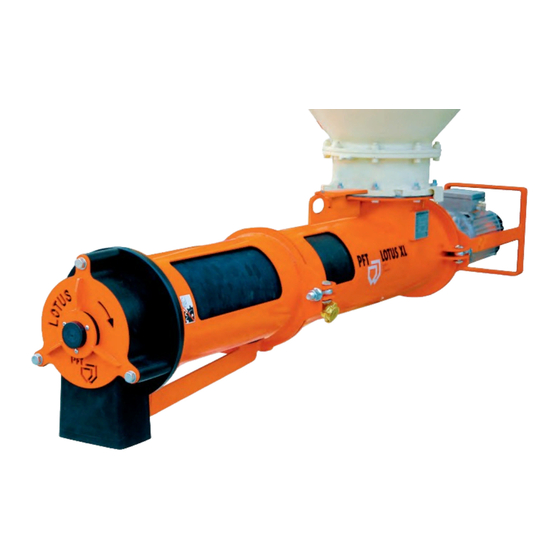

PFT LOTUS XL light Series Operating Manual

Horizontal screw mixer 400 v
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Contents
2017-01-16

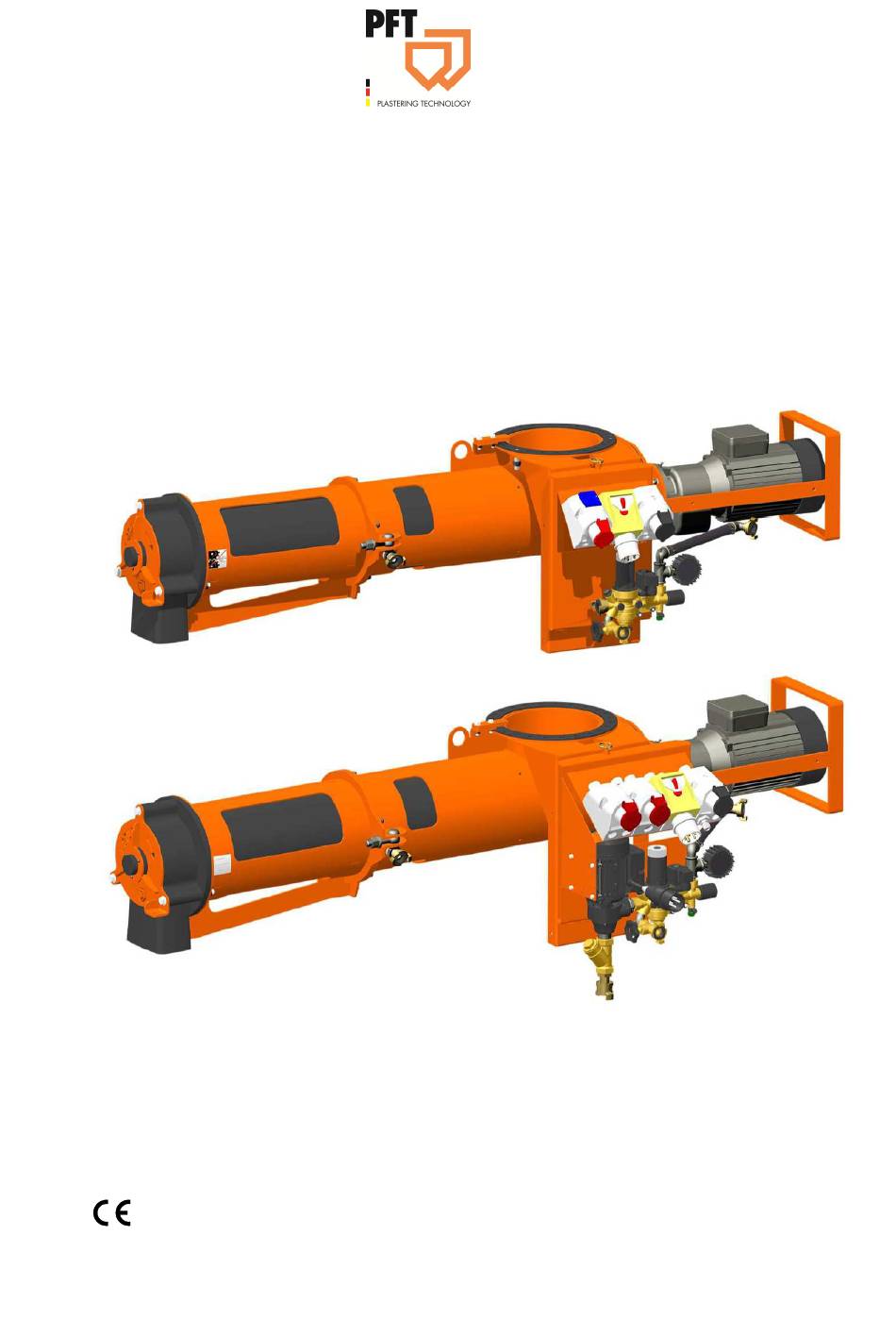

Operating manual
PFT LOTUS XL light 400 V
Overview – Operation – Spare Parts Lists
Item number of operating manual: 00 49 48 20
LOTUS XL silo light, 400V, 3 Ph, 50 Hz, 45L RAL2004 item number 00103495
LOTUS XL silo light, 400V, 3 Ph, 50 Hz, 90L RAL2004 item number 00106142
LOTUS XL silo light, 400V, 3 Ph, 50 Hz, 60L RAL5010 item number 00491262
LOTUS XL silo light, 400V, 3 Ph, 50 Hz, 60L RAL3604050 item number 00494491
LOTUS XL silo light, 400V, 60Hz, 45L RAL5021 Artikelnummer 00500464
Read the operating manual prior to beginning any work!
