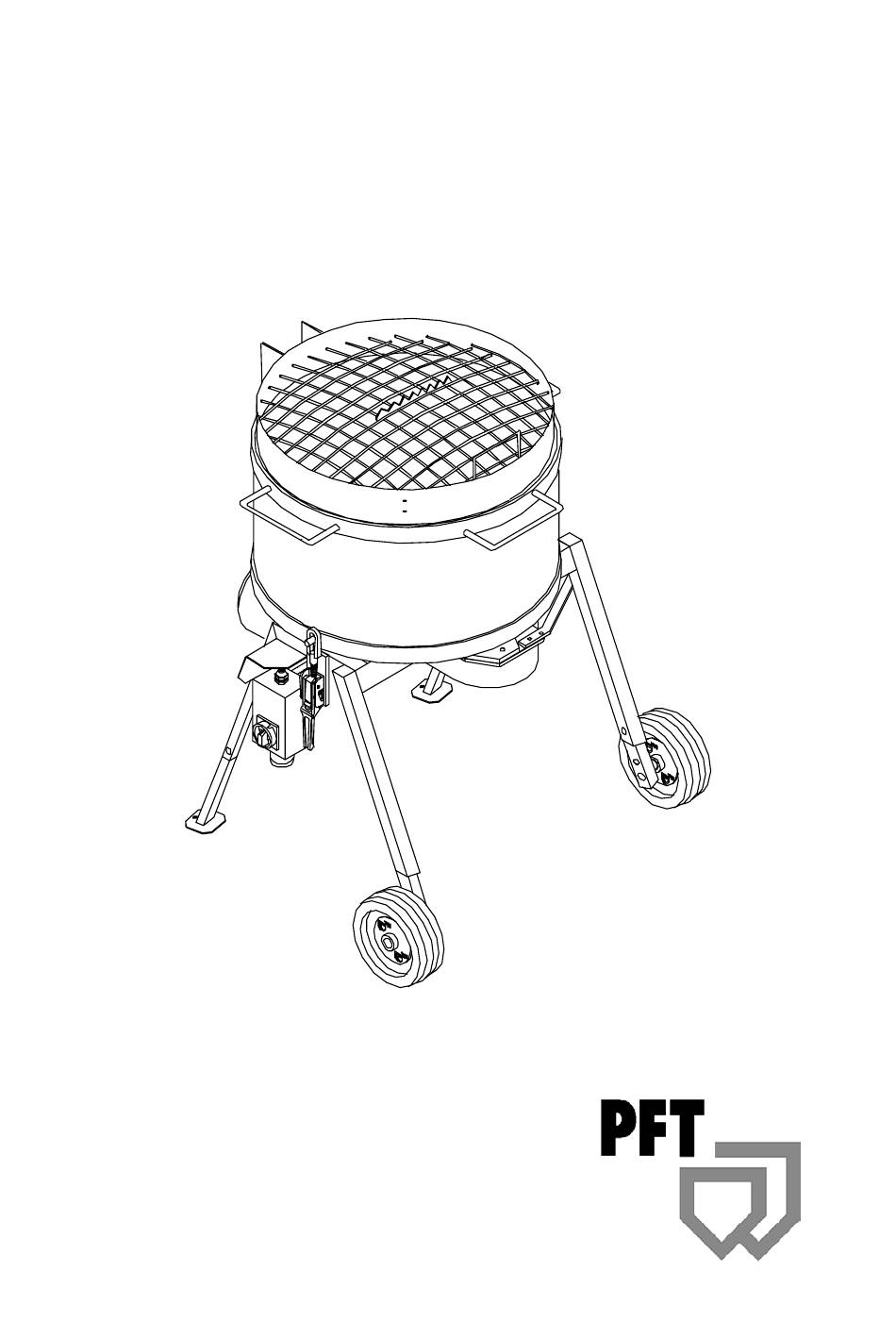

- Page 1 MANUAL AND SPARE PART LIST (Item number of the operating instructions 00 07 79 19) (Item number of the machine 20 80 00 00) CONTINUOUS MIXER PFT MULTIMIX WE KEEP THINGS MOVING...
-
Page 3: General Information
The PFT MULTIMIX continuous mixer will be a trustworthy aid, if it is operated correctly and handled with care. It is prohibited to forward this document, even excerpts, without our written authorisation. -
Page 4: Table Of Contents
Maintenance ..............................10 Check list ................................. 10 Circuit diagram..............................11 Spare part lists..............................12 Technical Data..............................18 _______________________________________________________________________________________ Knauf PFT GmbH & Co. KG Telephone +49 (0)9323 / 31-760 PO Box 60 +49 (0)9323 / 31-770 D-97343 Iphofen Internet www.pft.de... -
Page 5: Overview
Protection grille with safety shutdown Main reversing switch Mixing unit Material outlet Worm gear motor Main basic frame Material hopper _______________________________________________________________________________________ Knauf PFT GmbH & Co. KG Telephone +49 (0)9323 / 31-760 PO Box 60 +49 (0)9323 / 31-770 D-97343 Iphofen Internet www.pft.de _______________________________________________________________________________________... - Page 6 PFT MULTIMIX Description of functions 12/2004 ____________________________________________________________________________________________________________ The PFT MULTIMIX is a continuous mixer designed for mixing loads of factory- produced, pre-mixed, ready-to-use mortar or customised mixtures with water or other liquids. Please observe the processing guidelines of the material manufacturer.
-
Page 7: Basic Safety Instructions
_______________________________________________________________________________________ Knauf PFT GmbH & Co. KG Telephone +49 (0)9323 / 31-760 PO Box 60 +49 (0)9323 / 31-770... - Page 8 All spare parts must comply with the technical requirements of the manufacturer. This is guarantied for all original PFT parts. Only trained or authorized personnel should operate the machine. Clearly define all lines of responsibility for operation, equipping, service and maintenance.
-
Page 9: Setting Values
Motor protection switch 2.2 kW motor 400 V, 6 A, set permanently The PFT MULTIMIX is fitted with an overload and low voltage circuit breaker. If a fault occurs, the main reversing switch switched to the zero position. Then switch the machine back on. -
Page 10: Measures At The End Of Work
The arms of the turbo mixing unit must turn easily. Transport, maintenance The mixing unit and the material hopper of the PFT MULTIMIX can be removed from the frame with the motor for the transport and maintenance. To do this, unscrew the fixing screw (1) of the mixing unit and pull the unit off the drive shaft. -
Page 11: Circuit Diagram
____________________________________________________________________________________________________________ PFT MULTIMIX Circuit diagram 12/2004 ____________________________________________________________________________________________________________ _______________________________________________________________________________________ Knauf PFT GmbH & Co. KG Telephone +49 (0)9323 / 31-760 PO Box 60 +49 (0)9323 / 31-770 D-97343 Iphofen Internet www.pft.de _______________________________________________________________________________________... -
Page 12: Spare Part Lists
____________________________________________________________________________________________________________ PFT MULTIMIX Spare parts list hopper/frame 12/2004 ____________________________________________________________________________________________________________ _______________________________________________________________________________________ Knauf PFT GmbH & Co. KG Telephone +49 (0)9323 / 31-760 PO Box 60 +49 (0)9323 / 31-770 D-97343 Iphofen Internet www.pft.de _______________________________________________________________________________________... - Page 13 20 20 86 03 Fast catch with cap 20s x N 2 7 20 11 93 50 Spare-wheel 230 x 85 00 00 79 88 MULTIMIX support foot with wheel axle 20 02 70 11 Spring plug 4 mm 00 00 79 85 MULTIMIX mortar outlet flange 20 10 10 10 Splint D 4.5 with ring...
- Page 14 ____________________________________________________________________________________________________________ PFT MULTIMIX Spare parts list motor/mixing unit 12/2004 ____________________________________________________________________________________________________________ _______________________________________________________________________________________ Knauf PFT GmbH & Co. KG Telephone +49 (0)9323 / 31-760 PO Box 60 +49 (0)9323 / 31-770 D-97343 Iphofen Internet www.pft.de _______________________________________________________________________________________...
- Page 15 Item Qty Item no. Article description 00 00 79 95 Cover for mixing unit MULTIMIX RAL2004 20 20 78 09 Hex screw M10 x 55 DIN 931 zinc-pl. 20 20 91 11 Spring washer A 10 DIN 127 zinc-pl. 00 00 79 94 Spacer for cover MULTIMIX RAL 2004...
- Page 16 ____________________________________________________________________________________________________________ PFT MULTIMIX Spare parts list electronics subassembly 12/2004 ____________________________________________________________________________________________________________ _______________________________________________________________________________________ Knauf PFT GmbH & Co. KG Telephone +49 (0)9323 / 31-760 PO Box 60 +49 (0)9323 / 31-770 D-97343 Iphofen Internet www.pft.de _______________________________________________________________________________________...
- Page 17 20 20 64 09 Cylinder head screw M4 x 30 DIN 84 00 00 73 81 MULTIMIX limit switch 00 00 79 87 MULTIMIX limit switch faucet prolongation 20 20 72 00 Nut M8 DIN 985 zinc-pl. 20 20 62 03 Nut M4 DIN 985 zinc-pl.
-
Page 18: Technical Data
Overall length 1000 mm Overall width 1030 mm Overall height 1070 mm Overall weight 143 kg _______________________________________________________________________________________ Knauf PFT GmbH & Co. KG Telephone +49 (0)9323 / 31-760 PO Box 60 +49 (0)9323 / 31-770 D-97343 Iphofen Internet www.pft.de _______________________________________________________________________________________... - Page 20 WE KEEP THINGS MOVING Knauf PFT GmbH & Co. KG PO Box 60 D-97343 Iphofen Einersheimer Strasse 53 D-97346 Iphofen Telephone +49 (0) 93 23/31-760 +49 (0) 93 23/31-770 Email info@pft-iphofen.de Internet www.pft.de...
