Kramer 900XL Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

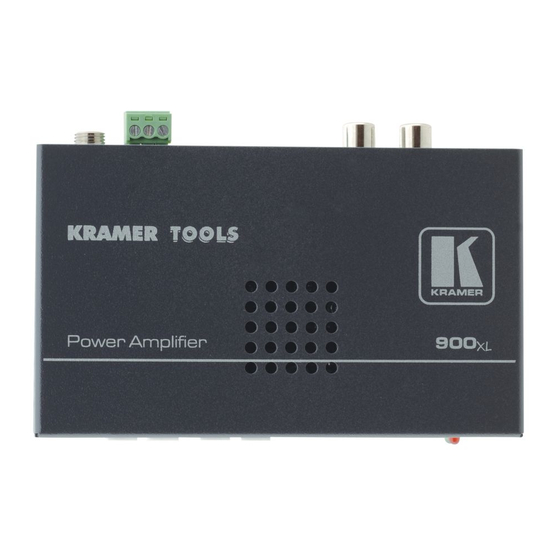

900XL Stereo Power Amplifier
Power adapter (12V DC)

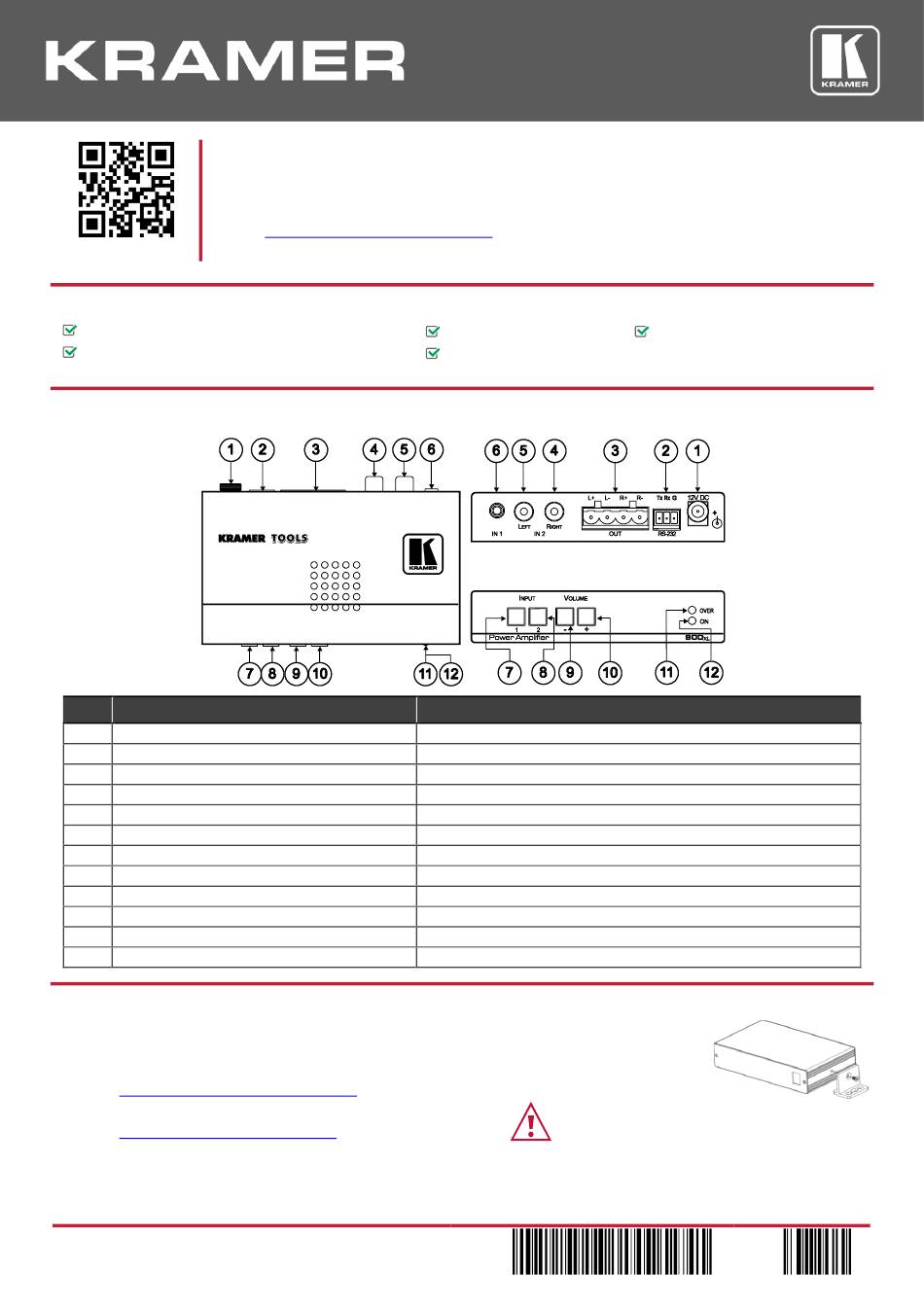

Step 2: Get to know your 900XL

# Feature
1 12V DC Connector
2 RS-232 Tx Rx G Terminal Block Connector
3 L+ L– R+ R– OUT Terminal Block Connector
4 IN 2 RIGHT RCA Connector
5 IN 2 LEFT RCA Connector
6 IN 1 3.5mm Mini-jack Connector
7 INPUT 1 Button
8 INPUT 2 Button
VOLUME – Button
9
10 VOLUME + Button
11 OVER LED
12 ON LED

Step 3: Mount 900XL

Install 900XL using one of the following methods:
•
Attach the rubber feet and place the unit on a flat surface.
•
Fasten a bracket (included) on each side of the unit and attach it to a flat surface
(see www.kramerav.com/downloads/900XL).
•
Mount the unit in a rack using the recommended rack adapter
(see www.kramerav.com/product/900XL).
900XL Quick Start
900XL Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/900XL
upgrades are available.
900XL for the first time.
to download the latest user manual and check if firmware
4 Rubber feet
1 Quick start guide
Function
+12V DC for powering the unit
Connect to PC
Speaker output
Connect to stereo audio right input of source 2
Connect to stereo audio left input of source 2
Connect to stereo audio input of source 1
Selects the input from audio source 1
Selects the input from audio source 2
Decreases output volume
Increases output volume
Illuminates red when device is overheating and mutes output
Illuminates green when receiving power
• Ensure that the environment (e.g., maximum ambient temperature &
air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
P/N: 2 9 0 0 - 3 0 1 2 8 1 QS
1 Bracket set
Rev: 7
