Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: 907xl Power Amplifier/Mixer P/N: 2900-300028 Rev 2... -
Page 3: Table Of Contents
Technical Specifications Figures Figure 1: 907xl Power Amplifier/Mixer Figure 2: Connecting the 907xl Power Amplifier/Mixer Figure 3: Connecting a Balanced Input to the Balanced Stereo Audio Input Figure 4: Connecting an Unbalanced Input to the Balanced Stereo Audio Input 907xl – Contents... -
Page 4: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Video Products; GROUP 12: Digital Signage; and GROUP 13: Audio. Congratulations on purchasing your Kramer 907xl Power Amplifier/Mixer, which is ideal for the following typical applications: ... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer 907xl away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
Overview The 907xl is a high−performance power amplifier for line−level stereo audio signals. It accepts a balanced stereo audio signal on a terminal block connector and an unbalanced stereo signal on RCA connectors. It delivers 40 watts per channel into an 8Ω load. -
Page 8: Figure 1: 907Xl Power Amplifier/Mixer

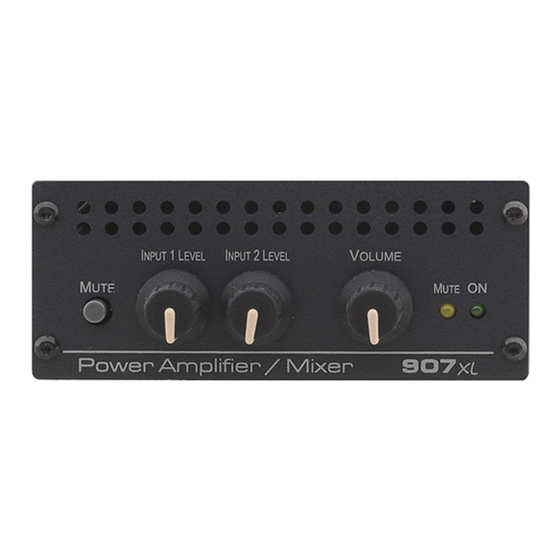

Figure 1: 907xl Power Amplifier/Mixer Feature Function INPUT 1 RCA Connectors Connect to an unbalanced stereo audio source INPUT 2 Terminal Block Connect to a balanced stereo audio source Connector OUTPUT Terminal Block Connect to a balanced stereo acceptor (speakers) -
Page 9: Connecting The 907Xl Power Amplifier/Mixer
Figure Always switch off the power to each device before connecting it to your 907xl. After connecting your 907xl, connect its power and then switch on the power to each device. 1. Connect the unbalanced stereo audio source (for example, a stereo audio player) to the INPUT 1 RCA connectors. -
Page 10: Connecting The Stereo Audio Inputs
Figure 2: Connecting the 907xl Power Amplifier/Mixer Connecting the Stereo Audio Inputs The 907xl has both unbalanced and balanced stereo audio input connectors. Figure 3 Figure 4 illustrate how to wire a balanced/unbalanced to the balanced audio input connection: Figure 3: Connecting a... -
Page 11: Technical Specifications
DIMENSIONS 10.7cm x 10.4cm x 4.0cm (4.2" x 4.1" x 1.6") W, D, H WEIGHT: 0.32kg (0.7lbs) INCLUDED ACCESSORIES: Power supply RK-1 19” rack mount adapter OPTIONS: Specifications are subject to change without notice at http://www.kramerelectronics.com 907xl - Technical Specifications... - Page 13 For the latest information on our products and a list of Kramer distributors, visit our Web site where you can find updates to this user manual. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
