Summary of Contents for Kramer 903
-

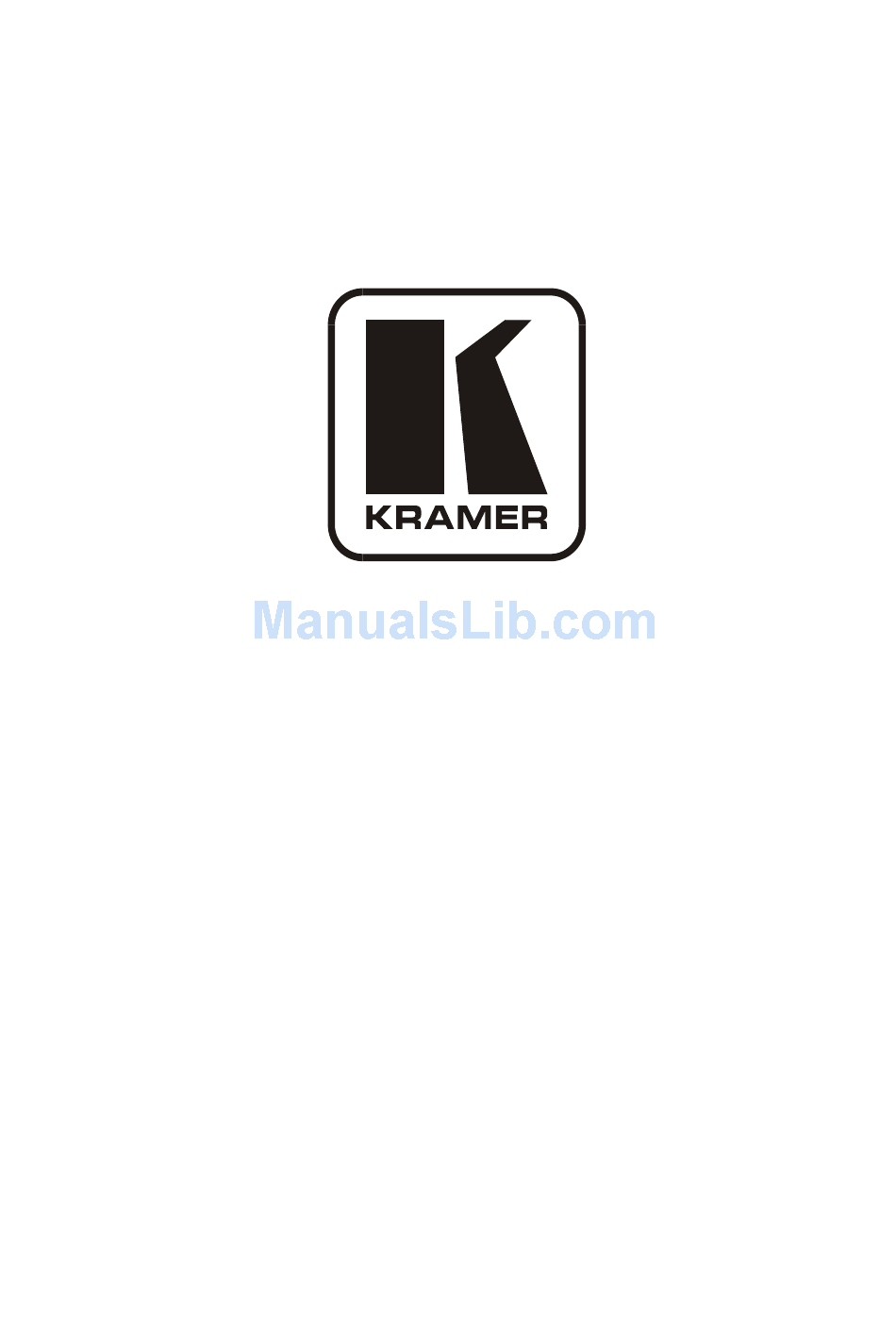

Page 1: User Manual
Kramer Electronics, Ltd. Preliminary USER MANUAL Model: Personal Stereo Amplifier... -
Page 2: Table Of Contents
Figure 1: 903 Personal Stereo Amplifier Figure 2: Connecting the 903 Personal Stereo Amplifier Figure 3: 903 Controls Tables Table 1: Features and Functions of the 903 Personal Stereo Amplifier Table 2: Technical Specifications of the 903 Personal Stereo Amplifier... -
Page 3: Introduction
Introduction Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have... -
Page 4: Quick Start
Getting Started Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
Avoid interference from neighboring electrical appliances that may adversely influence signal quality and position your Kramer 903 away from moisture, excessive sunlight and dust 1 This prevents the 903 from over-heating. The 903 can generate its maximum power output from a 12V power supply... -
Page 6: Your 903 Personal Stereo Amplifier

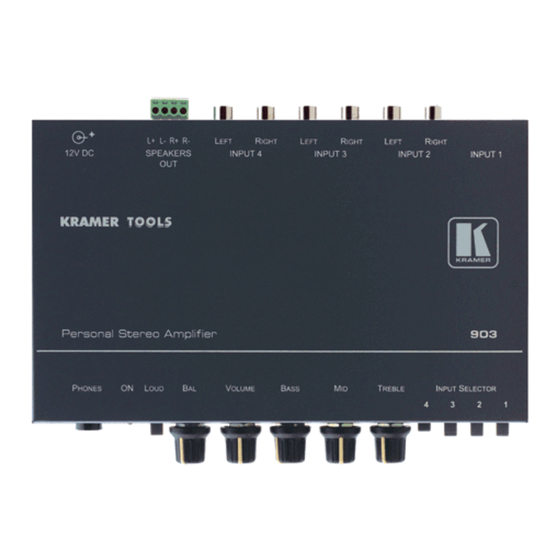

Your 903 Personal Stereo Amplifier Your 903 Personal Stereo Amplifier Figure 1 Table 1 define the 903 Personal Stereo Amplifier: Figure 1: 903 Personal Stereo Amplifier KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 7: Connecting The 903 Personal Stereo Amplifier
Connecting the 903 Personal Stereo Amplifier Table 1: Features and Functions of the 903 Personal Stereo Amplifier Feature Function INPUT 1 3.5mm Mini Jack Connects to an interface with a sound card or other player INPUT 2 (Right) RCA Connector... -
Page 8: Operating The 903 Personal Stereo Amplifier
Operating the 903 Personal Stereo Amplifier Figure 2: Connecting the 903 Personal Stereo Amplifier Operating the 903 Personal Stereo Amplifier To operate your 903, as Figure 3 illustrates: 1. Choose the active audio source by pressing an INPUT SELECTOR button. -
Page 9: Technical Specifications
Technical Specifications Technical Specifications Table 2: Technical Specifications of the 903 Personal Stereo Amplifier INPUTS: 1 unbalanced stereo audio 1Vpp/50kΩ on a 3.5mm mini jack; 3 unbalanced stereo audio 1Vpp/50kΩ on RCA connectors OUTPUTS: Stereo headphone on a 6.5mm connector; loudspeakers on a terminal block connector;... - Page 10 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 11 Safety Warning: Disconnect the unit from the power supply before opening/servicing. Caution...
