Summary of Contents for Kramer 901
-
Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: Personal Stereo Amplifier P/N: 2900-006013 Rev 3... -
Page 3: Table Of Contents
Achieving the Best Performance Safety Instructions Recycling Kramer Products Overview Defining the 901 Personal Stereo Amplifier Connecting and Operating the 901 Technical Specifications Figures Figure 1: 901 Personal Stereo Amplifier Figure 2: Connecting the 901 Personal Stereo Amplifier 901 – Contents... -
Page 4: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products. Congratulations on purchasing your Kramer 901 Personal Stereo Amplifier, which is ideal for the following typical applications: ... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer 901 away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview

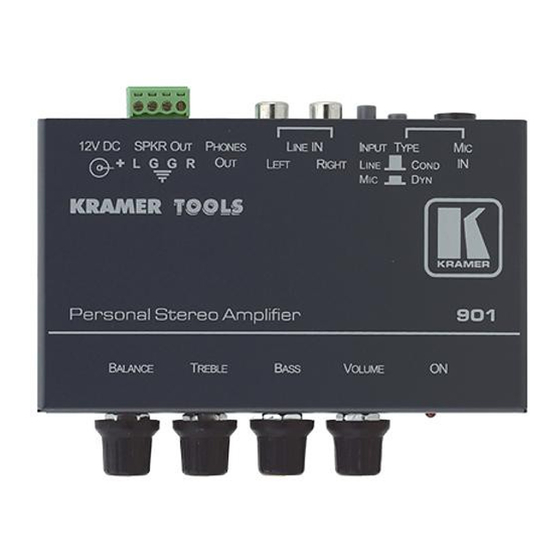

Overview The 901 is a high−performance integrated personal stereo amplifier for unbalanced stereo signals. It accepts a stereo audio signal and delivers a speaker output of two watts RMS power per channel into a 4Ω load. The 901 features: ... - Page 8 Connects to the left stereo audio line level input Phones Out connector Connects to the headphone set SPKR Out (LGGR) Terminal Block Connect to the pair of loudspeakers Connectors 12V DC +12V DC connector for powering the unit 901 - Overview...
-
Page 9: Connecting And Operating The 901
Connecting and Operating the 901 Always switch off the power to each device before connecting it to your 901. After connecting your 901, connect its power and then switch on the power to each device. To connect the 901 as illustrated in the example in Figure 1. -
Page 10: Figure 2: Connecting The 901 Personal Stereo Amplifier
Release the Input Line/Mic selector switch to choose the Line IN input 2. Adjust the volume, bass, treble and balance controls as required. Figure 2: Connecting the 901 Personal Stereo Amplifier 901 - Connecting and Operating the 901... -
Page 11: Technical Specifications
12cm x 7.5cm x 2.5 cm (4.7” x 2.95” x 0.98”) W, D, H DIMENSIONS: WEIGHT: 0.3kg (0.66lbs) approx.. ACCESSORIES: Power supply, mounting bracket RK−3T 19" rack adapter OPTIONS: Specifications are subject to change without notice at http://www.kramerelectronics.com 901 - Technical Specifications... - Page 13 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
