Page 1: User Manual
KR AMER ELECTRON ICS LT D. USER MANUAL MODEL: 907xl Power Amplifier/Mixer P/N: 2900-300028 Rev 1... -
Page 3: Table Of Contents
Technical Specifications Figures Figure 1: 907xl Power Amplifier/Mixer Figure 2: Connecting the 907xl Power Amplifier/Mixer Figure 3: Connecting the Balanced Stereo Audio Input Figure 4: Connecting the Unbalanced Stereo Audio Input 907xl – Contents... -
Page 4: Introduction
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products. Congratulations on purchasing your Kramer 907xl Power Amplifier/Mixer, which is ideal for the following typical applications: •... -
Page 5: Getting Started
(often associated with low quality cables) • Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer 907xl away from moisture, excessive sunlight and dust 907xl - Getting Started... -
Page 6: Overview
Overview The Kramer MultiTOOLS™ 907xl is a high-performance, 40W RMS per channel, Class D power amplifier/mixer for line-level stereo audio signals. It accepts a balanced stereo audio signal on a terminal block connector. It delivers 150 watts per channel of music output to the speakers. -

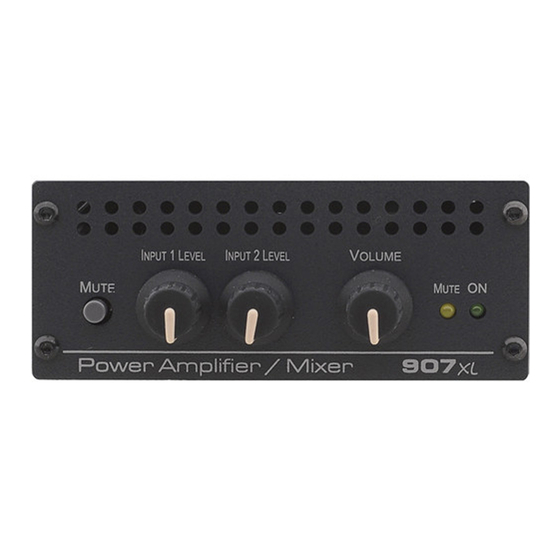

Page 7: Figure 1: 907Xl Power Amplifier/Mixer
Figure 1: 907xl Power Amplifier/Mixer Feature Function INPUT 1 RCA Connectors Connect to an unbalanced stereo audio source INPUT 2 Terminal Block Connect to a balanced stereo audio source Connector OUTPUT Terminal Block Connect to a balanced stereo acceptor (speakers) -
Page 8: Connecting The 907Xl Power Amplifier/Mixer
Figure Always switch off the power to each device before connecting it to your 907xl. After connecting your 907xl, connect its power and then switch on the power to each device. 1. Connect the unbalanced stereo audio source (for example, a stereo audio player) to the INPUT 1 RCA connectors. -
Page 9: Connecting The Stereo Audio Input
Figure 2: Connecting the 907xl Power Amplifier/Mixer Connecting the Stereo Audio Input Figure 3 Figure 4 illustrate how to wire a balanced/unbalanced input connection: Figure 3: Connecting the Figure 4: Connecting the Balanced Stereo Audio Input Unbalanced Stereo Audio Input... -
Page 10: Technical Specifications
10% to 90%, RHL non-condensing DIMENSIONS 10.7cm x 10.4cm x 4.0cm (4.2" x 4.1" x 1.6") W, D, H WEIGHT: 0.32kg (0.7lbs) ACCESSORIES: Power supply OPTIONS: RK-1 19” rack mount adapter Specifications are subject to change without notice at http://www.kramerelectronics.com 907xl - Technical Specifications... - Page 11 1. Any product which is not distributed by us or which is not purchased from an authorized Kramer dealer. If you are uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site www.kramerelectronics.com.
- Page 12 " " P/N: 2900- 300028 Rev: 1...
