READ PRIOR TO INSTALLATION

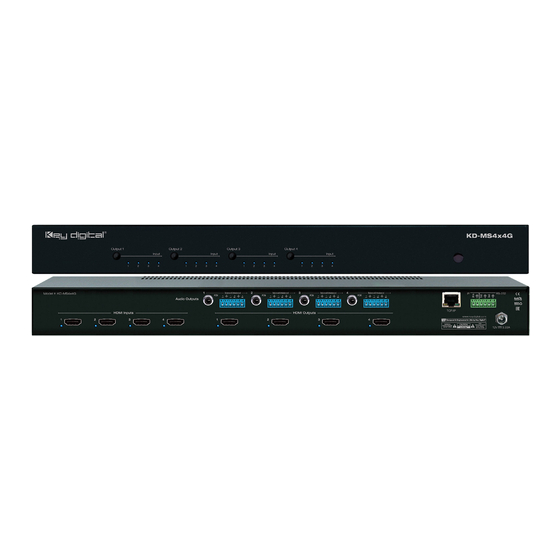

KD-MS4x4G / KD-MS8x8G
4x4/8x8 4K/18G HDMI Matrix Switchers with Independent
Audio Switching, Balanced/Unbalanced Audio,
Audio De-embedding of Analog L/R/PCM
QUICK SETUP GUIDE
Begin with the KD-MS4x4G/KD-MS8x8G unit and all input/output devices turned off.
1
1. Connect HDMI sources to the input ports of KD-MS4x4G/KD-MS8x8G unit
1
1
2. Connect HDMI displays to the output ports of KD-MS4x4G/KD-MS8x8G unit
3
3
3
3. Connect the analog audio outputs to amplifiers/receivers via the analog 6-pin phoenix terminals
4. Connect the digital audio outputs to amplifiers/receivers via the PCM outputs
5. Connect control system and/or PC to TCP/IP, RS-232, Serial IR port or IR sensor
6. Screw-in the power supply to the KD-MS4x4G/KD-MS8x8G, then, plug-in to power outlet
7. Power on input/output devices
CONNECT
2
2
2
4
4
4
5
5
5
© 2018 Key Digital, Inc. All rights reserved.
6
6
6
