600 Series Pocket Meter
Features
■
Low cost, multi-function
■ Convenient pocket size
■
Built-in test stand
■ Overload protection on
all ranges
■ 2-year warranty
310 Series Digital Meters
Features
■ AC/DC voltage
■
Current
■ Resistance
■
Audible continuity
■ Temperature
■
Data hold
■ Diode test
■
Large numbers displayed
■ Overload protection on
all ranges
■ Rubber boot
■
2-year warranty
310 Series Specifications
RANGE &
RESOLUTION
DC VOLTAGE 200.0m/2.000/20.00/200.0/600 VDC
AC VOLTAGE 200.0/600 VAC
CURRENT 200.0m/10 ADC
RESISTANCE 200.0/2.00k/20.00k/200.0k/20M
CAPACITANCE
FREQUENCY
TEMPERATURE -4-1382°F (-20-750°C)
1-800-435-0705 for Customer Service
600 V
61-310
ACCURACY
0.8% 400.0m/4.000/40.00/400.0/600 VDC
1.2%
1.5% 400.0µ/4000µ/40.00m/400.0m/10A AC/DC
1.0% 400.0/4.000k/40.00k/400.0k/4.000M/40.00M Ω
— 3.0% 40.00n/400.0n/4.000µ/40.00µ/400.0µ F
— 3.0% 10.00/100.0/1.000k/10.00k/1.000M/10.00M Hz
1.0%
Test and Measurement
61-605
Audible continuity,
auto power off, test
lead storage

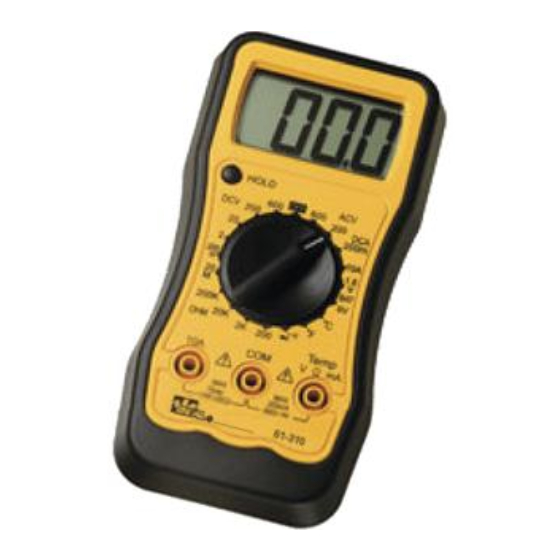

61-310
Manual ranging, tests
batteries, DC current
61-312
Auto ranging, AC/DC
current, capacitance,
frequency, auto power
off, low battery indication
61-312 & 61-314
RANGE &
ACCURACY
RESOLUTION
0.8%
4.000/40.00/400.0/600 VAC 1.2%
1.5%
1.0%
3.0%
3.0%
-4-1382°F (-20-750°C) 1.0%
300
V
61-314
Auto ranging, true RMS,
AC/DC current,
capacitance, frequency,
auto power off, low
battery indication
61-605
RANGE &
ACCURACY
RESOLUTION
200.0m/2.000/20.00/200.0/600 V 2.0%
200.0m/2.000/20.00/200.0/600V 4.0%
— —
200.0/2.000k/20.00k/200.0k/
3.0%
2.000M/20.00MΩ
— —
— —
— —
www.idealindustries.com
N12966
