wArnInG
!
The machine is heavy, few
people are required to unpack.
Use hand truck to move it.
Carefully remove the machine, components and tools from
the shipping carton. Check for damaged or missing items
as per list below.
Please report any damaged or missing part to your
steel City dealer immediately.
1.
12.
16.
17.
18.

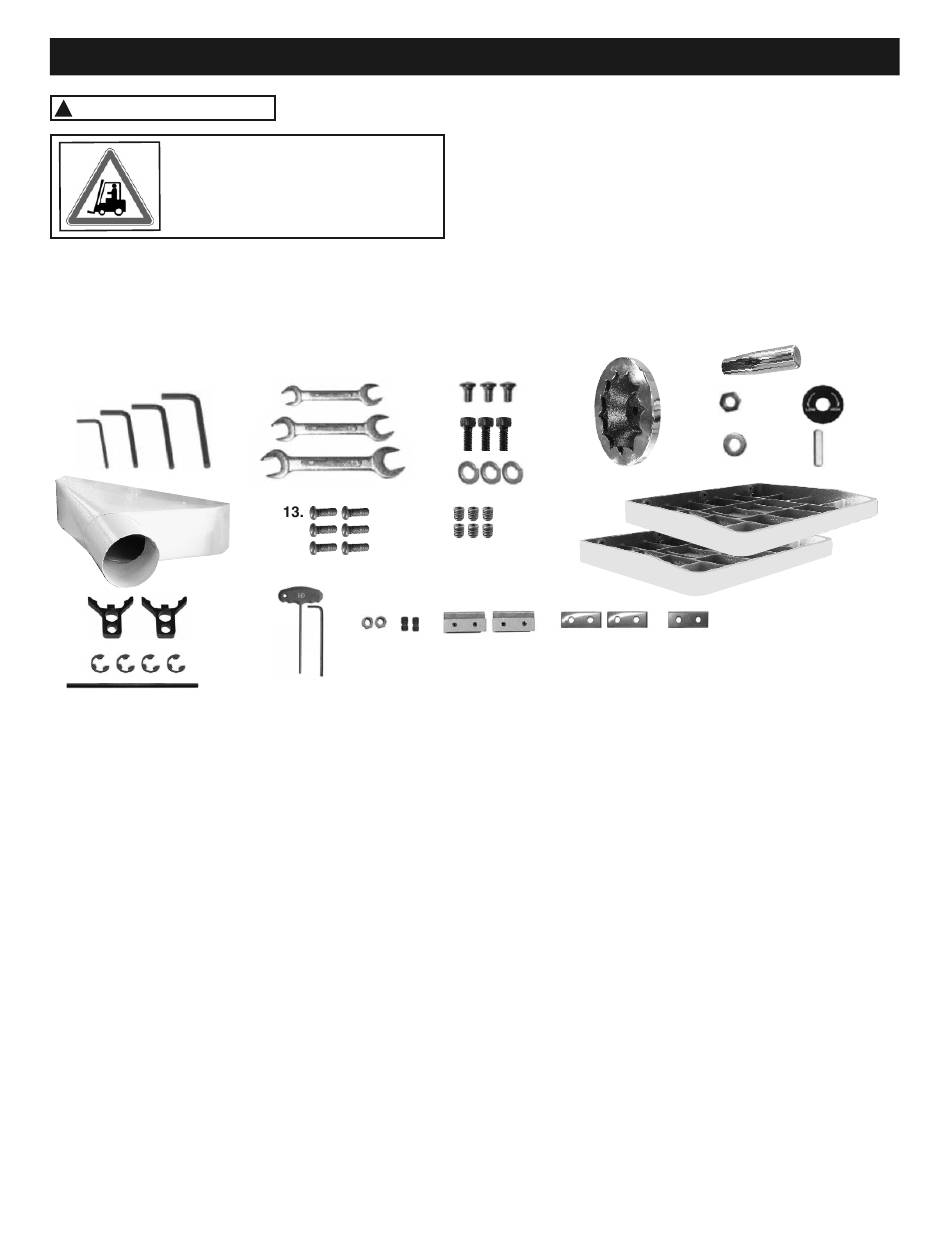

UnPACKInG & InVenTorY
2.
19.
21.
22.
20.
1. Allen wrench (3, 4, 5 and 6 mm)
2. Combination wrench (8-10 mm, 12-14 mm and 17-19 mm)
3. M5 hex head bolt
4. M6 cap screw
5. Lock washer
6. Handwheel
7. Handle
8. Direction label
9. Nut
10. Washer
11. Key
12. Dust chute
13. M8 hex head bolt
14. M8 set screw
15. Extension table
Knife setting gauge
16. «C» clip
17. Knife setting jig foot pad
18. Knife setting jig bar
Tools/replacement parts
19. 5 mm«T» Allen key
20. 5 mm Allen key
21. Nut
22. Screw
23. Knife-holder / chipbreaker
24. Carbide insert (standard)
25. Carbide insert (for rabbeting)
◊ CLeAnInG CoMPonenTs
Bare metal surfaces have been coated by a rust
prevention compound at the factory. Protected surfaces
must be cleaned prior to assembly and installation.
Use appropriate cleaner and follow relevant safety
measures.
6.
3.
4.
5.
15.
14.
24.
23.
Page 8
7.
8.
9.
11.
10.
25.
1
1
3
3
3
1
1
1
1
1
1
1
6
6
2
2
4
1
1
1
2
2
2
2
1
