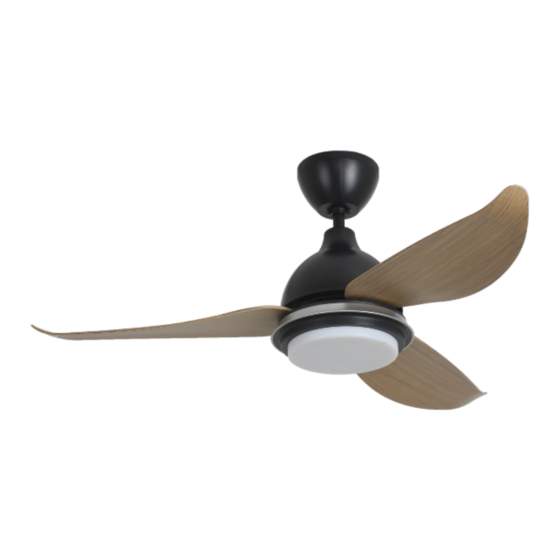

- Page 1 43” 56” GAVIA SERIES USER MANUAL / PANDUAN PENGGUNA / 用户手册 RCF-GAVIA43-3BL MODEL / MODEL / 型号 RCF-GAVIA56-3BL CEILING FAN / KIPAS SILING / 吊扇...
- Page 2 SUPPLIED PARTS / BAHAGIA YANG DIBEKALKAN / 提供零件 WARNING TO ENSURE YOUR PERSONAL SAFETY, PLEASE READ THROUGH THE INSTRUCTION MANUAL BEFORE OPERATING THE PRODUCT. Do not bend the blade during installation, blades balancing or fan cleaning. To prevent accidents, power switch must be OFF and electrical wiring must be disconnected before ceiling fan installation, dismantling, maintenance or cleaning.
- Page 3 INSTALLATION PROCEDURES / TATACARA PEMASANGAN /安装步骤 SAFETY GUIDELINES Step 1 (See Diagram 1) Please do not install the ceiling fan at high humidity areas. Distance between fan blades and ground must be at least 2.5 meter and above. Remove the bolt at the rubber wheel before installation. Do not touch the ceiling fan while it is operating.
- Page 4 Step 3 （Safety Cable Installation) Step 4 (See Diagram 4) – Electrical Wiring Connection Turn off the power supply before installing the ceiling fan. Remove the safety cable screw from the hanging tube coupling plat. (Diagram 1) Use the two pieces of “lead wire connector” from the screw pack and connect them to the fan motor’s Arrange the safety cable as above diagram 2 shown.
- Page 5 Step 7 (See Diagram 7) – Installation of Light LED Step 6 (See Diagram 6) – Blades Installation Connect wire socket follow the BLACK wire from motor to BLACK wire from LED light kit. Use the fan blade’s screw through the flat washer, and then install the fan blades to Connect wire socket follow the BLUE wire from motor to BLUE wire from LED light kit.
- Page 6 T R O U B L E S H O O T I N G / P E N Y E L E S A I A N M A S A L A H / 故 障 排 除 IMPORTANT / PERKARA PENTING / 重要事项...
