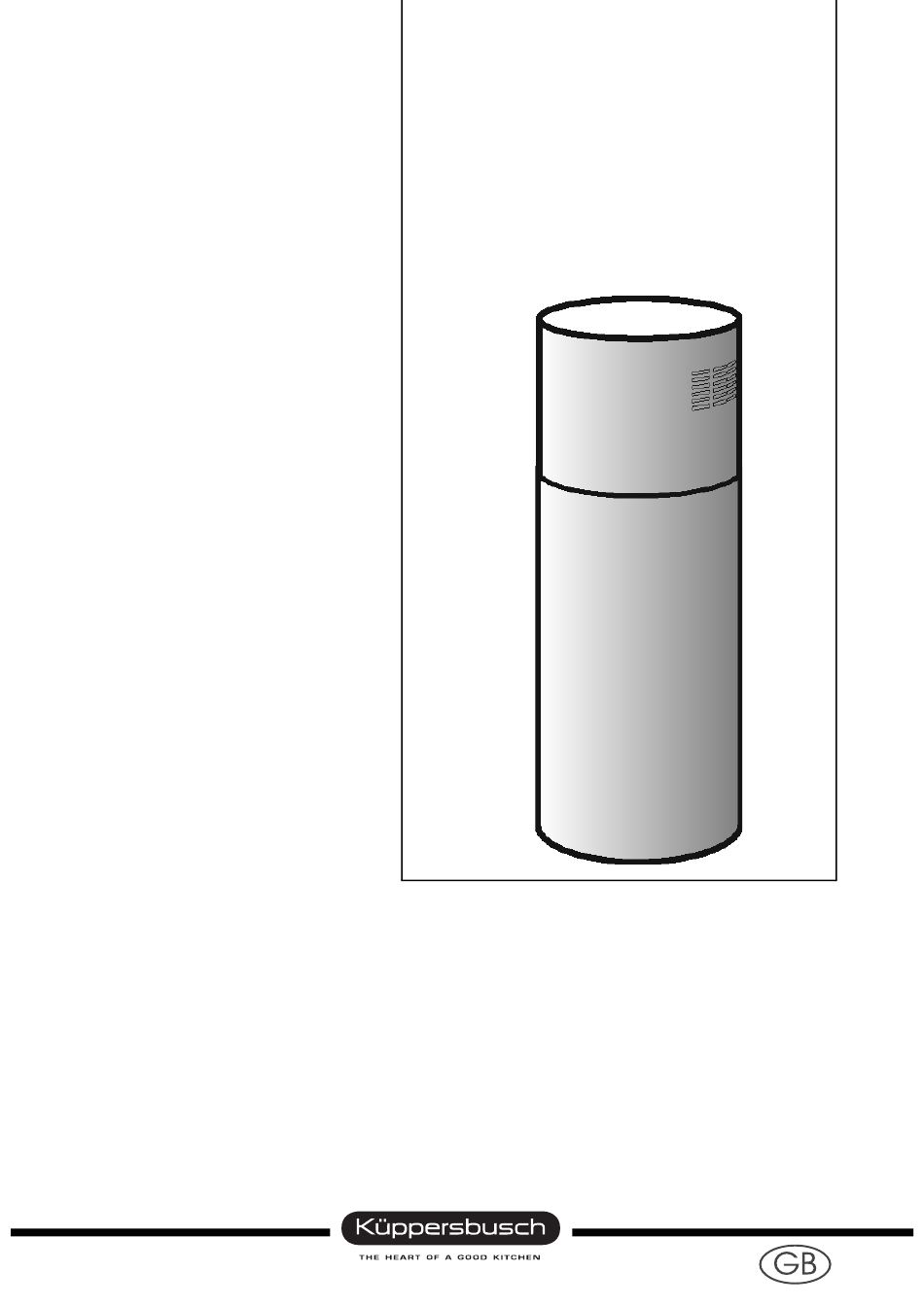

  • Page 1 Cooker hood IKD 3700.0...
  • Page 2 Service Manual: H5-76-03 Responsible: U. Laarmann KÜPPERSBUSCH HAUSGERÄTE AG E-mail: uwe.laarmann@kueppersbusch.de Phone: (0209) 401-732 Kundendienst Fax: (0209) 401-743 Postfach 100 132 Date: 12.10.2007 45801 Gelsenkirchen...
  • Page 3: Table Of Contents

    Service Manual Contents Safety ..........................4 General Information ....................... 5 Dimensions ........................6 Mounting holes ....................... 7 Screw specification ......................8 Buttons and functions ....................9 Buttons ........................9 Functions......................10 Procedure for repairs ....................11 Changing the halogen lamp ................12 Replacing the entire lamp block ................
  • Page 4: Safety

    Service Manual Safety Danger! Repairs may only be carried out by a qualified electrician! Improper repairs can be extremely dangerous for the user. It is essential that you observe the following instructions in order to prevent electric shocks: • The casing and the frame may be live in the event of faults! •...
  • Page 5: General Information

    Service Manual General Information A clearance of at least 30 cm must be maintained between the pan support area on the hob and the bottom of the cooker hood. If the instructions for installation of the hob specify a larger clearance, this is to be maintained.
  • Page 6: Dimensions

    Service Manual Dimensions Extraction mode Recirculation mode Grease filter Charcoal filter ZUB 839 Baffle plate Diverting flange Reduction piece Flange For internal use only...
  • Page 7: Mounting Holes

    Service Manual Mounting holes Use the template supplied in the bag of accessories for making holes in the ceiling. Lay the drilling tem- plate on the ceiling as a vertical extension of the hob and drill the holes. Ø 160 mm hole is only used for the extraction model. The Ø...
  • Page 8: Screw Specification

    Service Manual Screw specification Screws for fastening the panel onto the ceiling 4.8 x 38 mm. Screw for fastening the deflector 3.9 x 9.5 mm. Screw for fastening the decorative pipe 3.9 x 9.5 mm, stainless steel. For internal use only...
  • Page 9: Buttons And Functions

    Service Manual Buttons and functions The extractor hood is equipped with a fully automatic system for administrating all of the available func- tions (Advanced Sensor Control). The air in the kitchen stays pleasant and fresh without requiring any manual controls. The sensitive sensors detect any type of steam, vapours, odours and GAS and auto- matically adjust the hood to the required fan power.
  • Page 10: Functions

    Service Manual Functions Filter alarm Is shown for 30 sec. when the motor is switched off: After an operation period of 30 hours the middle segment on the display will light up to indicate that the anti-grease filter needs to be cleaned. After an operation period of 120 hours the middle segment on the display will blink to indicate that the grease filter needs to be cleaned and that the charcoal filter needs to be replaced.
  • Page 11: Procedure For Repairs

    Service Manual Procedure for repairs We recommend that you follow this procedure: Inspection of the product and assessment of its installation. Determine the problem and replace faulty parts if necessary. Carry out a function test to assess that the corrective action was carried out properly. First steps •...
  • Page 12: Changing The Halogen Lamp

    Service Manual Changing the halogen lamp If the lighting does not work the lamps will firstly need to be checked and you will need to make sure that the control switch on the control panel of the hood has not developed a fault. The hood must be disconnected from the mains power supply before it is cleaned or be- fore any maintenance work is carried out.
  • Page 13: Accessing The Connection Box

    Service Manual Accessing the connection box The hood must be disconnected from the mains power supply before it is cleaned or before any maintenance work is carried out. Remove the connections of the two lamps. Fig. 4 Press the two clips on the side and take out the lamp block.
  • Page 14: Removing The Electrical Components

    Service Manual Removing the electrical components The hood must be disconnected from the mains power supply before it is cleaned or before any maintenance work is carried out. The electric components are mounted on a metal plate which is located on the inside of the hood. Remove the connections of the two lamps (Fig.
  • Page 15: Removing The Motor Block

    Service Manual Removing the motor block The hood must be disconnected from the mains power supply before it is cleaned or before any maintenance work is carried out. Remove the connections of the two lamps (Fig. 2). Fig. 10 Press the two clips on the side and take out the lamp block (Fig.
  • Page 16: Technical Data

    Service Manual Technical data Voltage/frequency 220-240 V / 50 Hz Appliance dimensions (WxDxH) Ø 320 x 780(min)/1170(max)) Electrical connection 250 W Halogen lighting 2 x 20 W Air rate Level 1 300 m³/h Level 2 440 m³/h Level 3 645 m³/h Pressure Level 1 340 Pa...
  • Page 17: Faults And The Cause

    Faults and the cause Attention! Repairs may only be carried out by qualified electricians or specialists! Problem Probable cause Solution The cooker hood does not work. The power cable has not been connected to a live • Check to ensure that the cable has been prop- socket.
  • Page 18: Circuit Diagram

    Circuit diagram...
