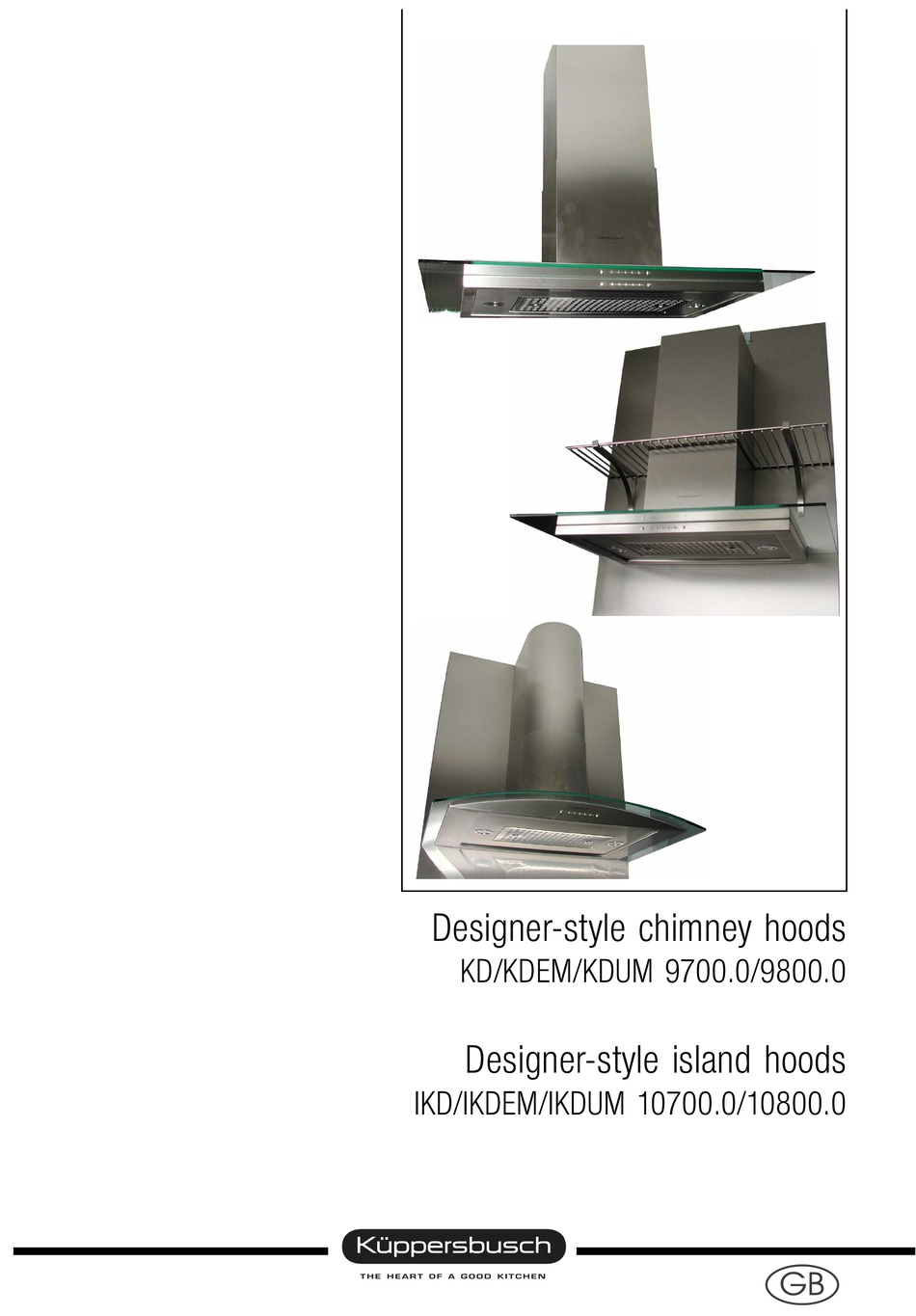

- Page 1 \}‹†}ŠD‹Œ‘„} {€…†}‘ €‡‡|‹ c\Gc\]eGc\me QOHHFHGQPHHFH \}‹†}ŠD‹Œ‘„} ‹„y†| €‡‡|‹ ac\Gac\]eGac\me IHOHHFHGIHPHHFH...
- Page 2 Service Manual: H5-60-69-01 Responsible: U. Laarmann KÜPPERSBUSCH HAUSGERÄTE AG Email: uwe.laarmann@kueppersbusch.de Tel.: (0209) 401-732 Kundendienst Fax: (0209) 401-743 Postfach 100 132 Date: 31.10.2003 45801 Gelsenkirchen...
-
Page 3: Table Of Contents
H5-60-69-01 Contents Safety..........................4 General technical information..................5 Mounting instructions ....................6 IKD ..., IKDEM ..., IKDUM ..................6 KD ..., KDEM ..., KDUM ..................8 Accessing the components ..................10 IKD ..., IKDEM ..., IKDUM .................. 10 KD ..., KDEM ..., KDUM ... -
Page 4: Safety
H5-60-69-01 Safety Danger! Repairs may only be carried out by a qualified electrician! Inexpert repairs may lead to risks and damages for the user! To prevent electric shocks, please observe the following tips: • In the event of faults, housing and frame may be live! •... -
Page 5: General Technical Information
H5-60-69-01 General technical information On installing the cooker hood, the following points are to be observed in addition to currently-valid safety instructions and the respective instructions of your country: The cooker hood must always be installed above the centre of the hob. The clearance may not be smaller than that stipulated for instalment. -
Page 6: Mounting Instructions
H5-60-69-01 Mounting instructions IKD ..., IKDEM ..., IKDUM ... For internal use only... - Page 7 H5-60-69-01 For internal use only...
- Page 8 H5-60-69-01 KD ..., KDEM ..., KDUM ... For internal use only...
- Page 9 H5-60-69-01 For internal use only...
-
Page 10: Accessing The Components
H5-60-69-01 Accessing the components IKD ..., IKDEM ..., IKDUM ... 4.1.1 Operating element In order to remove the operating element, remove the grease filter (see “6. Grease filter” on page 16). Remove the two screws by inserting a mandrel into the round opening on the side of the screws. Do not use flat pliers to loosen the screws! The casing and the screws may be scratched! Once the screws have been loosened, the operating element can be removed towards the back, above the grease filter. - Page 11 H5-60-69-01 4.1.2 Motor In order to remove the motor push the lower chimney upwards and secure it so that it cannot fall down. Loosen the cable connections (mains lead and also, in the case of the IKDEM ... the cable connection to the external motor), and loosen the exhaust air duct.
- Page 12 H5-60-69-01 4.1.4 Glass canopy In the case of cooker hood designs IKD 10700.0 GE, IKDEM 10700.0 GE and IKDUM 10700.0 GE, it is not possible to replace the canopy itself. Only the bottom part as a whole unit can be replaced. It is only possible to replace the glass canopy in the case of models IKD 10800.0 GE, IKDEM 10800.0 GE and IKDUM 10800.0 GE.
- Page 13 H5-60-69-01 4.1.5 Halogen lighting In order to replace the halogen lamps (2x 20 W, Type G4), clip out the glass cover with a screw driver and remove the halogen lamp from the plug base. Use a cloth to insert the new halogen lamp. Do not touch the lamps with your fingers! Finally, replace the glass cover.
- Page 14 H5-60-69-01 KD ..., KDEM ..., KDUM ... 4.2.1 Control panel See 4.1.1. 4.2.2 Motor Remove the lower chimney and the upper chimney in order to dismount the motor. Then remove the exhaust air duct from the motor connecting piece. Now loosen the fastening screws and take the cooker hood off the wall. Once the cooker hood has been dismounted, loosen the motor screws and remove the motor.
- Page 15 4.2.4 Glass canopy In the case of cooker hood lines KD 9700.0 GE, KDUM 9700.0 GE and KDEM 9700.0 GE, it is not possible to replace the canopy itself. Only the bottom part as a whole unit can be replaced.
-
Page 16: Charcoal Filter
H5-60-69-01 Charcoal filter Remove the grease filter and the charcoal filter in order to replace the charcoal filter (charcoal filter mat). In the case of the IKDUM 10700.0 GE and KDUM 9700.0 GE, the charcoal filter holder must be unlocked once the grease filter has been removed. Grease filter In order to remove the grease filter, pull it downwards. -
Page 17: Operating Unit
H5-60-69-01 Operating unit There is a choice of 4 power settings. The buttons 1, 2, 3 and Int. are used to set the required power level. = low motor speed = medium motor speed = high motor speed Int. = intensive power setting On switching on the fan with buttons 1, 2 or 3, the respective button will light up orange. -
Page 18: Technical Data And Circuit Diagrams
Min. setting: 44 dB (A) Max. setting: 59 dB (A) Int. setting: 65 dB (A) KD 9700.0 / IKD 10700.0 Min. setting: 40 / 42 dB (A) Max. setting: 53 / 53 dB (A) Int. setting: 60 / 59 dB (A) At present there is no standard gauging procedure for this data! These figures are only to be used as reference values for measuring the noise level. -
Page 19: Wiring Plans
H5-60-69-01 Wiring plans For internal use only... - Page 20 H5-60-69-01 For internal use only...
-
Page 21: Finding Faults
H5-60-69-01 Finding faults Light does not work Ö Halogen lamp defect Replace the lamp Ö Remove the halogen lamp Check the connections Ö Relay does not activate Replace the control unit Ö Relay activates Replace the magnetic core transformer Hood does not work Ö... -
Page 22: Air Extraction Rate, Db Data In Accordance With En
H5-60-69-01 Air extraction rate, dB data in accordance with EN Model Power consumption Volume flow Sound intensity level in watts in m³/h in db (A) IKD 10700.0GE High-power setting Max. standard level Min. standard level IKDUM 10700.0GE High-power setting Max. standard level Min. - Page 23 H5-60-69-01 Model Power consumption Volume flow Sound intensity level in watts in m³/h in db (A) IKDUM 10800.0GE High-power setting Max. standard level Min. standard level KD 9800.0GE High-power setting Max. standard level Min. standard level KDUM 9800.0GE High-power setting Max.
