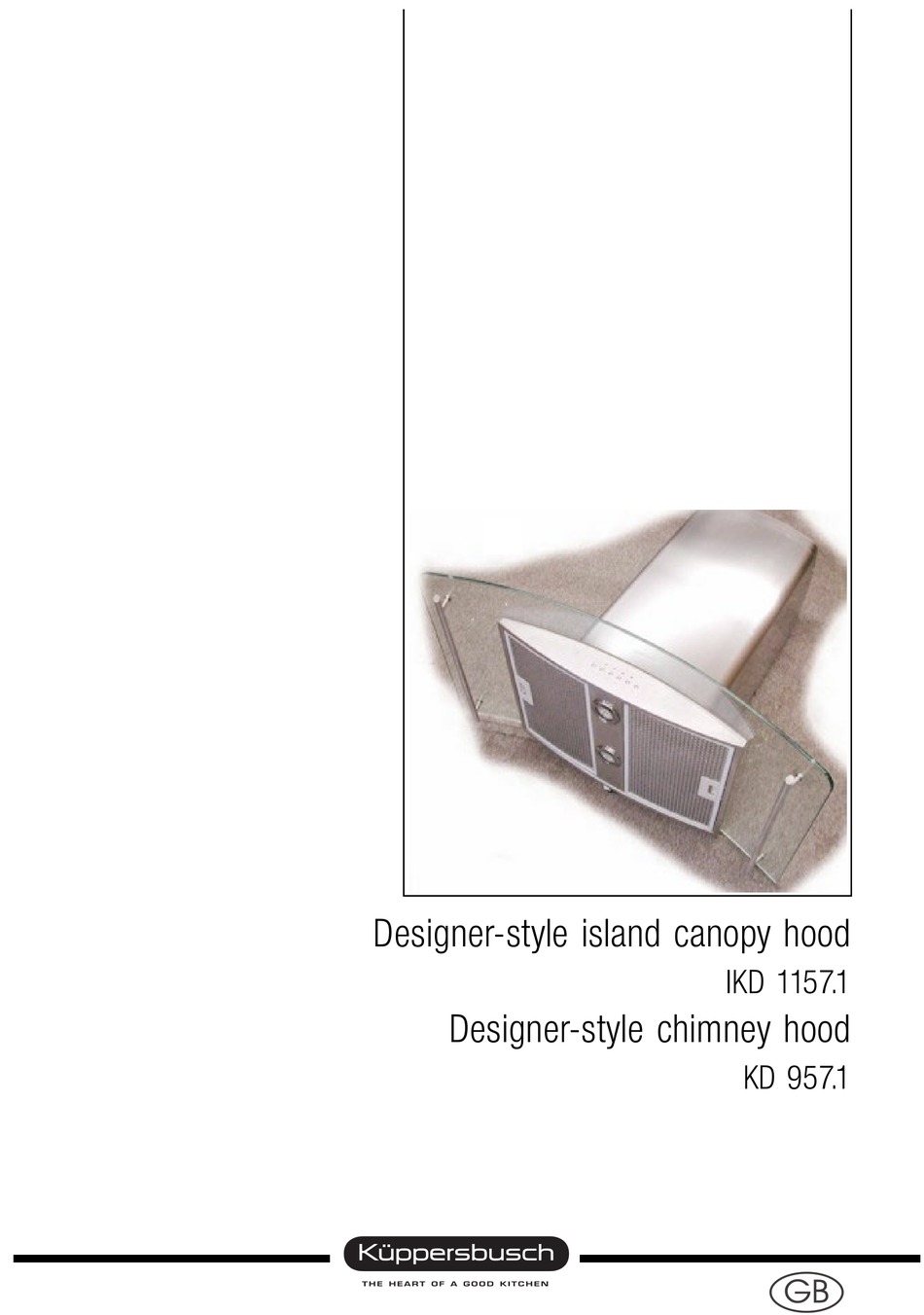

- Page 1 \}‹†}ŠD‹Œ‘„} ‹„y†| {y†‡ˆ‘ €‡‡| ac\ IIMOFI \}‹†}ŠD‹Œ‘„} {€…†}‘ €‡‡| c\ QMOFI...
- Page 2 Service Manual: H5-60-77-01 Responsible: Uwe Laarmann KÜPPERSBUSCH HAUSGERÄTE AG email: uwe.laarmann@kueppersbusch.de Tel.: (0209) 401-732 Kundendienst Fax: (0209) 401-743 Postfach 100 132 Date: 23.05.2003 45801 Gelsenkirchen...
-
Page 3: Table Of Contents
Accessing the mains supply, transformer and electronics unit......10 Demounting the motor and the fan wheel from the KD 957.1 ......11 Demounting the motor and the fan wheel of the IKD 1157.1 ......12 10. Technical data ......................13 11. -
Page 4: General Notes
The minimum distance between the edge of the hood (IKD 1157.1 / KD 957.1) and the cooker must be at least 650 mm for gas cookers and at least 500 mm for electric cookers. -
Page 5: Lighting
H5-60-53-01 Lighting The lighting can be used at any time even when the fan is switched off. Metal grease filters Both grease filters are dismantled by pressing the respective lock downwards. Charcoal filter For the recirculating air mode you need two activated charcoal filters. -
Page 6: Dismantling And Installation Of The Activated Charcoal Filters
H5-60-53-01 Dismantling and installation of the activated charcoal filters After dismantling the grease filters attach the active charcoal filters to the aspiration hole of the motor. To do so, adjust the Bayonett fitting on the motor casing and turn the filters in order to fasten them as shown in the illustration. -
Page 7: Electrical Functional Components
Electrical functional components Electronics Capacitor Mains connector socket Holder electric system Transformer 230V /12V... - Page 8 Conductor insert white (empty) black orange blue (empty) brown Connector...
-
Page 9: Accessing Components
H5-60-53-01 Accessing components Replacing the halogen lighting and the lamp body Remove part (A) by turning it as shown in the illustration. Remove the lamp (B) from its mounting support. On installing a new halogen lamp, do not touch the glass bulb with your bare hands. -
Page 10: Demounting The Switch Unit
H5-60-53-01 Demounting the switch unit If you loosen the two front metal screws in the bar (C) you will be able to remove the switch unit on the side above the bar. Accessing the mains supply, transformer and electronics unit Once the lower chimney has been removed all three components are accessible. -
Page 11: Demounting The Motor And The Fan Wheel From The Kd 957.1
H5-60-53-01 Demounting the motor and the fan wheel from the KD 957.1 In order to demount the motor (KD 957.1) the hood should be taken off the wall. To do so, remove the upper chimney and the lower chimney, take out the grease filters and remove both of the safety screws on the back wall of the hood body inside the suction shaft. -
Page 12: Demounting The Motor And The Fan Wheel Of The Ikd 1157.1
H5-60-53-01 Demounting the motor and the fan wheel of the IKD 1157.1 In order to demount the motor, the lower chimney must be pushed upwards, subsequently ensuring that it does not slip down (risk of injury). Loosen the 8 screws of the front plate and then remove the grease filters. -
Page 13: Technical Data
H5-60-53-01 Technical data Voltage/Frequence V/Hz 240 / 50 Air volume - outlet m³/h - Ø mm 850 +/-5% - 150 Nominal power Loadless power max. speed Loadless current max. speed Power consumption max. speed 255 ± 10% Power consumption 3° / 2° / 1° (min) speed 177 / 140 / 112 ±10% Operating current max speed 1.08 ±... -
Page 14: Air Volume Test
H5-60-53-01 Air Volume Test Ambient temperature 27°C Air pressure 758 mmHg Exhaust Ø 150 mm Total pressure 439 Pa Air quantity (Q) 785 m³/h Q max. measured 795 m³/h Efficiency Power (W) 260 W 1720 VALUES Q [m³/h] V (m/sec.) HT [Pa] HDF [Pa] HSF [Pa]... - Page 15 H5-60-53-01 Legend Prensa cables Cable box Entrada de tensión de red Mains connection Control electrónico Electronic control Común Common Luces Lamps Motor Motor 4 Velocidades 4 speeds Transformador Transformer Cable plano Flat cable Mando botonera de funciones Control panel Entrada Entry Salida Exit...
-
Page 16: Wiring Diagrams
Wiring diagrams KD 957.1... - Page 17 H5-60-53-01 BLACK GREY WHITE BLUE BROWN ORANGE/YELLOW RED -- BLACK 1 = RED ORANGE - BLUE minimal speed 2 = BROWN ORANGE - WHITE 2nd speed 3 = BLUE ORANGE - GREY 3rd speed 4 = WHITE ORANGE - BLACK maximum speed 5 = GREY 6 = BLACK...
