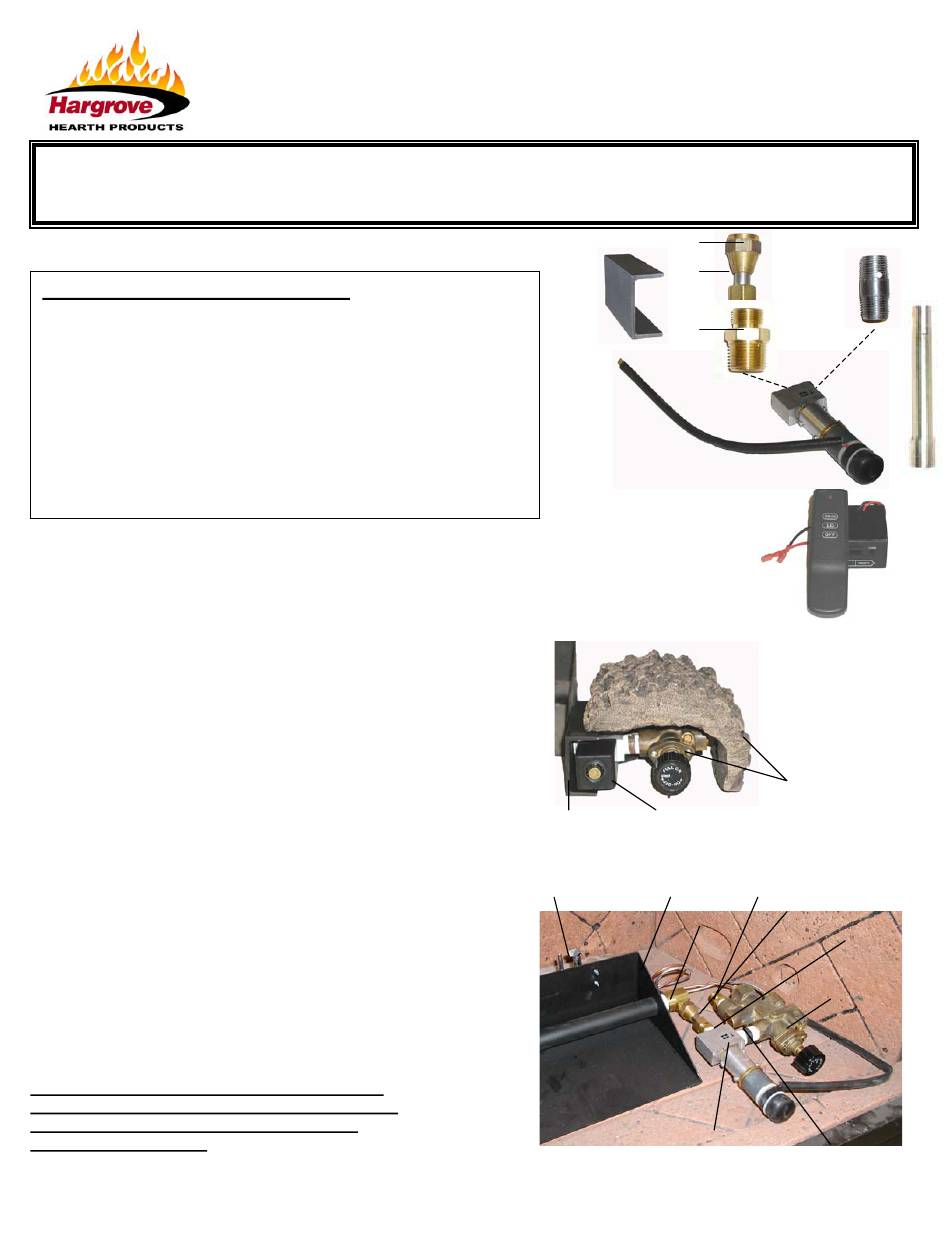

Hargrove SCK-RC Installation Instruction

NOTE: This kit is used to upgrade a Manual Safety Pilot Kit (CPE-PO) to function using a
switching device (remote control). Follow the Installation Instructions in the CPE-PO kit for
proper installation and operation.
USE THE PARTS LISTED BELOW WITH PARTS IN THE CPE-PO PILOT KIT
PART #
1.
CSC-BLOCK
2. 41S-6
3. SC-1
4. 68-6
5. N-6X1.5
6. LTHS
7. SPC-EH
8. RC-S6V-ST
9. (4)AA Batteries
10.A23 Battery
f i r e - p a r t s . c o m

INSTALLATION

1. Use the CPE-PO (Safety Pilot Valve Kit) Installation
Instruction to properly install the Extension Connector and
Pilot Assembly to the Ember Burner.
2. Attach the N-6X1.5 to the side port of the CSC-BLOCK.
3. Attach the other end of the N-6X1.5 to the outlet side of
the CPC-C
4. SC-1 assembly – Slide the 41S-6 onto the SC-1with both
flared ends going the same direction.
compression fitting to the SC-1 by sliding the nut and then
the ferule from the 68-6 onto the SC-1 then threading and
tightening the compression end of the 68-6 to the nut.
5. Attach the 68-6 end of the SC-1 assembly to the back port
of the CSC-BLOCK.
6. Verify that the brass elbow 50-6-8 is attached to the
ember burner and the flared end is facing forward. Attach
and tighten the 41S-6 end of the SC-1 to the 50-6-8.
7. Attach the wires on the CSC-BLOCK to the Switching
Device included in the SCK kit.
8. Assure the switching device is located as close to the
front opening of the fireplace and as far away from the
Ember Burner pan as possible.
9. Follow the Lighting Instructions in the CPE-PO Installation
instruction for proper lighting procedures.
IMPORTANT: GAS WILL NOT FLOW TO THE
EMBER BURNER UNTIL THE LATCHTAP (CLC-
BLOCK) IS ENGAGED USING ONE OF THE
SWITCHING DEVICES.
HARGROVE GAS LOG
SERVOTAP KIT (SCK-RC)
INSTALLATION INSTRUCTION
DESCRIPTION
LATCHTAP BLOCK
BRASS FLARE NUT
STAINLESS TUBING
BRASS 3/8"FIP X 3/8" COMPRESSION
3/8 X 1.5 PIPE
LATCHTAP HEAT SHIELD
KNOB EXTENSION HANDLE
REMOTE CONTROL
NOT PICTURED
NOT PICTURED
Attach the 68-6
2
6
3
4

HEAT SHIELD INSTALLATION

LTHS CSC-BLOCK
SERVOTAP KIT INSTALLED
PILOT EMBER
ASSEMBLY BURNER
50-6-8
CLC-BLOCK
5
1
8
PARTS INCLUDED IN
SAFETY PILOT KIT
41S-6
SC-1
68-6
CPC-C
SAFETY
PILOT
VALVE
(included in
CPE-PO kit)
N-6X1.5
7
