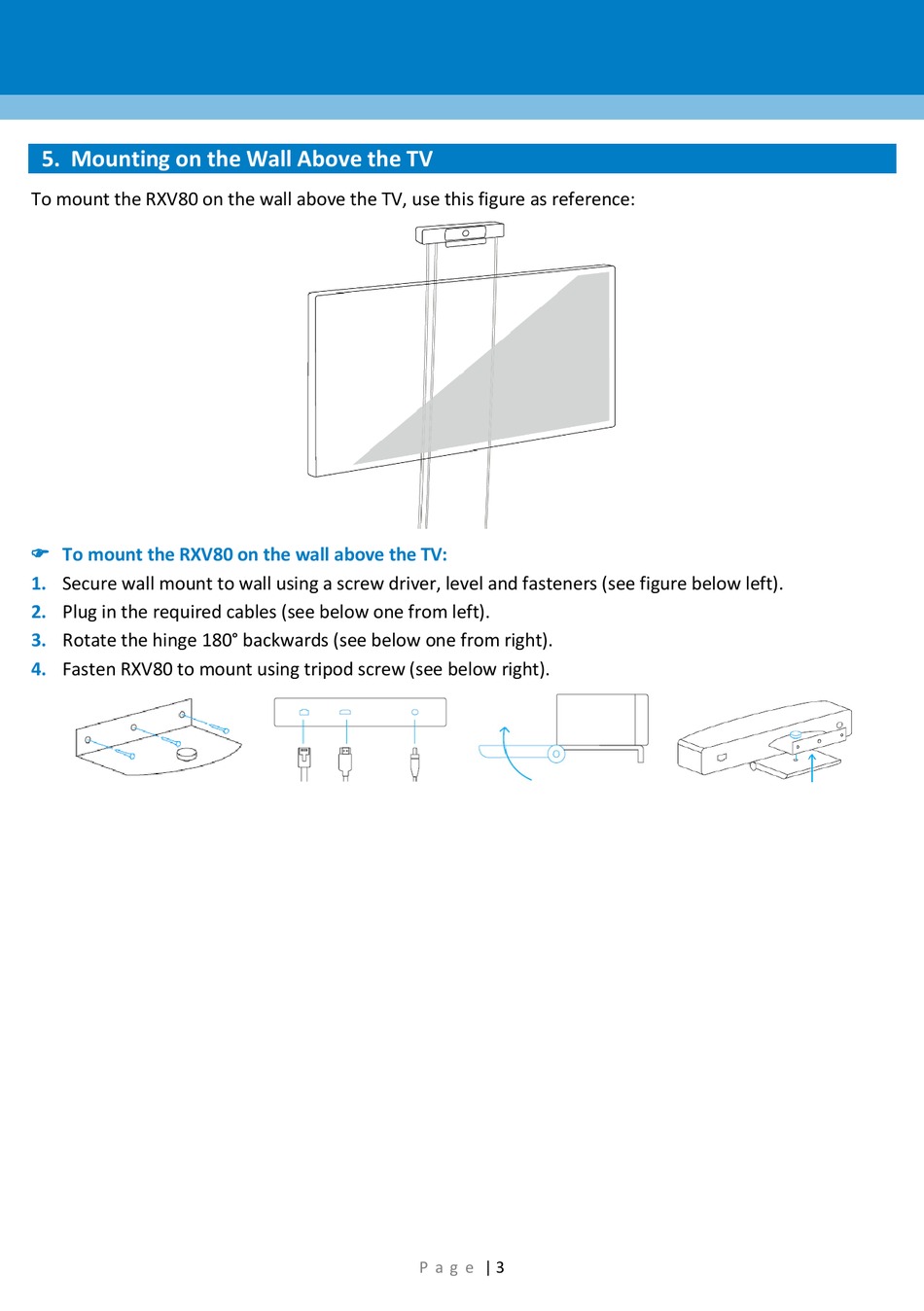

5. Mounting on the Wall Above the TV
To mount the RXV80 on the wall above the TV, use this figure as reference:
 To mount the RXV80 on the wall above the TV:
1. Secure wall mount to wall using a screw driver, level and fasteners (see figure below left).
2. Plug in the required cables (see below one from left).
3.
Rotate the hinge 180° backwards (see below one from right).
4. Fasten RXV80 to mount using tripod screw (see below right).
