Accessories for Spring Charged Operation

Automatic closing spring release

This device allows the charged closing springs to be automati-
cally released when the ACB is drawn out.
ANSI or NEMA-compliant ACBs require this option.
22

Spring charge indicator

This switch can be used to indicate that the closing springs
have been fully charged.
For contact ratings of the switch, see table c- 1 on page 28.
5

Trip Devices

Continuously-rated shunt trip device
The continuous-rated shunt trip device allows the ACB to be
opened when an external protection relay against overcurrent
or reverse power is activated.
Because of its continuous rating, the device can also be used
to provide an electrical interlock to the ACB.
Continuously rated shunt trip and undervoltage trip can not be
fitted to the same ACB. However, Instantaneously rated shunt
trip can be used together with undervoltage trip with special
specification. Special double opening and closing coils are
available, contact TERASAKI for details.
Capacitor trip device
In conjunction with the continuously-rated shunt trip device,
the capacitor trip device can be used to trip the ACB within a
limited period of 30 sec if a large voltage drop occurs due to an
ac power failure or short-circuit.
When the continuously-rated shunt trip is used with a capacitor
trip device, "a" contact of auxiliary switch of ACB should be
inserted in series, otherwise internal damage may occur.

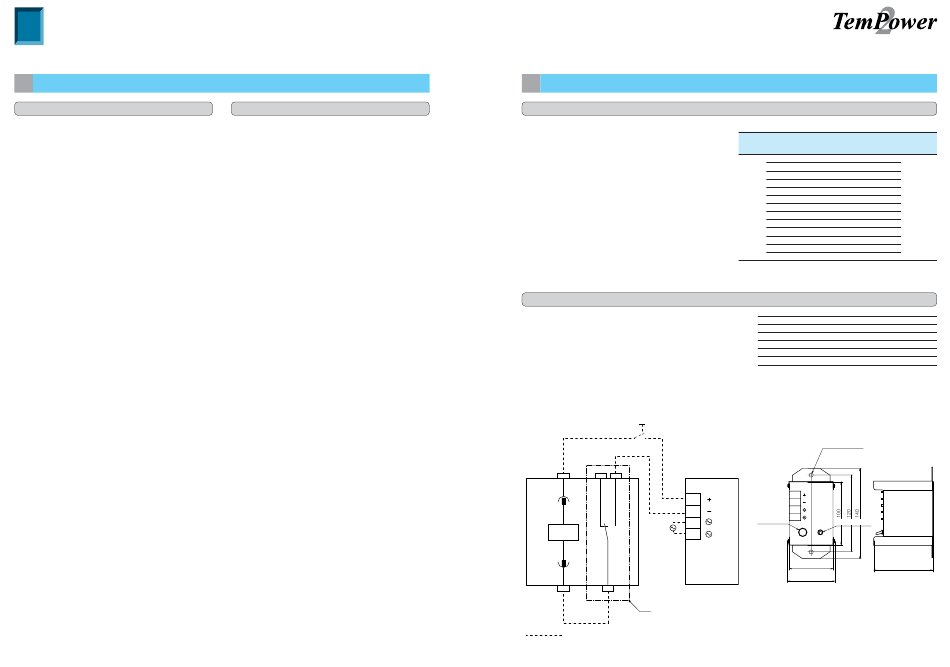

PB (OPEN) or
• Control Circuit
OCRy etc.
10
1
2
3
SHT
B A 4
AVR–IC
POWER SUPPLY
AC100V~120V
CAPACITOR TRIP
20
¶1
Auxiliary Switch
User Wiring
¶1: Use Auxiliary Switch for capacitor trip
Shunt Trip Rating (Continuously rated type)
Rated Operational Peak excitation Steady–state Opening time
Type voltage voltage current current (max.)
(V) (V) (A) (A) (ms)
AC100 AC70–110 0.48 0.32
AC110 AC77–121 0.39 0.26
AC120 AC84–132 0.37 0.24
AC200 AC140–220 0.24 0.16
AC220 AC154–242 0.19 0.13
AC240 AC168–264 0.18 0.12
AVR–1C DC24 DC16.8–26.4 1.65 1.1 40
DC48 DC33.6–52.8 0.86 0.57
DC100 DC70–110 0.39 0.26
DC110 DC77–121 0.37 0.25
DC125 DC87.5–137.5 0.31 0.21
DC200 DC140–220 0.19 0.13
DC220 DC154–242 0.18 0.12
Type AQR-1
Rated Voltage AC100-120V
Operational Voltage Rated Voltage X 70 to 110%
Rated frequecy 50/60Hz
Rated Voltage of Shunt Trip Used DC48V
Power Consumption 100VA
• Outline Dimensions
2–ø6.5Mtg.holes
1
2 NP
3
4
NEON LAMP
POWER SWITCH
70
95
76.5
23
