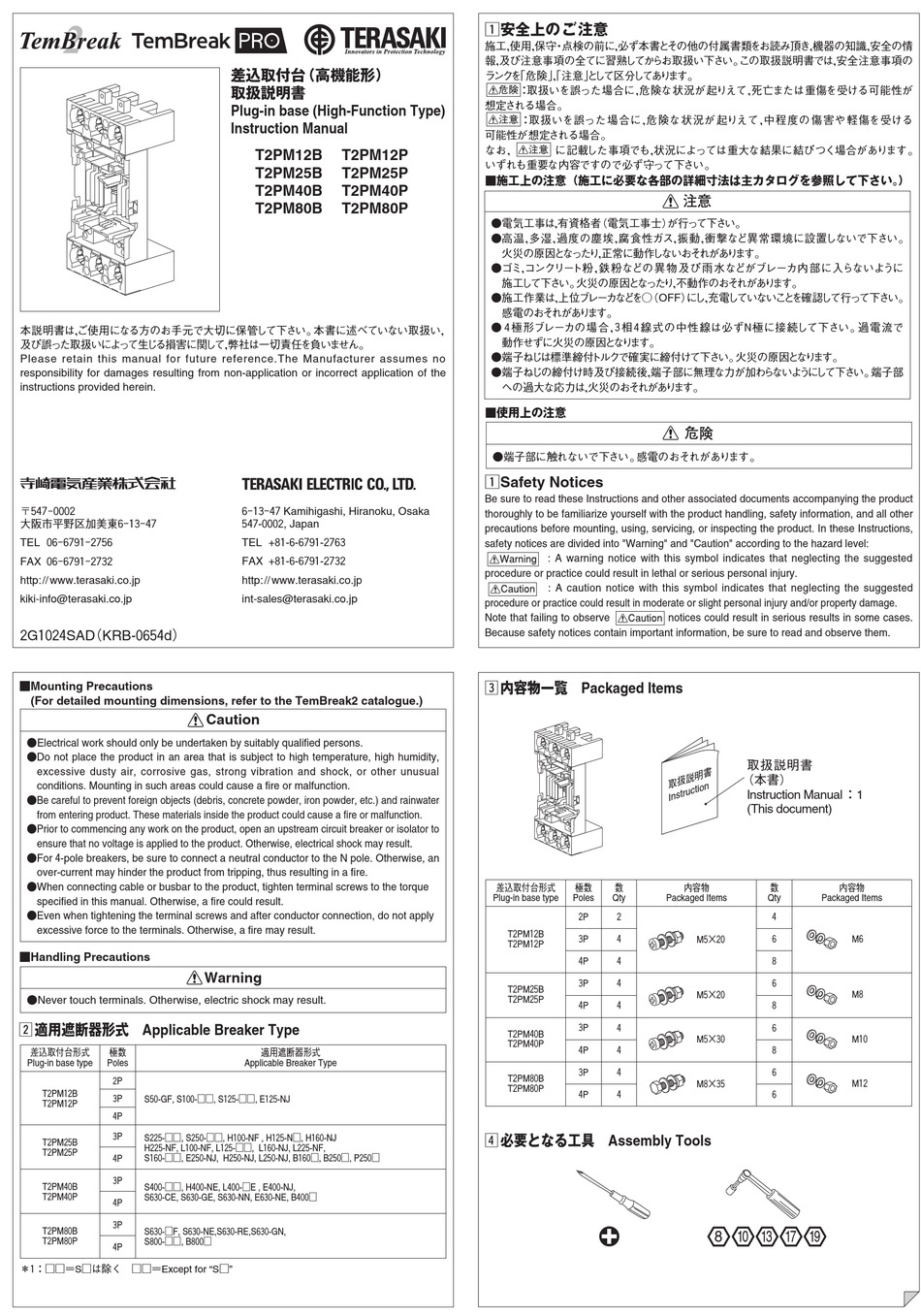

TERASAKI TemBreak 2 T2PM12B Instruction Manual

Plug-in base (high-function type)

Advertisement

本説明書は, ご使用になる方のお手元で大切に保管して下さい。 本書に述べていない取扱い,
及び誤った取扱いによ って生じ る損害に関 して, 弊社は一切責任を負いません。
Please retain this manual for future reference.The Manufacturer assumes no
responsibility for damages resulting from non-application or incorrect application of the
instructions provided herein.
〒547 ‐ 0002
大阪市平野区加美東6–13–47
TEL 06–6791–2756
FAX 06–6791–2732
http: // www.terasaki.co.jp
kiki-info@terasaki.co.jp
2G1024SAD(KRB-0654d)

■Mounting Precautions

(For detailed mounting dimensions, refer to the TemBreak2 catalogue.)
●Electrical work should only be undertaken by suitably qualified persons.
●Do not place the product in an area that is subject to high temperature, high humidity,
excessive dusty air, corrosive gas, strong vibration and shock, or other unusual
conditions. Mounting in such areas could cause a fire or malfunction.
●Be careful to prevent foreign objects (debris, concrete powder, iron powder, etc.) and rainwater
from entering product. These materials inside the product could cause a fire or malfunction.
●Prior to commencing any work on the product, open an upstream circuit breaker or isolator to
ensure that no voltage is applied to the product. Otherwise, electrical shock may result.
●For 4-pole breakers, be sure to connect a neutral conductor to the N pole. Otherwise, an
over-current may hinder the product from tripping, thus resulting in a fire.
●When connecting cable or busbar to the product, tighten terminal screws to the torque
specified in this manual. Otherwise, a fire could result.
●Even when tightening the terminal screws and after conductor connection, do not apply
excessive force to the terminals. Otherwise, a fire may result.

■Handling Precautions

●Never touch terminals. Otherwise, electric shock may result.
x 適用遮断器形式 Applicable Breaker Type
差込取付台形式
極数
Plug-in base type
Poles
2P
T2PM12B
3P
S50-GF, S100-□□, S125-□□, E125-NJ
T2PM12P
4P
3P
S225-□□, S250-□□, H100-NF , H125-N□, H160-NJ
T2PM25B
H225-NF, L100-NF, L125-□□, L160-NJ, L225-NF,
T2PM25P
4P
S160-□□, E250-NJ, H250-NJ, L250-NJ, B160□, B250□, P250□
3P
T2PM40B
S400-□□, H400-NE, L400-□E , E400-NJ,
T2PM40P
S630-CE, S630-GE, S630-NN, E630-NE, B400□
4P
3P
T2PM80B
S630-□F, S630-NE,S630-RE,S630-GN,
T2PM80P
S800-□□, B800□
4P
*1:□□=S□は除く □□=Except for "S□"
差込取付台 (高機能形)
取扱説明書
Plug-in base (High-Function Type)
Instruction Manual
T2PM12B
T2PM12P
T2PM25B
T2PM25P
T2PM40B
T2PM40P
T2PM80B
T2PM80P
6–13–47 Kamihigashi, Hiranoku, Osaka
547-0002, Japan
TEL +81-6-6791-2763
FAX +81-6-6791-2732
http: // www.terasaki.co.jp
int-sales@terasaki.co.jp
Caution
Warning
適用遮断器形式

Applicable Breaker Type

z安全上のご 注意
施工, 使用, 保守 ・ 点検の前に, 必ず本書と その他の付属書類をお読み頂き, 機器の知識, 安全の情
報, 及び注意事項の全てに習熟してか らお取扱い下さい。 この取扱説明書では, 安全注意事項の
ラ ンク を「危険」, 「注意」と して区分 してあ り ます。
: 取扱いを誤った場合に, 危険な状況が起りえて, 死亡または重傷を受ける可能性が
想定される場合。
: 取扱いを誤った 場合に, 危険な 状況が 起りえて, 中程度の 傷害や 軽傷を受ける
可能性が想定される場合。
なお,
に記載した事項でも, 状況によっては重大な結果に結びつく場合があります。
いずれも重要な内容ですので必ず守って下さい。
■施工上の注意(施工に必要な各部の詳細寸法は主カタログを参照して下さい。 )
●電気工事は, 有資格者 (電気工事士) が行って下さ い。
●高温, 多湿, 過度の塵埃, 腐食性ガス, 振動, 衝撃など異常環境に設置しないで下さい。
火災の原因と なった り, 正常に動作 しないおそれがあ り ます。
●ゴミ, コンクリー ト粉, 鉄 粉などの異 物 及び雨 水などがブレーカ内 部に入らないように
施工 して下さ い。 火災の原因と なった り, 不動作のおそれがあ り ます。
●施工作業は, 上位ブレーカな ど を○ (OFF) に し, 充電していないこ と を確認して行って下さい。
感電のおそれがあ り ます。
●4極形ブレーカの場合, 3相4線式の中性線は必ずN極に接続して下さい。 過電流で
動作せずに火災の原因と な り ます。
●端子ねじ は標準締付 トルクで確実に締付けて下さ い。 火災の原因と な り ます。
●端子ねじの締付け時及び接続後, 端子部に無理な力が加わ ら ないよ う に して下さ い。 端子部
への過大な応力は, 火災のおそれがあ り ます。
■使用上の注意
●端子部に触れないで下さい。 感電のおそれがあります。
zSafety Notices
Be sure to read these Instructions and other associated documents accompanying the product
thoroughly to be familiarize yourself with the product handling, safety information, and all other
precautions before mounting, using, servicing, or inspecting the product. In these Instructions,
safety notices are divided into "Warning" and "Caution" according to the hazard level:
: A warning notice with this symbol indicates that neglecting the suggested
procedure or practice could result in lethal or serious personal injury.
: A caution notice with this symbol indicates that neglecting the suggested
procedure or practice could result in moderate or slight personal injury and/or property damage.
Note that failing to observe
Because safety notices contain important information, be sure to read and observe them.
c 内容物一覧 Packaged Items
差込取付台形式
極数
Plug-in base type
Poles
Qty
2P
2
T2PM12B
3P
4
T2PM12P
4P
4
3P
4
T2PM25B
T2PM25P
4P
4
3P
4
T2PM40B
T2PM40P
4P
4
3P
4
T2PM80B
T2PM80P
4P
4
v 必要となる工具 Assembly Tools
注意
危険
notices could result in serious results in some cases.
取扱説明書
(本書)
Instruction Manual
(This document)
内容物
内容物
Packaged Items
Qty
Packaged Items
4
6
M5×20
8
6
M5×20
8
6
M5×30
8
6
M8×35
6
8
10
13 17 19
:1
M6
M8
M10
M12
