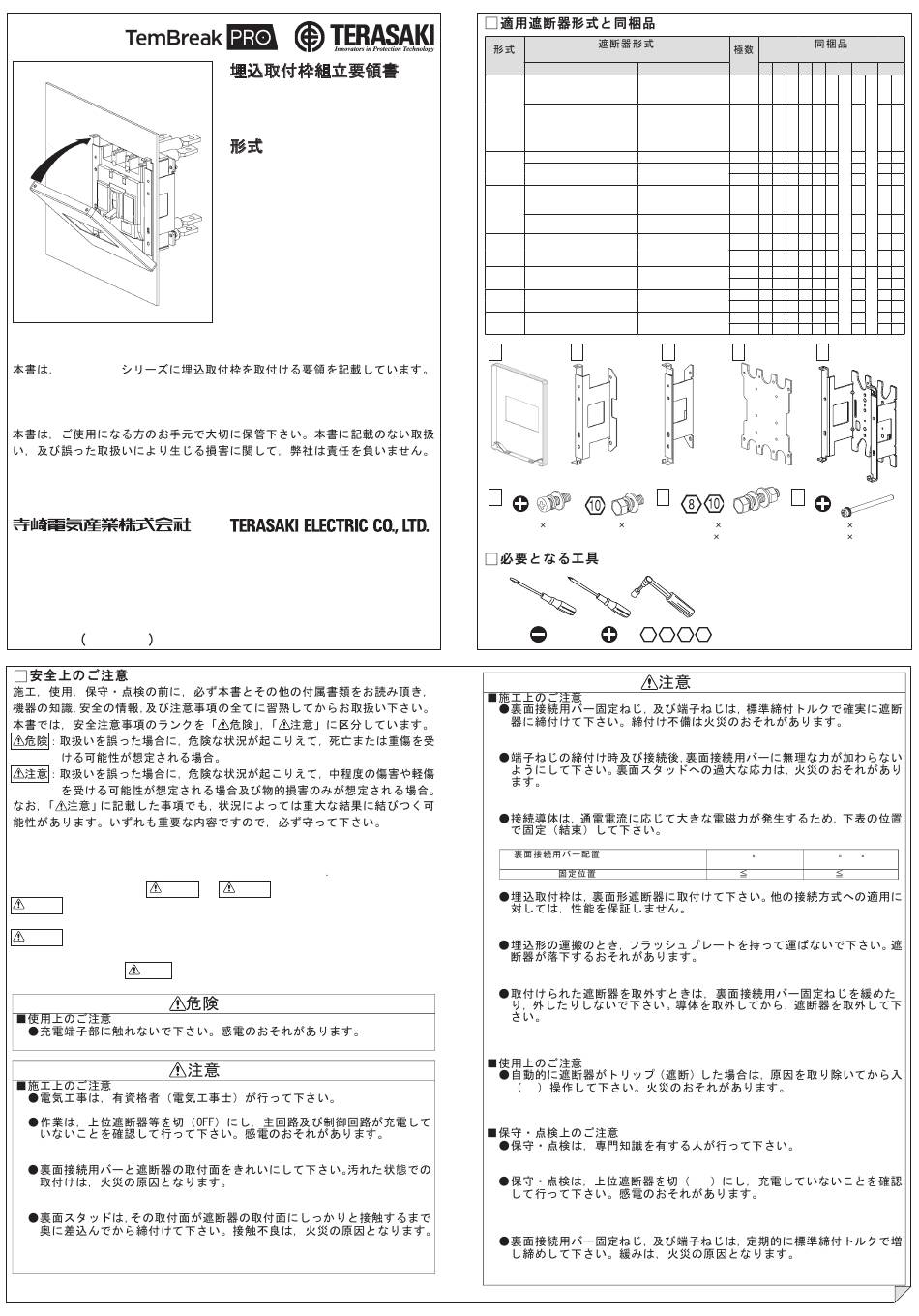

TERASAKI TemBreak PRO T2FP12LS Instruction Manual

2
TemBreak
TemBreak2
This document has described the procedure which attaches flush plate unit in TemBreak2
series.
Please retain this manual for future reference. The Manufacturer assumes no responsibility for
damages resulting from non-application or incorrect application of the instructions provided herein.
〒547-0002
大阪市平野区加美東6 – 13 – 47
TEL 06 – 6791 – 2756
FAX 06 – 6791 – 2732
https://www.terasaki.co.jp
kiki-info@terasaki.co.jp
2G1052SAC KRB-0680c

Safety Notice

3
Be sure to read these Instructions and other associated documents accompanying the product
thoroughly to be familiarize yourself with the product handling, safety information, and all other
precautions before mounting, using, servicing, or inspecting the product In these Instructions,
safety notices are divided into Warning and
Warning : A warning notice with this symbol indicates that neglecting the suggested procedure
or practice could result in lethal or serious personal injury.
Caution : A caution notice with this symbol indicates that neglecting the suggested procedure or
practice could result in moderate or slight personal injury and/or property damage.
Note that failing to observe Caution notices could result in serious injury/damage in some situations.
Because safety notices contain important information, be sure to read and observe them.
Operation Precautions
Never touch live terminals. Doing so may result in electric shock.
Installation Precautions
Installation work must be performed by competent persons.
Prior to commencing any work on the product, open an upstream circuit breaker or the
like to isolate all sources of power/voltage. Doing so may result in electric shock.
Clean the Rear connection Flat bar mounting surface (contact surface with the breaker
terminals). Otherwise, a fire may result.
Insert the Rear connection Flat bar to the full depth until the mounting surface comes into
contact with the breaker terminals, and tighten it with the stud fixing screws. Otherwise, a
fire may result.
Flush Plate Unit
Instruction Manual
(Types)
T2FP12LS
T2FP12S
T2FP25S
T2FP25L
T2FP40S
T2FP40L
T2FP40LS
6-13-47 Kamihigashi, Hiranoku, Osaka
547-0002, Japan
TEL +81-6-6791-2763
FAX +81-6-6791-2732
https://www.terasaki.co.jp
int-sales@terasaki.co.jp
Caution according to the hazard level:
Warning
Caution
1
Applicable Breaker Types
Types
MCCB
PE30-□□, PS30-NF, PE50-□□,
PS50-NF, PE60-NF, PS60-NF,
PE125-□□, S50-SF, S125-SF
PZE30-NF, PZS30-NF,
T2FP12LS
PE30-□□, PS30-NF, PE50-□□/NFZ,
PZE50-NF, PZS50-NF,
PS50-NF/NFZ, PE60-NF, PS60-NF,
PZE60-NF, PZS60-NF,
PE125-□□/NFZ, S50-SF,
PZE125-NF,ZS50-SF,
S125-SF/SN, ZAS125-SF
ZS125-SF, ZS100-SM
S100-GF, S125-GF
T2FP12S
S100-GF, S125-GF, ZAS50-GF,
ZS100-GF, ZS125-GF
ZAS100-GF, ZAS125-GF
E250-SF, S250-□□, ZAE250-SF,
ZE250-SF, ZS225-GF,
ZAS225-GF, ZAS250-□□,
ZS250-□□
PS250-□□
T2FP25S
S250-SF/SN, ZAS225-GF,
ZS225-GF, ZS250-GF
ZAS250-GF, PS250-□□
H100-NF, H125-NF, H225-□□,
T2FP25L H250-NF, L100-NF, L125-NF,
L225-NF, L250-NF, B160, B250
T2FP40S E400, S400, ZAE400, ZAS400 ZE400, ZS400
T2FP40L H400, L400
T2FP40LS E400-SF, ZAE400-SF ZE400-SF
A B
F G
#1 : M5 8 #2 : M6 10
Assembly tools
2
8 10 13 19
Installation Precautions
Tighten the Rear connection Flat bar fixing screws and the terminal screws to the torque
specified in this manual. Otherwise, a fire may result.
Even when tightening the terminal screws and after conductor connection, do not apply
excessive force to the Rear connection Flat bar. Otherwise, a fire may result.
Each connected conductor must be supported at a distance M. See following table.
Rear connection Flat bar
arrengement
P Distance P
Please attach the flush plate unit in the rear connected breaker. The manufacturer does
not assure performances of the breaker for application of the other connections.
In case of the flush plate type, please do not carry with the flush plate. Otherwise, the
breaker may fall.
When removing the installed breaker, loosen the terminal screws without loosing the Rear
connection Flat bar fixing screws.
Operation Precautions
ON
When the breaker trips open automatically, remove the cause; then close the breaker.
Otherwise, a fire may result.
Maintenance Precautions
Service and/or inspection of the product must be done by persons having expert
knowledge.
Before service or inspection of this product, please ensure that no voltage is present on
the breaker supply side. Any device upstream of this breaker should be suitably isolated
otherwise electric shock may result.
Regularly check that the Rear connection Flat bar fixing screws and the terminal screws
are tightened to torque values shown within this manual, failure to do so may result in fire.

Applicable Breaker Types/ Packaged Items

Items
Poles
ELCB A B C D E F
― 2 1 1 1 1 ― 4
3 1 1 1 1 ― 4
2 1 1 1 1 ― 4
―
3 1 1 1 1 ― 4
4 1 1 1 1 ― 4
3 ― ― ― ― 1 ―
4 1 1 1 1 ― 4
3 1 1 1 1 ― 4
―
4 1 1 1 1 ― 4
3 1 1 1 1 ― 4
4 1 1 1 1 ― 4
3 1 1 1 1 ― 4
―
4 1 1 1 1 ― 4
3 1 1 1 1 ― 4
4 1 1 1 1 ― 4
C D E
H
#3 : M5 16 #5 : M4 55
#4 : M6 25 #6 : M4 90
Caution
0 45 , 90
P 350mm P 200mm
OFF
G H
4 ― ―
4 ― ―
4 ― ―
4 ― ―
#1 #3
4 ― ―
4 2 #5
4 ― ―
4 2 #6
4 ― ―
4 ― ―
4 ― ―
4 ― ―
#2 #4
4 ― ―
4 ― ―
4 ― ―
