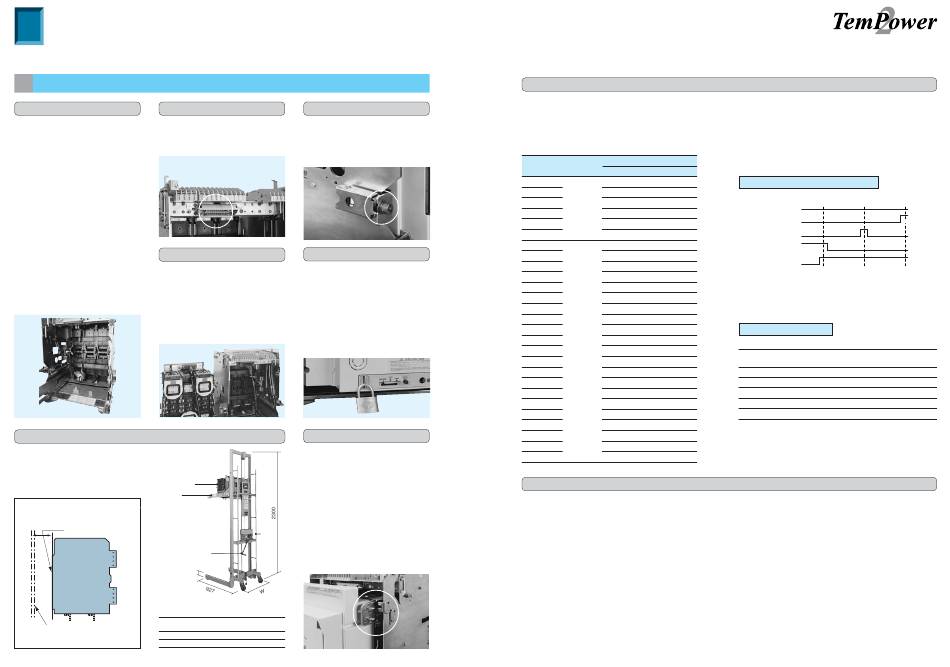

Specifications
2

Accessories for Draw-out Type

Main circuit safety shutters Control circuit safety shutter
The main circuit safety shutters auto- The control circuit safety shutter covers
matically conceal the main circuit con- the control circuit contacts, ensuring
tacts on the draw-out cradle when the safety.
ACB is drawn out.
• The top and bottom shutters operate
independently and can be separately
padlocked in the closed position.
• Up to three padlocks (with ø6 hasp)
can be installed on each side using
padlocking unit. (Padlock not supplied)
• In the closed position, the shutters are
locked to the extent that they cannot
Test jumper
be easily unlocked by hand. They can
The test jumper is a plug-in type, and
be unlocked and held open if required
allows ON-OFF tests on all the
for the purpose of inspection or main-
TemPower2 series ACBs with the
tenance.
breaker body drawn out from the draw-
out cradle.
The standard jumper cable is 5 m long.
Lifter
A special lifter is available to allow easy
and safe transportation or installation of
the ACB. A drop prevention mechanism
ACB
is standard.
Loader
ACB mounting position
¶190Max.
ACB front panel
Winch handle
95
Contact Terasaki for products with CE marking.
Type of Weight
Switchboard panel door
Lifter
¶: If 190 mm is exceeded, contact Terasaki.
AWR-1
AWR-2
18
¶: Standard equipment
Breaker fixing bolts
The breaker fixing bolts hold the breaker
body securely to the draw-out cradle in
position. Use them if the ACB is subject
to strong vibration.
Position padlock lever
Using the position padlock lever pre-
vents the breaker body from inadvert-
ently being drawn out. The position pad-
lock lever in the pulled-out position locks
the breaker body in the CONNECTED,
TEST, or ISOLATED position. Up to
three padlocks (with ø6 hasp) can be
installed.
Mal-insertion prevention device
Interchangeability exists within the
TemPower2 series of ACBs. Because
of this feature, there is a possibility for
an ACB of a different specification be-
ing placed into the draw-out cradle.
Using the mal-insertion prevention de-
vice eliminates such a possibility.
This device is capable of distinguishing
Grip
nine different breaker bodies.
Please specify the Code 1A, 1B, 1C, 2A,
2B, 2C, 3A, 3B, 3C for each ACB.
W Applicable
(kg) (mm) ACBs
110 700 AR2, AR3
120 890 AR2, AR3, AR4

Position switches

The position switch operates to give an indication of the breaker position: CONNECTED, TEST, ISOLATED, and INSERT.
There are two contact arrangements: 2c and 4c.
Connections to the switches are made via screw type terminals.
The following table lists the available types of the switches.
Number of
Type
contacts
ALR-0110P
ALR-0101P
ALR-0011P
2c
ALR-0200P
ALR-0020P
ALR-0002P
ALR-1111P
¶
ALR-1210P
ALR-1201P
ALR-0211P
ALR-1120P
ALR-1021P
ALR-0121P
ALR-1102P
ALR-1012P
ALR-0112P
ALR-0220P 4c
ALR-0202P
ALR-0022P
ALR-1030P
ALR-0130P
ALR-0031P
ALR-1003P
ALR-0103P
ALR-0013P
ALR-0040P
ALR-0004P

Door interlock

The door interlock prevents the switchboard door from being opened unless the breaker body is in the ISOLATED position.
When the draw-out handle is removed while the ACB is in the ISOLATED position, the interlock is released and the switchboard
door can be opened.
The breaker body cannot be inserted unless the switchboard door is closed.
Contact Terasaki for details.
Note 1: When the door interlock is installed, the standard draw-out handle cannot be stored in the switchboard. A storage draw-
out handle is available as an option. The storage draw-out handle can be housed flush with the front surface of the
ACB. (The storage handle will incur extra cost).
Note 2: Contact TERASAKI for the details for fitting Door interlock with IP55 cover.
Contact arrangement
INSERT ISOLATED TEST CONN
Position switch operation sequence
0 1 1 0
0 1 0 1
0 0 1 1
0 2 0 0
CONNECTED position switch
0 0 2 0
0 0 0 2
TEST position switch
1 1 1 1
ISOLATED position switch
1 2 1 0
INSERT position switch
1 2 0 1
0 2 1 1
1 1 2 0
INSERT position means the breaker body is in any position
1 0 2 1
between ISOLATED and CONNECTED.
0 1 2 1
1 1 0 2
Position switch ratings
1 0 1 2
0 1 1 2
0 2 2 0
Voltage
0 2 0 2
AC 100-250V
0 0 2 2
1 0 3 0 DC 250V
DC 125V
0 1 3 0
DC 30V
0 0 3 1
1 0 0 3 DC 8V
0 1 0 3
0 0 1 3
0 0 4 0
0 0 0 4
ISOLATED TEST CONNECTED
a- contact ON
a- contact ON
a- contact ON
a- contact ON
Inductive load (A)
Resistive load (A)
(COS ø = 0.6, L/R = 0.07)
11 6
0.3 0.3
0.6 0.6
6 5
10 6
