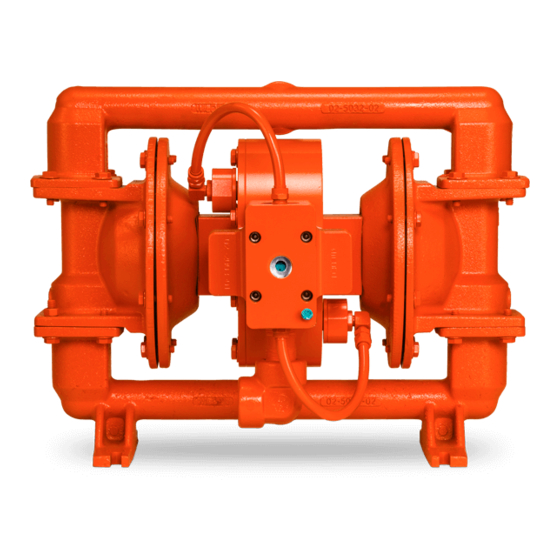

- Page 1 ENGINEERING OPERATION & MAINTENANCE MANUAL H220 High Pressure Bolted Metal Pump Where Innovation Flows WIL-11114-E-04...
- Page 2 Warranty Each and every product manufactured by Wilden is built to meet the highest standards of quality. Every pump is functionally tested to ensure integrity of operation. Wilden warrants that pumps, accessories and parts manufactured or supplied by it to be free from defects in material and workmanship for a period of five (5) years from date of installation or six (6) years from date of manufacture, whichever comes first.
-
Page 3: Table Of Contents
H220 High Pressure Bolted Metal CONTENTS SECTION 1: Precautions – Read First! ..................... 4 SECTION 2: Wilden Pump Designation System ..................5 SECTION 3: How It Works .......................... 6 SECTION 4: Dimensional Drawings ......................7 SECTION 5: Performance ........................... 8 H220 Metal TPE/Full-Stroke PTFE-Fitted .................... -
Page 4: Section 1: Precautions - Read First
NOTE: Materials of construction and elastomer material may influence suction lift parameters. Please refer to NOTE: Not all materials are available for all models. See “Wilden “Performance” for specifics. Pump Designation System” for material options for your pump. NOTE: When installing PTFE diaphragms, it is important to... -
Page 5: Section 2: Wilden Pump Designation System
AIR CHAMBERS OUTER PISTON WETTED PATHS MATERIAL CODES MODEL AIR VALVE VALVE BALLS H220 = 25 MM (1") HIGH PRESSURE A = ALUMINUM TF = PTFE (WHITE) XH220 = 25 MM (1") HIGH WF = WIL-FLEX™ [SANTOPRENE ® PRESSURE ATES... -
Page 6: Section 3: How It Works
Preface: The H220 uses an integral power amplifier piston together with two diaphragms to yield a pressure ratio of 3:1 [e .g ., 6 .9 bar (100 psig) air inlet will develop liquid discharge pressures up to 20 .7 bar (300 psig)] . In the H220, air is simultaneously directed behind the amplifier piston a well as one of the diaphragms via specialized air manifold porting. -
Page 7: Section 4: Dimensional Drawings
H220 High Pressure Bolted Metal SECTION 4 DIMENSIONAL DRAWING DIMENSIONAL DRAWING H220 METAL DIMENSIONS METRIC STANDARD ITEM (mm) (inch) 17.7 12.6 13.5 12.0 13.4 11.6 LW0440 REV. A WIL-11114-E-04... -
Page 8: Section 5: Performance
H220 High Pressure Bolted Metal SECTION 5 PERFORMANCE PERFORMANCE H220 METAL TPE/FULL-STROKE PTFE-FITTED Ship Weight…………Ductile Iron 38 kg (84 lb) Stainless Steel 37 kg (81 lb) Air Inlet……………………..……....1/2" Inlet…………………………………..25 mm (1") Outlet………………………………...25 mm (1") Suction Lift……………………2.8 m Dry (9.1') 9.0 m Wet (29.5') Disp. -
Page 9: Suction Lift Capability
H220 High Pressure Bolted Metal SUCTION LIFT CAPABILITY H220 METAL SUCTION LIFT CAPABILITY Suction-lift curves are calibrated for pumps operating at 305 m (1,000') above sea level. This chart is meant to be a guide only. There are many variables that can affect your pump's operating characteristics. -
Page 10: Section 6: Suggested Installation, Operation, Maintenance, And Troubleshooting
The suction pipe size should be at least equal to or larger than the pump fittings. diameter size of the suction inlet on your Wilden pump. The suction hose must be a non-collapsible, reinforced type because these pumps are Flexible hose can be installed to aid in absorbing the forces created by the capable of pulling a high vacuum. - Page 11 Frequency of use, line pressure, viscosity power returns. and abrasiveness of process fluid all affect the parts life of a Wilden pump. Periodic inspections have been found to offer the best means Air-Operated Pumps: To stop the pump from operating in an for preventing unscheduled pump downtime.
-
Page 12: Section 7: Disassembly/Reassembly
H220 High Pressure Bolted Metal SUGGESTED INSTALLATION, OPERATION, MAINTENANCE AND TROUBLESHOOTING Troubleshooting Pump air valve freezes. Pump will not run or runs slowly. Check for excessive moisture in the compressed air. Remove plug from pilot spool exhaust. Either install a dryer or a hot air generator for compressed Ensure that the air inlet pressure is at least 0.4 bar (5 psig) -
Page 13: Pump Disassembly
5/64" Hex-Head Wrench pump disassembly procedure will be the same. 3/16" Hex-Head Wrench O-Ring Pick NOTE: Replace worn parts with genuine Wilden parts for reliable performance. Adjustable Wrench Snap-Ring Pliers 5/8"-18 Jam Nut 1/2" Socket ... - Page 14 H220 High Pressure Bolted Metal DISASSEMBLY / REASSEMBLY DISASSEMBLY / REASSEMBLY Step 4 Step 5 Step 6 Using an adjustable wrench, remove each Using a 5/64" hex-head wrench, remove Inspect the pressure relief valve and pressure relief valve. the four fasteners to disassemble the components for nicks, gouges, chemical pressure relief valve.
- Page 15 H220 High Pressure Bolted Metal DISASSEMBLY / REASSEMBLY Step 10 Step 11 Step 12 Hints & Tips – Using an air nozzle, Inspect: air piston (including air valve Using a 3/16" hex-head wrench, remove alternately pressurize the 1/8" NPT ports,...
- Page 16 H220 High Pressure Bolted Metal DISASSEMBLY / REASSEMBLY Step 16 Step 17 Step 18 Remove valve ball, valve seat, valve seat Prior to disconnecting the inlet Hints & Tips – Due to the liquid O-ring and manifold O-ring and inspect.
- Page 17 H220 High Pressure Bolted Metal DISASSEMBLY / REASSEMBLY DISASSEMBLY / REASSEMBLY Step 22 Step 23 Step 24 Using a 1/2" socket, remove the air With the air chamber removed, note the Using a 1/2" wrench, remove the chamber fasteners. orientation of the bushing and center fasteners that connect the power piston section gasket.
-
Page 18: Air Valve/Center Section Disassembly
H220 High Pressure Bolted Metal DISASSEMBLY / REASSEMBLY Step 27 Using two 3/4" wrenches, break loose the two shafts from the power piston in a counter clockwise manner. Inspect the shafts and cylinder piston bushings for wear and replace as necessary. -
Page 19: Reassembly Hints And Tips
H220 High Pressure Bolted Metal DISASSEMBLY / REASSEMBLY REASSEMBLY HINTS AND TIPS Upon performing applicable maintenance to the air distribution system, Maximum Torque Specifications the pump can now be reassembled. Please refer to the disassembly instructions for photos and parts placement. - Page 20 H220 High Pressure Bolted Metal DISASSEMBLY / REASSEMBLY BUSHING SEAL INSTALLATION Pre-Installation Tools After all the old seals have been removed, the inside of the bushing The following tools can be used to aid in the installation of should be cleaned to ensure no debris is left that may cause premature the new seals: damage to the new seals.
-
Page 21: Section 8: Exploded View And Parts List
H220 High Pressure Bolted Metal SECTION 8 EXPLODED VIEW AND PARTS LIST H220 METAL – WETTED PATH LW0441 REV. B ALL CIRCLED PART IDENTIFIERS ARE INCLUDED IN REPAIR KITS WIL-11114-E-04... - Page 22 H220 High Pressure Bolted Metal EXPLODED VIEW AND PARTS LIST H220 METAL – CENTER SECTION LW0441 REV. B ALL CIRCLED PART IDENTIFIERS ARE INCLUDED IN REPAIR KITS WIL-11114-E-04...
- Page 23 H220 High Pressure Bolted Metal EXPLODED VIEW AND PARTS LIST EXPLODED VIEW AND PARTS LIST Model Description H220/WWWAA H220/SSSAA Item Part Description Qty, Air Distribution Components Air Valve Assembly 02-2003-01 End Cap w/Guide 04-2300-23 End Cap w/o Guide 04-2330-23 O-Ring (.984 x .139)
- Page 24 H220 High Pressure Bolted Metal EXPLODED VIEW AND PARTS LIST Model Description H220/WWWAA H220/SSSAA Item Part Description Qty, Air Distribution Components Air Valve Assembly 02-2003-01 End Cap w/Guide 04-2300-23 End Cap w/o Guide 04-2330-23 O-Ring (.984 x .139) 04-2390-52 Retaining Ring 04-2650-03 Screw, SHC, Air Valve (1/14"-20 x 2")
-
Page 25: Section 9: Elastomer Options
H220 High Pressure Bolted Metal SECTION 9 ELASTOMER OPTIONS BACK UP DIAPHRAGMS DIAPHRAGMS VALVE BALL MANIFOLD O-RING VALVE SEAT O-RING MATERIAL FULL-STROKE FULL STROKE PTFE 02-1011-55 02-1085-55 70-1280-55 02-1205-55 FDA WIL-FLEX™ 02-1011-57 02-1067-57 02-1085-58 02-1372-58 02-1205-58 LW0442 REV. C WIL-11114-E-04... - Page 26 H220 High Pressure Bolted Metal NOTES WIL-11114-E-04...
- Page 27 H220 High Pressure Bolted Metal NOTES WIL-11114-E-04...
- Page 28 22069 Van Buren Street Grand Terrace, CA 92313-5651 USA P: +1 (909) 422 -1730 psgdover.com Where Innovation Flows ® ® Copyright 2021 PSG , a Dover Company ® reserves the right to modify the information and illustrations contained in this document without prior notice. This is a non-contractual document. WIL-11114-E-04...
