Summary of Contents for Speco O8FBMS1

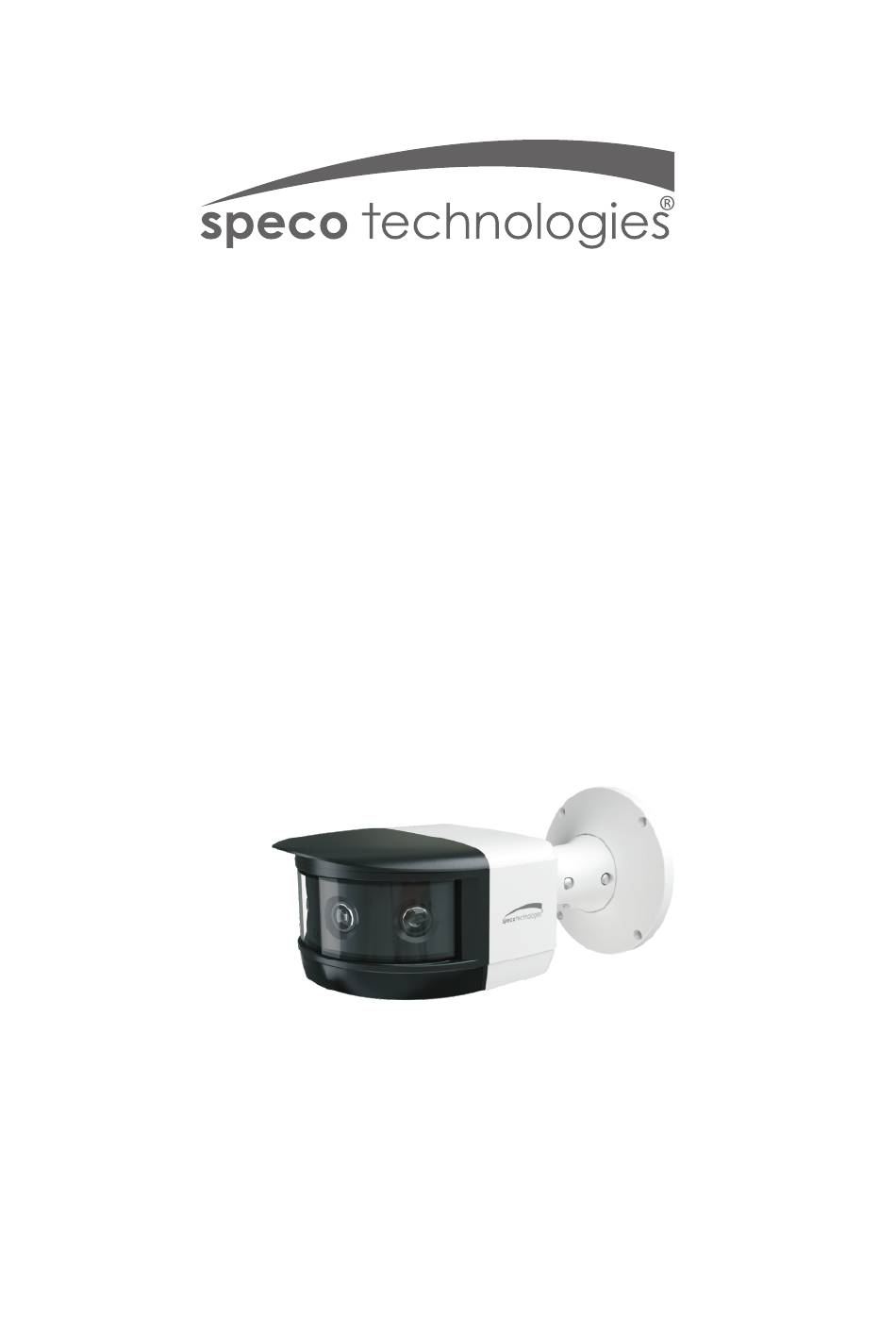

- Page 1 Quick Start Guide O8FBMS1...
- Page 2 This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1.
- Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.
- Page 4 ×4 Junction box Rubber plug Drill template Plastic plug Overview Overview Ethernet Connector * Audio Input (MIC) Audio Output (HP) Alarm Input/Output RS485 Power Connector * Ground Reset Micro SD Card Slot...
- Page 5 1--ALM-COM 2--ALM-OPEN 3--ALM-INA 4--ALM-GND RS485T+ RS485T- * 1 It is recommended to install the security cap for outdoor installations. * 2 DC 12V power supply is not required if a PoE switch or injector is used to power the camera. ►...
- Page 6 Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. ① Mount the junction box to the wall or ceiling with screws. ② Route the cables and connect the relevant cables (Take cable going through mounting surface for example).
- Page 7 ④ Bracket adjustment. Before adjustment, preview the image of the camera on a monitor and then loosen the fixed screws to adjust the view angle of the camera. After that, tighten the fixed screws. Fixed screws ° Tilt: 90 ° Rotate: 360 °...
- Page 8 5C:F2:07:24:68:B9 O8FBMS1 ③ In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer. You can also manually enter the IP address in the address bar of the web browser.
