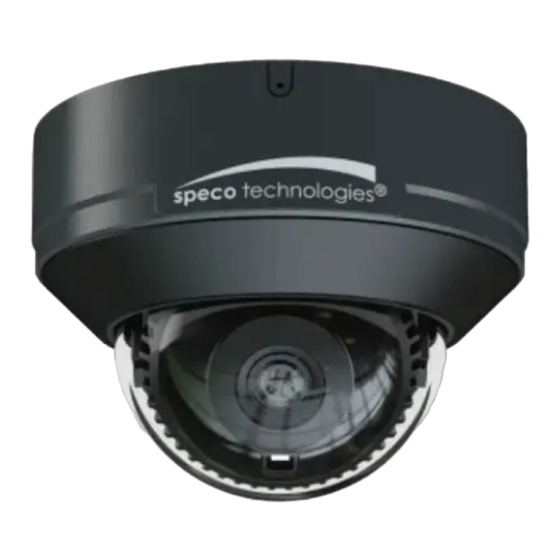

Speco O8FD1 User Manual

8mp ip camera
Hide thumbs Also See for O8FD1:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
8MP IP Camera
O8FB1/O8FB1M/O8FD1/ O8FD1M/ O8FT1/ O8FT1M
Please read this manual carefully before operating the unit and keep it for further reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the O8FD1 and is the answer not in the manual?

Questions and answers

Related Manuals for Speco O8FD1

Summary of Contents for Speco O8FD1

  • Page 1 User Manual 8MP IP Camera O8FB1/O8FB1M/O8FD1/ O8FD1M/ O8FT1/ O8FT1M Please read this manual carefully before operating the unit and keep it for further reference...
  • Page 2 Important Safeguards and Warnings 1. Electrical safety All installation and operation here should conform to local electrical safety codes. Use a certified/listed 12VDC Class2 or adequate PoE switch. Improper handling and/or installation could run the risk of fire or electrical shock. 2.
  • Page 3 Statement This guide is for reference only. Product, manuals, and specifications may be modified without prior notice. Speco Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation.

  • Page 4: Table Of Contents

    Table of Contents Introduction ..........................................2 Web Access and Login ......................................3 Live View..........................................5 Camera Configuration ......................................7 System Configuration ................................7 4.1.1 System Information ..............................7 4.1.2 Date and Time ................................7 4.1.3 Local Recording ................................8 4.1.4 Storage ..................................
  • Page 5 4.5.15 QoS....................................42 Security Configuration ................................43 4.6.1 User Admin ................................43 4.6.2 Online User ................................44 4.6.3 Block and Allow Lists ..............................44 4.6.4 Security Management...............................45 Maintenance Configuration ..............................46 4.7.1 Backup and Restore ..............................46 4.7.2 Reboot ..................................46 4.7.3 Upgrade ..................................46 4.7.4 Operation Log ................................47 Search ............................................

  • Page 6: Introduction

    Thank you for purchasing this network camera! Please read this manual carefully before operating the unit and retain it for further reference. Should you require any technical assistance, please contact Speco Technologies Technical Support at 1-800-645-5516. Main Features  Built-in PoE (Power over Ethernet) ...

  • Page 7: Web Access And Login

    2 Web Access and Login The IP camera settings can be accessed via a web browser through the LAN. Available web browser: IE (plug-in required)/ Firefox/Edge/Safari/Google Chrome It is recommended to use the latest version of these web browsers. The menu display and operation of the camera may be slightly different by using the browser with plug-in or without plug-in. Installing plug-in will display more functions of the camera.
  • Page 8 If this is the first time for you to log in, the password prompt may only change the admin password. To change ONVIF password, you either have to check the “Match Onvif Password” box (if available) or go to the the ONVIF section to change the password. (ConfigNetworkPorts/ConnectionsOnvif)

  • Page 9: Live View

    3 Live View The window below will be shown after logging in. The following table describes the icons on the live view interface Icon Description Icon Description Original size of resolution SD card recording indicator Fit (correct scale) Abnormal color indicator Auto (fill the window) Abnormal clarity indicator Full screen (show video only)
  • Page 10 Icon Description Icon Description Face detection Crowd density detection indicator *Plug-in free live view: Two-way audio and local recording are not supported.  All indicator icons above will flash in live view interface only when the corresponding events are enabled. ...

  • Page 11: Camera Configuration

    4 Camera Configuration Press the “Setup” button to go to the configuration interface. Note: Wherever applicable, click the “Save” button to save the settings. 4.1 System Configuration 4.1.1 System Information In the “System Information” interface, the system information of the device is listed. 4.1.2 Date and Time To set the time and date, go to SystemDate and Time.

  • Page 12: Local Recording

    4.1.3 Local Recording Go to SystemLocal Recording to set up the storage path of captured pictures and recorded videos on the local PC. There is also an option to enable or disable the bitrate display in the recorded files. Additionally, the snapshots triggered by smart events (including face detection, line crossing detection and intrusion detection) can be selected to save to the local PC.
  • Page 13 1. Go to StorageRecord to go to the interface as shown below. 2. Set record stream, pre-record time and cycle writing. Pre Record Time: Set the time to record before the actual recording begins. 3. Set schedule recording. Check “Enable Schedule Record” and set the schedule. Weekly schedule Set the alarm time from Monday to Sunday for a single week.

  • Page 14: Video Configuration

    Set the format, resolution and quality of the image saved on the SD card and the snapshot interval and quantity and the timing snapshot here. Snapshot Quantity: The number you set here is the maximum quantity of snapshots. The actual quantity of snapshots may be less than this number.
  • Page 15 Brightness: Set the brightness level of the camera’s image. Contrast: Set the color difference between the brightest and darkest parts. Hue: Set the total color degree of the image. Saturation: Set the degree of color purity. The purer the color, the brighter the image is. Sharpness: Set the resolution level of the image plane and the sharpness level of the image edge.

  • Page 16: Video / Audio Configuration

    Antiflicker: Off: disables the anti-flicker function. This is used mostly in outdoor installations.  50Hz: reduces flicker in 50Hz lighting conditions.  60Hz: reduces flicker in 60Hz lighting conditions.  Smart IR: Choose “ON” or “OFF”. This function can effectively avoid image overexposure so as to make the image more realistic. The higher the level is, the more overexposure compensation will be given.

  • Page 17: Osd Configuration

    Three video streams can be adjustable. Resolution: The size of image. Frame rate: The higher the frame rate, the video is smoother. Bitrate type: CBR and VBR are optional. Bitrate is related to image quality. CBR means that no matter how much change is seen in the video scene, the compression bitrate will be kept constant.

  • Page 18: Video Mask

    Set time stamp, device name, OSD content and picture overlap here. After enabling the corresponding display and entering the content, drag them to change their position. Then click the “Save” button to save the settings. Picture Overlap Settings: Check “OSD Content1”, choose “Picture Overlay” and click “Browse” to select the overlap picture. Then click “Upload” to upload the overlap picture.

  • Page 19: Roi Configuration

    To clear the video mask: Click the “Clear” button to delete the current video mask area. 4.2.5 ROI Configuration Go to ImageROI Config interface as shown below. An area in the image can be set as a region of interest. This area will have a higher bitrate than the rest of the image, resulting in better image quality for the identified area.

  • Page 20: Alarm Setup

    4.3 Alarm Setup 4.3.1 Motion Detection Go to AlarmMotion Detection to set motion detection alarm. 1. Check “Enable” check box to activate motion-based alarms. If unchecked, the camera will not send out any signals to trigger motion-based recording to the NVR or CMS, even if there is motion in the video. Alarm Holding Time: it refers to the interval time between the adjacent motion detections.

  • Page 21: Other Alarms

    Trigger SD Snap: If selected, the system will capture images on motion detection and save the images on an SD card. Trigger SD Recording: If selected, video will be recorded on an SD card on motion detection. Trigger Email: If “Trigger Email” and “Attach Picture” are checked (email address must be set first in the Email configuration interface), the captured pictures and triggered event will be sent into those addresses.
  • Page 22 When there are some errors in writing SD card, the corresponding alarms will be triggered. 1. Go to AlarmAnomalySD Card Error as shown below. 2. Click “Enable” and set the alarm holding time. 3. Set alarm trigger options. Trigger alarm out, Email and FTP. The setup steps are the same as motion detection. Please refer to motion detectionchapter for details.

  • Page 23: Alarm In (Sensor Input)

    2. Click “Enable” and set the alarm holding time. 3. Trigger alarm out. When the camera is disconnected, the system will trigger the alarm out. 4.3.3 Alarm In (Sensor Input) This function is only available for some models. To set sensor alarm (alarm in): Go to AlarmAlarm In interface as shown below.

  • Page 24: Alarm Server

    Day/Night Switch Linkage: Having selected this mode, select the alarm type and choose to open or close alarm out when the camera switches to day mode or night mode. Timing: Select the alarm type. Then click “Add” and drag the mouse on the timeline to set the schedule of alarm out; click “Erase” and drag the mouse on the timeline to erase the set time schedule.

  • Page 25: Object Removal

    4.4.1 Object Removal Alarms will be triggered when the objects are removed from or left at the pre-defined area. To set object removal detection: Go to ConfigEventObject Removal interface as shown below. 1. Enable abandoned/missing object detection and then select the detection type. Enable Left Detection: Alarms will be triggered if there are items left in the pre-defined area.

  • Page 26: Exception

    button and then click around the area where you want to set as the alarm area in the image (the alarm area should be a closed area). Click the “Stop Draw” button to stop drawing. Click the “Clear” button to delete the alarm area. Click the “Save” button to save the settings.

  • Page 27: Line Crossing

    Drag the slider to set the sensitivity value or directly enter the sensitivity value in the textbox. Click “Save” button to save the settings. The sensitivity value of Scene Change Detection: The higher the value is, the more sensitive the system responds to the amplitude of the scene change.

  • Page 28: Intrusion

    Human: Select it and then alarms will be triggered if someone crosses the pre-defined alarm line. Motor Vehicle: Select it and then alarms will be triggered if a vehicle with four or more wheels (eg. a car, bus or truck) crosses the pre-defined alarm line.
  • Page 29 1. Enable intrusion alarm and select the snapshot type and the detection target. 2. Set the alarm holding time. 3. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details. 4.

  • Page 30: Face Detection

    1. Auto-focusing function should not be enabled for intrusion detection. 2. Avoid the scenes with many trees or the scenes with various light changes (like many flashing headlights). The ambient brightness of the scenes shouldn’t be too low. 3. Cameras should be mounted at a height of 10ft or above. 4.
  • Page 31 Use this to draw the approximate size of the face that you want the camera to capture. This is useful when there are multiple faces in the background or foreground that are not needed to be captured. To enable, Click “Draw Area” and drag the border lines of the rectangle to modify its size.

  • Page 32: Crowd Density Detection

    4. The object distance depends on the focal-length of the lens mounted in the camera. 5. In order to guarantee the captured face recognition rate, the requirement for face capture are: left or right face turn angle is less than about 30°; pitching angle is less than 20°. 6.

  • Page 33: Region Entrance

    Set the schedule of the crowd density detection. The setup steps of the schedule are the same as schedule recording setup (See Schedule Recording). Note: The camera only can roughly calculate the crowd density through detecting the human faces. The head or back of the person detected is not counted.

  • Page 34: Target Counting

    3. Set the alarm area of the region exiting detection. 4. Set the schedule of the region exiting detection. The setup steps of the region exiting detection are the same as the region intrusion detection setup (See Intrusion for details). 4.4.9 Target Counting This function is to calculate the number of the people or vehicles crossing the alarm line through detecting, tracking and counting the shapes of the people or vehicles.
  • Page 35 Set the alarm line number and direction. Only one alarm line can be added. Direction：A->B and A<-B can be optional. The direction of the arrow is entrance. Statistics: If enabled, you can see the statistical information in the live view interface. If disabled, the statistical information will not be displayed in the live view interface.

  • Page 36: Region Statistics

    Select the report type. Daily report, weekly report, monthly report and annual report are selectable. Select the count type. Enter or leave can be optional. Select the start time and then click “Count”. Then the counting result will display in the statistic result area. Click Table or Chart to display the result in different way.
  • Page 37 Select the alarm area number on the right side. Only one alarm area can be added. Click the “Draw Area” button and then click around the area where you want to set as the alarm area in the image on the left side (the alarm area should be a closed area).

  • Page 38: Heat Map

    Please select report type, count type and start time as needed. Then click “Count” to search the statistic result. Click “Chart” to view the statistic result intuitively. 4.4.11 Heat Map Heat Map is to display the flow distribution of people/vehicles in pre-defined areas by different colors. 1.

  • Page 39: Network Configuration

    shown below. The default heat map is people flow data display. Click “Motor Vehicle” or “Non-motor Vehicle” to view the corresponding data. 4.5 Network Configuration 4.5.1 TCP/IP Go to NetworkTCP/IP interface as shown below. There are two ways for network connection. Use IP address (take IPv4 for example)-obtain a local IP address automatically through DHCP.

  • Page 40: Port

    Either method of network connection can be used. If PPPoE is used to connect internet, the camera will get a dynamic WAN IP address. This IP address will change frequently. To be notified, the IP change notification function can be used. Click “IP Change Notification Config”...

  • Page 41: Onvif

    4.5.4 Onvif The camera can be searched and connected to the third-party platform via ONVIF/RTSP protocol. Note: when adding the device to the third-party platform with ONVIF/RTSP protocol, please enter the username and password created in the above interface. 4.5.5 DDNS If the camera is set up with a DHCP connection, DDNS should be set for accessing the camera from the internet.

  • Page 42: 802.1X

    2. Check the corresponding version checkbox (Enable SNMPv1, Enable SNMPv2, Enable SNMPv3) according to the version of the SNMP software that will be used. 3. Set the values for “Read SNMP Community”, “Write SNMP Community”, “Trap Address”, “Trap Port” and so on. Please make sure the settings are the same as that of the SNMP software.

  • Page 43: Rtsp

    authentication system to identify the device in a local network. If the camera connected to the network interface of the switch has passed the authentication of the switch, it can be accessed via the local network. Protocol type and EAPOL version: Please use the default settings. User name and password: The user name and password must be the same with the user name and password applied for and registered in the authentication server.

  • Page 44: Upnp

    Server address: Enter the server address allocated by the third party server. After that, click “Save” to save the settings. Then click “Refresh” to view the connection status. 4.5.10 UPNP If this function is enabled, the camera can be quickly accessed through the LAN. Go to NetworkUPnP.

  • Page 45: Https

    Server Name: The name of the FTP server. Server Address: The IP address or domain name of the FTP. Upload Path: The directory where files will be uploaded to. Port: The port of the FTP server. Use Name and Password: The username and password that are used to login to the FTP server. 4.5.13 HTTPS HTTPs provides authentication of the web site and protects user privacy.

  • Page 46: Http Post

    Click the “Create” button to create a private certificate. Enter the country (only two letters available), domain (camera’s IP address/domain), validity date, password, province/state, region and so on. Then click “OK” to save the settings. * Click “Create a certificate request” to enter the following interface. Click “Create”...

  • Page 47: Security Configuration

    Video/Audio DSCP: The range is from 0 to 63. Alarm DSCP: The range is from 0 to 63. Manager DSCP: The range is from 0 to 63. Generally speaking, the larger the number is, the higher the priority is. 4.6 Security Configuration 4.6.1 User Admin Go to SecurityUser Admin interface as shown below.

  • Page 48: Online User

    1. Select a user to modify password and MAC address if necessary in the user configuration list box. 2. The “Edit user” dialog box pops up by clicking the “Modify” button. 3. Enter the old password of the user in the “Old Password” text box. 4.

  • Page 49: Security Management

    The setup steps are as follows: Check the “Enable address filtering” check box. Select “Block/Allow the following address”, IPv4/IPv6 and then enter IP address in the address box and click the “Add” button. 4.6.4 Security Management Go to SecuritySecurity Management as shown below. In order to prevent against malicious password unlocking, “locking once illegal login”...

  • Page 50: Maintenance Configuration

    4.7 Maintenance Configuration 4.7.1 Backup and Restore Go to MaintenanceBackup & Restore. Import & Export Settings  Configuration settings of the camera can be exported form a camera into another camera. 1. Click “Browse” to select the save path for import or export information on the PC. 2.

  • Page 51: Operation Log

    4.7.4 Operation Log To query and export log: 1. Go to MaintenanceOperation Log. 2. Select the main type, sub type, start and end time. 3. Click “Search” to view the operation log. 4. Click “Export” to export the operation log.

  • Page 52: Search

    5 Search 5.1 Image Search In the Setup interface, click Search to go to the interface as shown below. Images that are saved on the PC or SD card can be found here.  Local Image Search 1. Choose “Picture”—“Local”. 2.
  • Page 53 Click to return to the previous interface.  SD Card Image Search 1. Choose “Picture”—“SD Card”. 2. Set time: Select date and choose the start and end time. 3. Choose the alarm events at the bottom of the interface. 4. Click to search the images.

  • Page 54: Video Search

    Icon Description Icon Description Close: Select an image and click Close all: Click this button to close all this button to close the image. images. Save: Click this button to select the Save all: Click this button to select the path for saving the image on the path for saving all pictures on the PC.

  • Page 55: Sd Card Video Search

    Icon Description Icon Description Play button. After pausing the video, Pause button click this button to continue playing. Stop button Speed down Speed up Watermark display Enable / disable audio; drag the slider to adjust the volume after enabling audio. 5.2.2 SD Card Video Search Click Search to go to the interface as shown below.
  • Page 56 4. Select the alarm events at the bottom of the interface. 5. Select mix stream (video and audio stream) or video stream as needed. 6. Double click on a file name in the list to start playback. The time table can be shown in 24H/12H/2H/1H format by clicking the corresponding buttons. Video clip and downloading 1.
  • Page 57 Click “Set up” to set the storage directory of the video files. Click “Open” to play the video. Click “Clear List” to clear the downloading list. Click “Close” to close the downloading window.

  • Page 58: Appendix

    Appendix Appendix 1 Troubleshooting IP Scanner does not show any device. Make sure that the PC that’s running IP Scanner is on the same local network as the devices. Internet Explorer cannot download ActiveX control. IE browser may be set up to block ActiveX. Follow the steps below. 1.
  • Page 59 Models: O8FB1/O8FB1M/O8FD1/ O8FD1M/ O8FT1/ O8FT1M Federal Communications Commission (FCC) Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
