Summary of Contents for Speco O8D6M

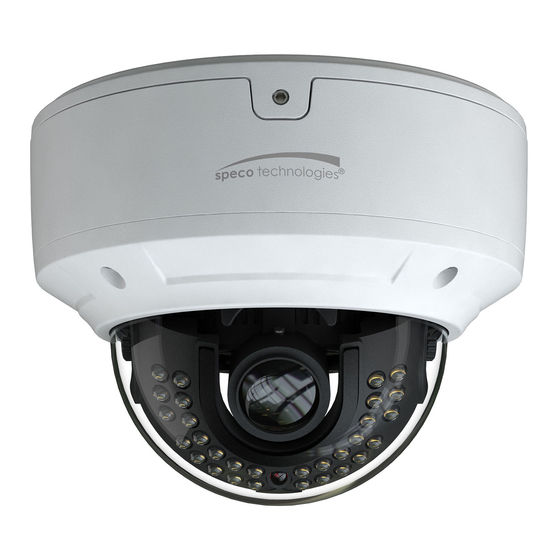

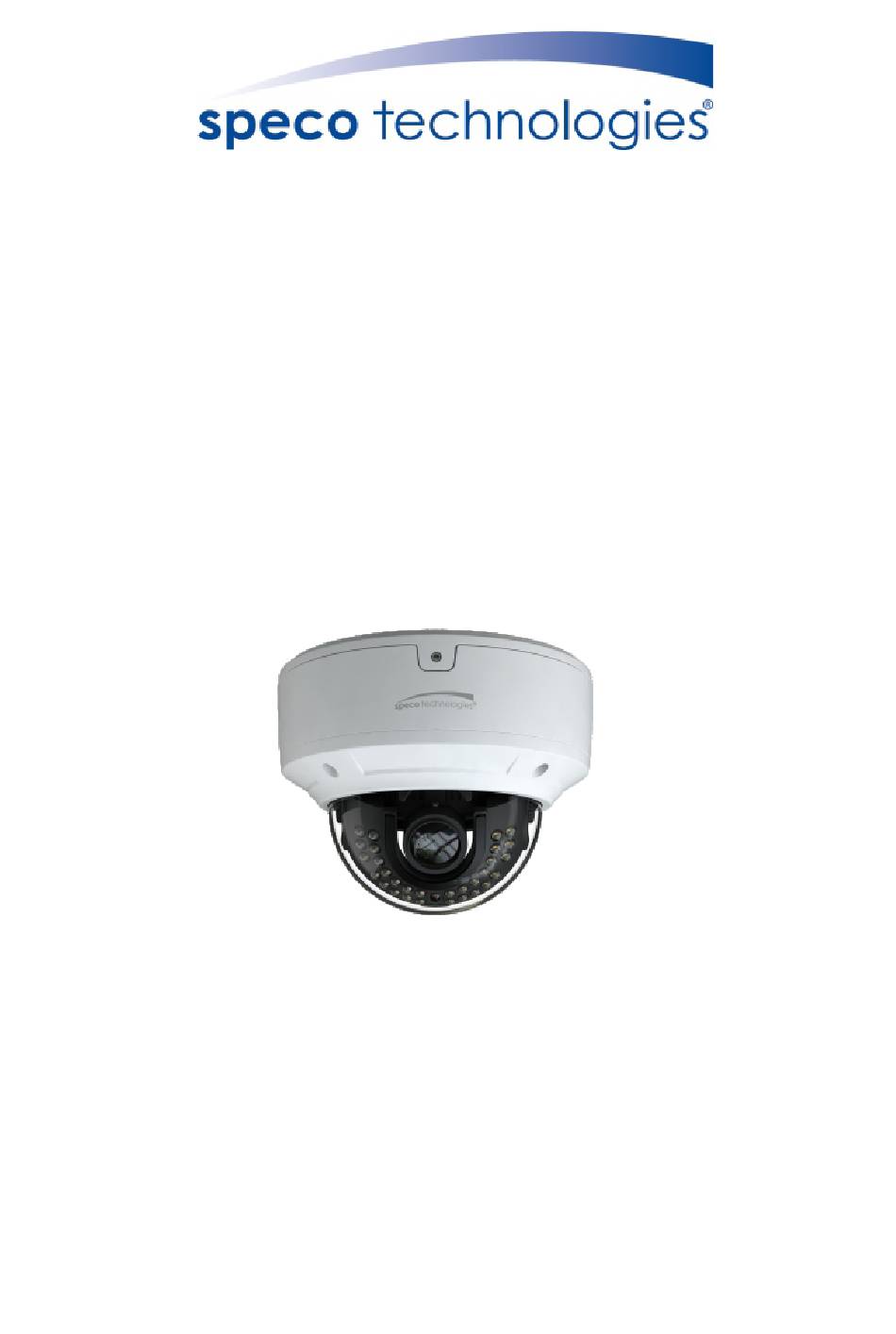

- Page 1 Quick Start Guide O8D6M...
-
Page 2: Warning And Caution
Warning and Caution ■ If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself. Any unauthorized changes or modifications could void the warranty. ■ Do not allow water or liquid intrusion into the camera. ■... - Page 3 Camera Quick start guide 4 tapping screws PA 4×25 Drill template ×4 Plastic plug CVBS&DC Screwdriver Junction box IN cables Overview Overview Ethernet connector RS485 cable MIC input (3.5mm) DC power connector Line out (3.5mm) Micro SD card slot Analog ouput (BNC) Reset hole Alarm input/output CVBS/DC IN port for testing...
-
Page 4: Connecting Network Cable
ALM-COM ALM-NO ALM-IN ALM-GND RS485T+ RS485T- * 1 It is recommended to install the security cap for outdoor installations. * 2 DC 12V power supply is not required if a PoE switch or injector is used to power the camera. ►... -
Page 5: Installation
Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. ① Open the upper cover of the junction box. Then install junction box onto the wall by using the screws provided. Upper Cover ②... - Page 6 ③ Loosen the screws to open the lower dome and then loosen the lock screw to remove the mounting base. Lock Screw Mounting Base Lower Dome ④ Install the mounting base onto the junction box. Then connect the cables and fix the dome to the mounting base with the lock screw.
- Page 7 ⑤Three-axis Adjustment-Before adjustment, preview the image of the camera on a monitor and then adjust the camera according to the figure below to get an optimum angle. Tilt 0°~77° Pan 0°~360° Rotation 0°~360° ⑥ Install the lower dome back to the camera and fix it with the screws. Web Operation and Login IP Scanner can search for the device on the local network.
- Page 8 ③ In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer. You can also manually enter the IP address in the address bar of the web browser. The login interface is shown above.
