CRS354-48P-4S+2Q+RM
CRS354-48P-4S+2Q+RM

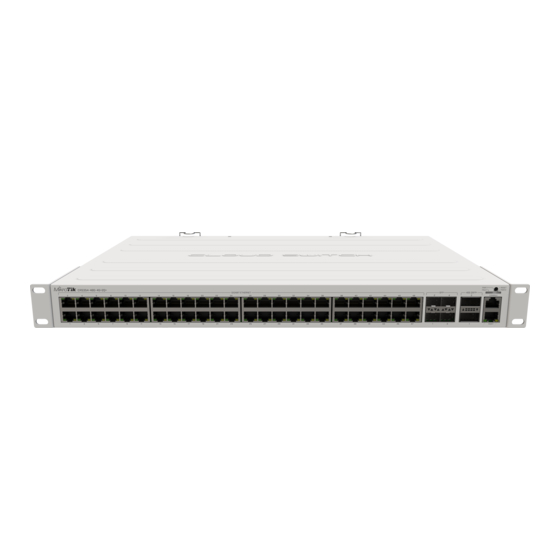

The CRS354 is a network switch with 48 Gigabit ports supporting PoE out for your devices, four 10G SFP+ ports, two 40G QSFP+ ports. The device is
ready to use as a switch.
Quick start
The device has all interfaces switched.
Mount unit in a rackmount cabinet or place on the flat surface (see "
Connect the device to the AC source using a power cord.
Set the IP address of your PC to 192.168.88.3
Use a Web browser to connect to the default IP address of 192.168.88.1 from any port, with the username
If IP is not available to download Winbox from our webpage and use it to connect through MAC address.
Update RouterOS software to the latest version, make sure that the device has an internet connection.
If the device does not have an internet connection update software by downloading the latest version from our webpage
/download
Find the latest (mipsbe) software and choose your packages.
Download packages to the PC and upload them to the Winbox, Files menu, and reboot the device.
Set up your password to secure the device.
Mounting
The device is designed to use indoors and it can be mounted in a rackmount enclosure using provided rack mounts, or it can be placed on the desktop.
Use a Phillips screwdriver to attach rackmount ears on both sides of the device and for both sides of the back of the device if designated use is for
rackmount enclosure:
1.
Attach the bracket to the front right side.
2.
Attach the rear right bracket.
3.
Attach the bracket to the left front side.
4.
Attach the rear left bracket.
5.
Attach long brackets to the rackmount and install the device with the holes so that the device fits conveniently.
6.
If needed, install cable management brackets.
Mounting
").
admin
and no password.
https://mikrotik.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MikroTik CRS354
Summary of Contents for MikroTik CRS354
- Page 1 CRS354-48P-4S+2Q+RM CRS354-48P-4S+2Q+RM The CRS354 is a network switch with 48 Gigabit ports supporting PoE out for your devices, four 10G SFP+ ports, two 40G QSFP+ ports. The device is ready to use as a switch. Quick start The device has all interfaces switched.
- Page 2 The power consumption of this device under maximum load is up to 85 W. With attachments 800 W. Power output The device supports PoE 802.3af/at out from Ethernet 1 - 48 port, you can power Mikrotik devices which supports powering through Ethernet. Output per port (53V out) 570 mA...
- Page 3 Safety Notice Before you work on any MikroTik equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing accidents. The installer should be familiar with network structures, terms, and concepts.
- Page 4 BG С настоящото Mikrotīkls SIA декларира, че този тип радиосъоръжение RouterBOARD е в съответствие с Директива 2014/53/ЕС. Цялостният текст на ЕС декларацията за съответствие може да се намери на следния интернет адрес: https://mikrotik.com/products CS Tímto Mikrotīkls SIA prohlašuje, že typ rádiového zařízení RouterBOARD je v souladu se směrnicí 2014/53/EU. Úplné znění EU prohlášení o shodě...
- Page 5 HU Mikrotīkls SIA igazolja, hogy a RouterBOARD típusú rádióberendezés megfelel a 2014/53/EU irányelvnek. Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen: https://mikrotik.com/products IT Il fabbricante, Mikrotīkls SIA , dichiara che il tipo di apparecchiatura radio RouterBOARD è conforme alla direttiva 2014/53/UE. Il testo completo della dichiarazione di conformità...
- Page 6 Note. Information contained here is subject to change. Please visit the product page on www.mikrotik.com for the most up to date version of this document.
