2.0 PHYSICAL CONSTRUCTION & MOUNTING
The M350 meters are packaged in rugged aluminum case specifically designed to
meet the harsh conditions found in utility and industrial applications.
The Front panel view of the V3 3-phase voltmeter is shown in Figure 1. The A3 3-
phase ammeter is not shown, but would look similar indicating Amps for engineering
units. The mechanical dimensions of the M350 are shown in Figure 2.

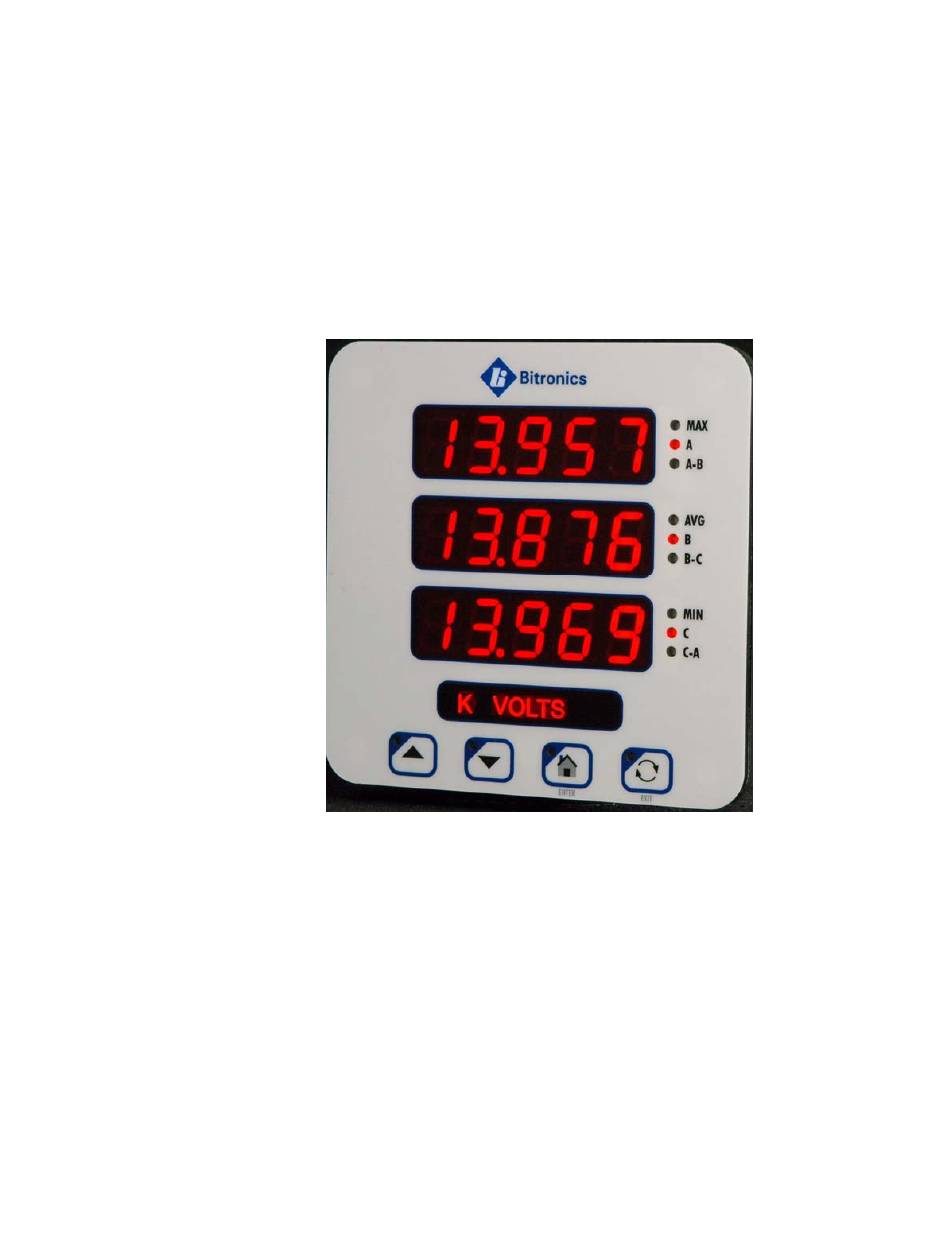

Figure 1 – M350 V3 3-Phase Voltmeter Front View
