Summary of Contents for Bartscher IRS 1L-W

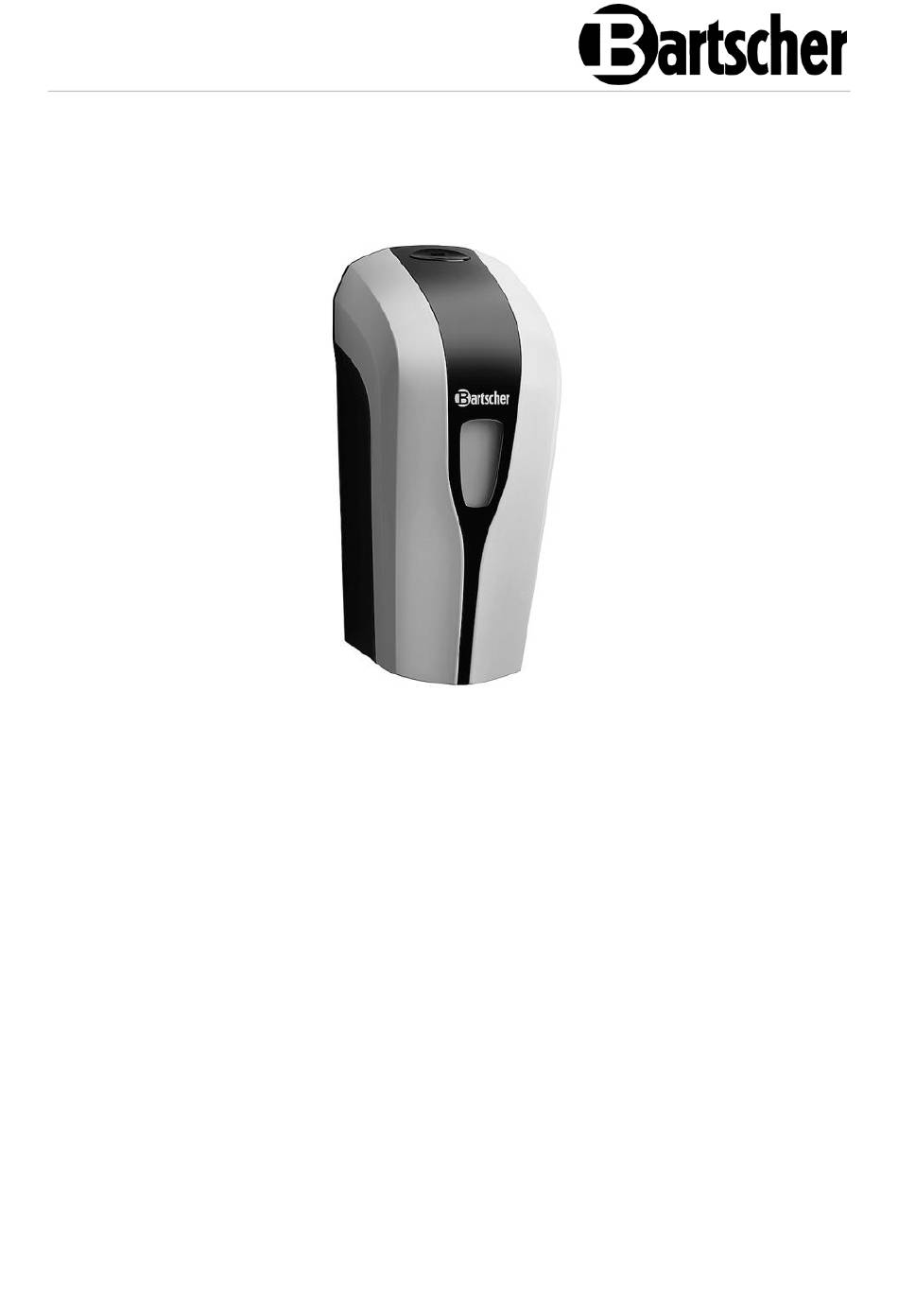

  • Page 1 IRS 1L-W 850027...
  • Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Service hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2020-11-16 Original instruction manual...
  • Page 3 Technical Data Disinfectant dispenser IRS 1L-W Name: 850027 Article number Material: plastic Volume, in l: Dosing, in ml: 0,4 - 0,8 / 0,8 - 1,6 Dimensions (W x D x H), in mm: 123 x 114 x 262 Weight, in kg: 0,73 We reserve the right to implement technical modifications.
  • Page 4 List of Components of the Appliance Fig. 1 1. Key 2. Key-hole 3. Housing 4. Front cover 5. Filling level check sight glass 6. Spraying setting 1 button 7. Spraying setting 2 button 8. ON/OFF button 9. LED indicator light 10.
  • Page 5 User Instructions • Do not expose the appliance to sunlight to avoid its deformation. • If the disinfectant dispenser will not be used for a longer period of time, remove batteries and empty the disinfectant container. • Keep the appliance away from fire. •...
  • Page 6 Inserting Batteries Fig. 3 1. Use the key to open the disinfectant dispenser and lower the front cover. Remove the disinfectant container with the pump from the housing. 2. Remove the cover from the battery chamber. 3. Insert correctly the batteries: 4x 1.5 V AA or 8x 1,5 V AA. Filling with Disinfectant (A –...
  • Page 7 Switching the Appliance On / Setting Dosing Volumes 1. Switch the disinfectant dispenser with the ON/OFF button (8). The LED indicator light (9) will blink twice in green. 2. Set the selected dosing for the disinfectant by pressing the corresponding (6) or (7) button. The following settings are available: –...
  • Page 8 Dispensing the Disinfectant 1. Dispense the disinfectant as needed, holding your palm underneath the disinfectant dispenser. Owing to the infrared sensor, exact dosing of the disinfectant is effected: depending on the settings, the spraying i effected once or twice. The LED indicator light (9) blink once or twice in green.
