Summary of Contents for Peak NM30LA-MS

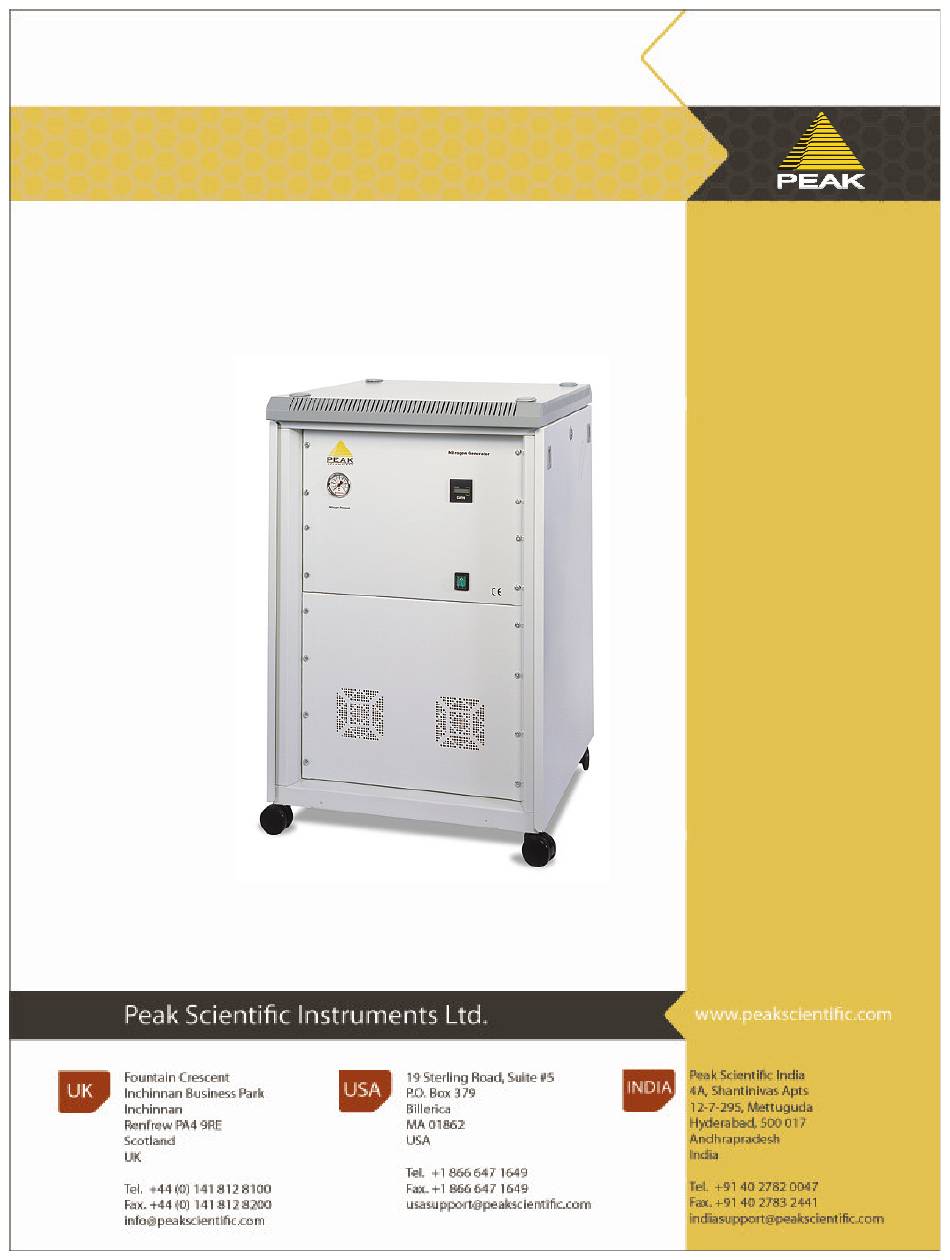

- Page 1 NM30LA-MS GAS GENERATOR USER MANUAL NM30LA-MS-230v (19”RACK SYSTEM)
-
Page 2: Table Of Contents
UM-NM30LA-MS Gas Generator UM –NM30LA-MS Contents Page Contents Document Change History Warranty Statement Declaration of Conformity Technical Specification Introduction Unpacking and Installation Electrical connection Unpacking and Installation and connection Installation – General Controls Installation – Generator Environment Installation - General Dimensions... -
Page 3: Document Change History
UM-NM30LA-MS Gas Generator UM –NM30LA-MS History Rev. No. Changed Initials Date Document Created 09/11/06 Waste Bottle Note Added 08/05/07 Notes Added for –Indoor use only & Altitude 25/09/02 Updated to New Format 06/02/09... -
Page 4: Warranty Statement
SAFETY NOTICE TO USERS These instructions must be read thoroughly and understood before installation and operation of your Peak Scientific NM30LA. Use of the Generator in a manner not specified by Peak Scientific MAY impair the SAFETY provided by the equipment. -
Page 5: Declaration Of Conformity
UM-NM30LA-MS Gas Generator UM –NM30LA-MS Declaration of Conformity Declaration of Conformity... -
Page 6: Technical Specification
UM-NM30LA-MS Gas Generator UM –NM30LA-MS Technical Specification Generator Environment Minimum Operating Ambient Temperature C (41 Maximum Operating Ambient Temperature C (86 Maximum Relative Humidity Maximum Altitude 2000 Meters Outlet Gas Maximum Gas Outlet Pressure 100 psig (6.8 barg) Maximum Gas Outlet Flow... -
Page 7: Introduction
Thank you for selecting Peak Scientific Instruments (PSI) to meet your Gas Generation needs, and should you require any further assistance or support please do not hesitate to contact us at the... -
Page 8: Unpacking And Installation Electrical Connection
UM –NM30LA-MS Installation Unpacking and Installation Although Peak Scientific takes every precaution with safe transit and packaging, it is advisable to fully inspect the unit for any signs of transit damage. ANY DAMAGE SHOULD BE REPORTED IMMEDIATELY TO THE CARRIER AND PEAK SCIENTIFIC OR THE DISTRIBUTOR FROM WHERE THE UNIT WAS PURCHASED. -
Page 9: Unpacking And Installation And Connection
UM-NM30LA-MS Gas Generator UM –NM30LA-MS Connections... -
Page 10: Installation - General Controls
UM-NM30LA-MS Gas Generator UM –NM30LA-MS General Controls... -
Page 11: Installation - Generator Environment
UM-NM30LA-MS Gas Generator UM –NM30LA-MS Generator Environment Generator Environment The Generator is designed for indoor use only. The unit should be installed adjacent to the Mass Spectrometer it is supplying. If this is not convenient then the generator can be sited elsewhere, however, consideration should be made of the lengths of pipe runs as pressure drops can result from extended runs of pipe. -
Page 12: Operation - Principle Of Operation
UM-NM30LA-MS Gas Generator UM –NM30LA-MS Principle of Operation Peak Scientific Instruments NM30LA-MS The Nitrogen generator employs “Hollow Fibre Membrane” Technology to efficiently separate Nitrogen from other gases present in ambient air. An overview of this process can be seen below. -
Page 13: Operation - Controls
UM –NM30LA-MS Commissioning Operator Training The NM30LA-MS Laboratory Gas Generator is designed specifically to minimize operator involvement. Given that the generator is installed as described in earlier sections and is serviced in accordance with the following maintenance recommendations then it should simply be a matter of turning the generator on. -
Page 14: Maintenance - Routine Maintenance
*Compressors can be re-fitted as an alternative to replacement up to a maximum of 3 times, this is a more cost effective solution, however a degree of technical expertise is required and can be time consuming. Service kits are available for all routine maintenance. Please contact Peak Scientific for further details. -
Page 15: Maintenance - Routine Maintenance
UM-NM30LA-MS Gas Generator UM –NM30LA-MS Maintenance RAC Filter The Element is as shown, and should be changed at 12-month intervals The Power supply to the Generator MUST be turned OFF and the Generator MUST be de- pressurised prior to attempting to remove ANY filter bowl. Failure to do this may cause injury. -
Page 16: Maintenance - Routine Maintenance
UM-NM30LA-MS Gas Generator UM –NM30LA-MS Maintenance Compressor Intake Filter The Element is as shown, and should be changed at 6-month intervals. The Power supply to the Generator MUST be turned OFF prior to attempting to remove ANY filter. Failure to do this may cause injury. -
Page 17: Pneumatic Diagram
UM-NM30LA-MS Gas Generator UM –NM30LA-MS Pneumatic Pneumatic Diagram... -
Page 18: Maintenance Log
UM-NM30LA-MS Gas Generator UM –NM30LA-MS Maintenance Log Maintenance log Model- NM30LA Serial number Work Done Remarks Date Name... -
Page 19: Notes - Additional Notes
UM-NM30LA-MS Gas Generator UM –NM30LA-MS Notes...
