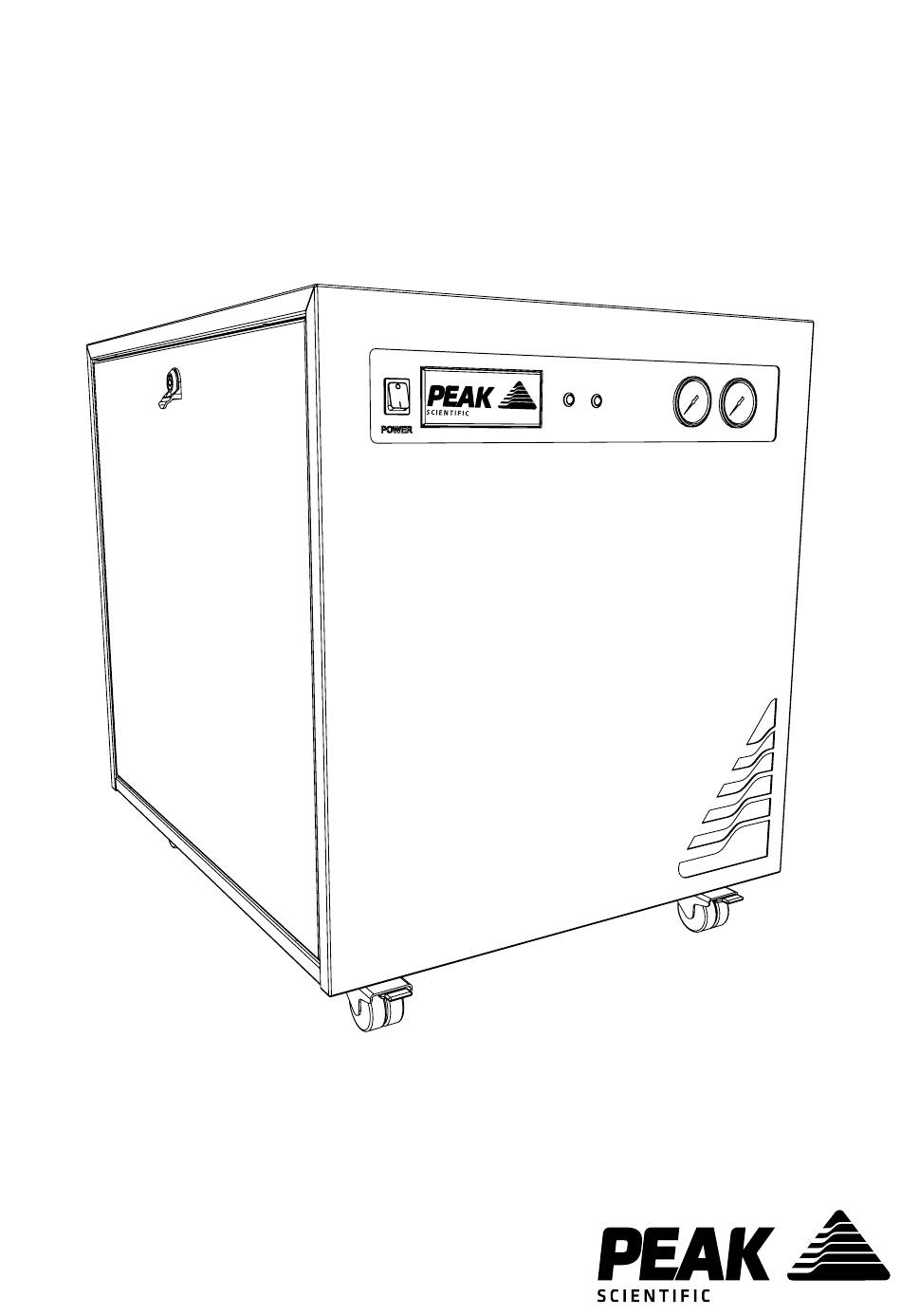

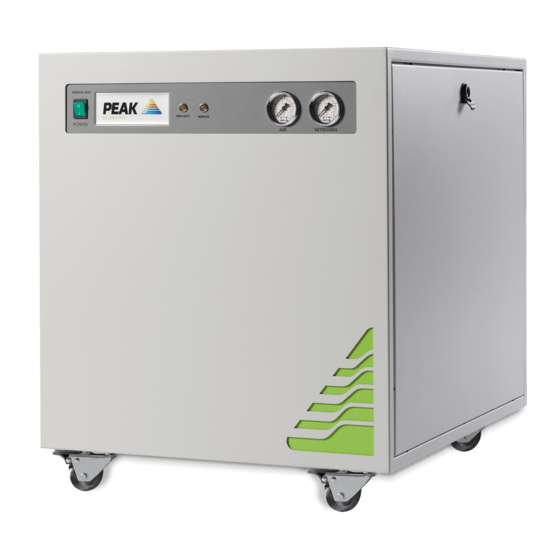

- Page 1 Genius 1025 User Manual Genius1025 User Manual Rev 6 RSID 2859 EN 15/11/21...
-
Page 2: Table Of Contents
Safety Notices Symbols Safety Notice to Users EU Declaration of Conformity UK Declaration of Conformity WEEE Compliance Statement CSA Compliance Statement Technical Specification Genius 1025 Unpacking Fittings Kit Contents Installation Generator Environment Generator Overview General Dimensions Rear Connections Unit Controls... -
Page 3: Change History
Users can refer to the contents page to find the relevant information. Please review each of the following sections carefully. Thank you for selecting Peak Scientific to meet your gas generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or the Peak Partner from which you purchased your generator. -
Page 4: Warranties And Liabilities
Warranties and Liabilities 1. The Company warrants that it has title to the Goods. 2. Subject to the provisions of this clause the Company warrants that the Goods shall comply in all material respects with any specification referred to in the Order Confirmation (as the same may be amended) and shall, subject thereto, be free from defects in material and workmanship for the lesser of a period of twelve months from the date of delivery or thirteen months from the date of dispatch... -
Page 5: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 6: Eu Declaration Of Conformity
• Restriction on the use of certain hazardous substances in electronic equipment (RoHS) Directive 2011/65/EU as amended by EU 2015/863. • FCC 47 CFR Part 15 class A Unintentional radiators; Conducted and Radiated emissions limits. Signed for and on behalf of Peak Scientific by Signed: Name: Fraser Dunn... -
Page 7: Uk Declaration Of Conformity
BS61326-1:2013 Electrical Equipment for Measurement , Control and Laboratory Use – EMC Requirements. • The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 (SI 2012 / 3032) as amended. Signed for and on behalf of Peak Scientific by Signed: Name: Fraser Dunn... -
Page 8: Weee Compliance Statement
Notes (PDF) produced by the Department for Business Innovation and skills for the UK and here for Europe. All PEAK products that are subject to the WEEE directive are compliant with the WEEE marking requirement. Such products are marked with the “crossed-out wheelie bin”... -
Page 9: Csa Compliance Statement
(UL) standards and certify the product to be in compliance to the relevant standards. Peak products are certified to the current in force revision of the following standards in order to cover both Canadian and United States requirements for “Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory use, Part 1: general Requirements”. -
Page 10: Technical Specification
Technical Specification Genius 1025 Environment Minimum Operating Ambient Temperature 5°C (41°F) Maximum Operating Ambient Temperature 30°C (86°F) Maximum Altitude 3000m Maximum Relative Humidity 80% Non-Condensing Minimum Storage Temperature* -20°C (-4°F) Maximum Storage Temperature* 60°C (140°F) *NOTE – When taken out of storage the Generator should be allowed to acclimatize at room temperature for a minimum of 3 hours before operation. -
Page 11: Unpacking
Check ‘SHOCKWATCH’ and ‘TIP-N-TELL’ labels for signs of rough handling prior to unpacking. Any damage should be reported immediately to the carrier and Peak Scientific or the Peak Partner from where the unit was purchased. Follow the unpacking instructions posted on the side of the crate. It will require two people to remove the unit from the shipping crate and to manoeuvre the generator to the desired location. -
Page 12: Fittings Kit Contents
Fittings Kit Contents Supplied in the Fittings Kit are all the fittings required to connect the generator to the application. The contents of the Fittings Kit are as follows: ” Teflon Tubing x 9m 1. ¼ 2. 6mm PE Tubing x 3m ”... -
Page 13: Installation
Installation Generator Environment The generator should be situated in a well ventilated environment, with at least a 75mm (3”) air gap all around it and should be positioned such that it can be easily disconnected from the mains supply if required.The generator is designed for indoor use only. -
Page 14: Generator Overview
Generator Overview General Dimensions 600 mm / 23.6” 750 mm / 29.5” The generator must always be placed on a flat, level surface. Failure to do so will affect the performance of the generator. WARNING Page 14... -
Page 15: Rear Connections
Rear Connections 6mm Push-Fit Fitting ¼" Compression Fitting Mains Cable N IT R O G EN A IR Unit Controls Nitrogen Pressure Gauge Dry Air Pressure Gauge Service LED High Duty LED Power Switch Ensure all inlets and outlets are connected to correct sources and applications. -
Page 16: Drain Connection
NOT have an air tight seal as water and air are expelled at pressure. CAUTION Peak Scientific have tested and approved the use of the following drain bottle available via PerkinElmer: PN: N0690271 CAP ASSY-ZOD DRAIN BOTTLE PN: 09200486 BOTTLE- WIDE MOUTH 15L HDPE When using this drain bottle, please note below recommendations: 1. -
Page 17: Electrical Connection
The voltmeter should be checked prior to the initial purge of the system. If the reading is 219V or less, then we would highly recommend fitting a Dual Tap Transformer 06-3200. This can be ordered directly from Peak Scientific. Page 17... -
Page 18: Start-Up Sequence
Start-Up Sequence Before the Generator is connected to the application, the Generator should be operated in isolation (i.e. not connected to the application) for thirty minutes. This is to ensure any impurities present are purged from the system. Failure to do this may harm the application. CAUTION Following the voltage check, (see Page 16), the unit should be switched off and silencers fitted to each of the three outlet ports of the output panel (ref Install Guide). -
Page 19: Connecting To The Application
⁄ ” I/D). Tubing and fittings not supplied in the fittings kit. > 40 metres: Please contact Peak Scientific with the relevant distance and we will calculate the flow resistance and the tubing size required. A combination of ¼ ”/ ⁄... -
Page 20: Normal Operation
Unusual Operation If at any time the generator begins to emit excessive noise or vibration, then it should be switched off and you should contact Peak Scientific or the Peak Partner from which the generator has been purchased. Page 20... -
Page 21: Service Requirements
Service Requirements Service Schedule Purchase Interval Component Visit 12 Months Genius 1025 Annual Maintenance Kit* www.peakscientific.com/ordering * Please quote your generator serial number when ordering your Annual Maintenance Kit to ensure selection of the appropriate kit for your generator. Page 21... -
Page 22: Service Indication
Service Indication Reset Once the service has been completed the Service Indication LED can be reset in the main control PLC. This will be performed by the Peak Service Engineer or trained service representative that completes the service operation. Page 22... -
Page 23: Peak Protected
Peak Protected With Peak Scientific you invest in not only a product but peace of mind. With a network of certified Peak engineers stationed throughout the globe, Peak’s rapid response team are never far away and our commitment is to keep your generator running day in, day out, protecting your laboratory workflow. -
Page 24: Cleaning
Cleaning Clean the outside of the generator only using warm soapy water and a clean damp cloth. Ensure all excess fluid is thoroughly removed from the cloth prior to use. Cleaning should only be undertaken with the power switched off and the power cord removed from the rear of the generator. -
Page 25: Troubleshooting
Troubleshooting Problem Possible Solution • Ensure power cord is plugged into the Generator and that the power socket is turned on. The Generator will not switch on and the power switch does not illuminate. • Check the fuse in the power cord plug. •... - Page 26 See our enclosed Peak [Protected] leaflet for further information. Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.com.
