Peak NM20ZL Installation & User Manual

Peak NM20ZL Installation & User Manual

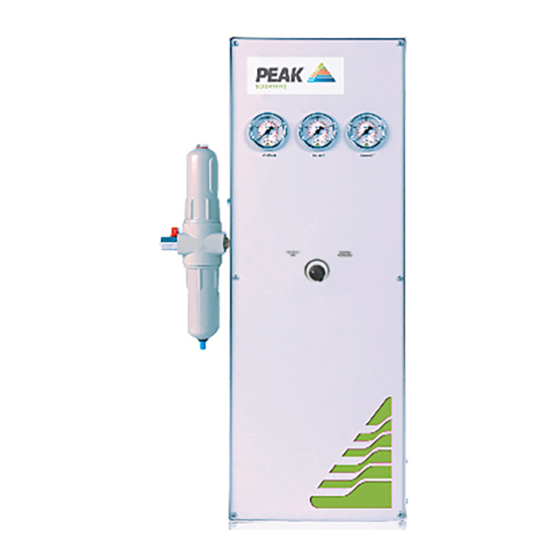

High purity gas generator for api range gas station (wall mounted system)

Advertisement

Quick Links

PEAK
Scientific Instruments Ltd
Instructions for use Manual
UK
Fountain Crescent
Inchinnan Business Park
Inchinnan
Renfrew PA4 9RE
Scotland
UK
Tel.
+44 (0) 141 812 8100
Fax.
+44 (0) 141 812 8200
info@peakscientific.com
www.peakscientific.com
NM20ZL User Guide Issue 2
Installation & User Guide
High Purity Gas Generator
API Range
NM20ZL Gas Station
(Wall Mounted System)
USA
19 Sterling Road
Suite #8
Billerica
MA 01862
USA
Tel.
+1-866-647-1649
+1-866-732-5427
Fax.
+1-866-647-1649
usasupport@peakscientific.com
High Purity Nitrogen Generator
For
th
20
September 2007
INDIA
PH-5B, Shantinivas Apts
12-7-295, METTUGUDA
Hyderabad, 500 017
Andhrapradesh
INDIA
Tel.
+91 40 2782 0047
Fax.
+91 40 2783 2441
info@peakscientific.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NM20ZL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Peak NM20ZL

  • Page 1 MA 01862 Andhrapradesh Scotland INDIA Tel. +1-866-647-1649 Tel. +91 40 2782 0047 Tel. +44 (0) 141 812 8100 +1-866-732-5427 Fax. +91 40 2783 2441 Fax. +44 (0) 141 812 8200 Fax. +1-866-647-1649 info@peakscientific.com info@peakscientific.com usasupport@peakscientific.com www.peakscientific.com NM20ZL User Guide Issue 2...
  • Page 2: Document History

    PEAK High Purity Nitrogen Generator Scientific Instruments Ltd Instructions for use Manual September 2007 Document Change History Rev. No. Changed Initials Date Document Created 20/09/07 Included new design of cabinet and updated pneumatic 18/06/08 diagram NM20ZL User Guide Issue 2...
  • Page 3: Warranty Statement

    SAFETY NOTICE TO USERS These instructions must be read thoroughly and understood before installation and operation of your Peak Gas Generator. When handling, operating or carrying out any maintenance, personnel must employ safe engineering practices and observe all relevant local heath and safety requirements and regulations.
  • Page 4: Table Of Contents

    Instructions for use Manual September 2007 Contents Page No Document History Warranty Statement Safety Notice To Users Introduction Unpacking & Installation Location Air Connection Principle of Operation Commissioning Maintenance Schedule Technical Specifications Pneumatic Diagram Maintenance Log Notes NM20ZL User Guide Issue 2...
  • Page 5: Introduction

    September 2007 Introduction The Peak Scientific Instruments Ltd NM20ZL Gas Station is designed specifically for use with API LC/MS Instruments. The generator is fitted with manual switch which allows the generator to switch source and exhaust as described in photo spray mode.
  • Page 6: Air Connection

    Source Gas connection at the rear of the generator using ¼” tubing as above. NB: - to minimize pressure losses position the Tee as close to the Mass Spectrometer as possible. NM20ZL User Guide Issue 2...
  • Page 7: Principle Of Operation

    September 2007 Principle of Operation Peak Scientific Instruments NM20ZL Generators utilize two of air preparation membranes to produce the required Gas outputs. The Nitrogen side of the generator employs “Hollow Fibre Membrane” Technology to efficiently separate Nitrogen from other gases present in ambient air. An overview of this process can be seen below.
  • Page 8: Commissioning

    Exhaust Gas 8 ltr/min - 60 psig The above settings should allow the NM20ZL to be operated with all standard configurations for the Applied Biosystems Api range of LC/MS/MS instruments. Should the above settings not provide sufficient flow or pressure for your application please contact the factory for assistance.
  • Page 9: Maintenance Schedule

    ANY filter bowl. Failure to do this may cause injury. Active Carbon Element (00-4427) Coalescing Element (00-4426) Autodrain (02-4485 The filter housing is removed by un-screwing in a counter clockwise direction. NM20ZL User Guide Issue 2...
  • Page 10 The Air supply to Generator MUST be turned OFF and the Generator MUST be de- pressurised prior to attempting to remove ANY filter bowl. Failure to do this may cause injury. Active Carbon Element (00-4425) The filter housing is removed by un-screwing in a counter clockwise direction. NM20ZL User Guide Issue 2...
  • Page 11: Technical Specifications

    Breathing Air Inlet Filter Elements 00-4426 00-4427 Active Carbon Filter Element 00-4425 Auto drain 02-4485 General Dimensions W x D x H 27 x 20 x 76 (inches) (10 x 8 x 30) Shipping Weight (lbs) (55) NM20ZL User Guide Issue 2...
  • Page 12: Pneumatic Diagram

    PEAK High Purity Nitrogen Generator Scientific Instruments Ltd Instructions for use Manual September 2007 Pneumatic Diagram NM20ZL User Guide Issue 2...
  • Page 13: Maintenance Log

    PEAK High Purity Nitrogen Generator Scientific Instruments Ltd Instructions for use Manual September 2007 Maintenance Log Model- NM20ZL. Serial number Work Done Remarks Date Name NM20ZL User Guide Issue 2...
  • Page 14: Notes

    PEAK High Purity Nitrogen Generator Scientific Instruments Ltd Instructions for use Manual September 2007 Notes: NM20ZL User Guide Issue 2...

Table of Contents
