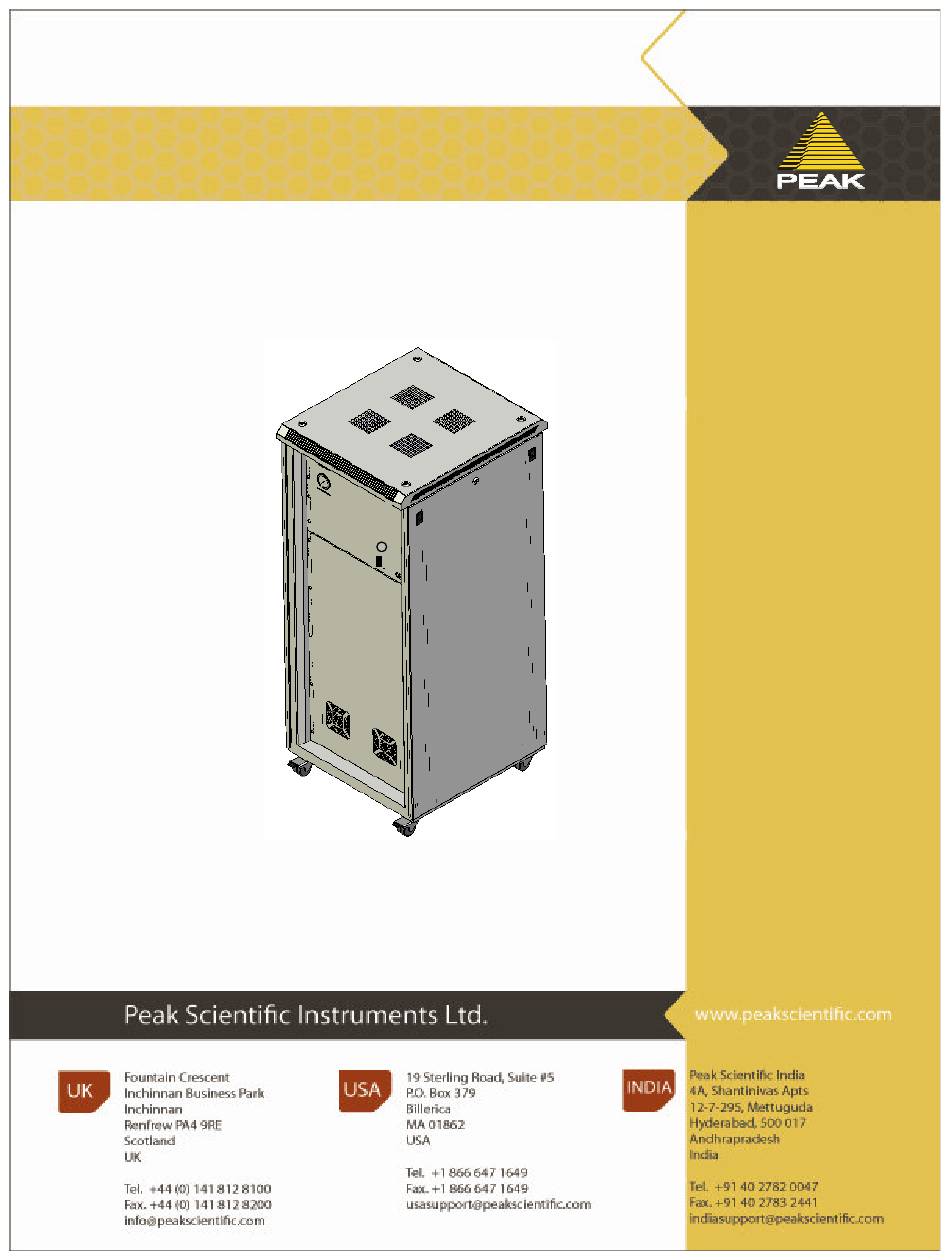

NM360L- Nitrogen Gas Generator UM – NM360L Contents Page No Document History Warranty Statement Safety Notice to Users Declaration of Conformity Air Connection Principle of Operation Commissioning Maintenance Schedule Technical Specifications Pneumatic Diagram Over Dimension Maintenance Log Notes...
SAFETY NOTICE TO USERS These instructions must be read thoroughly and understood before installation and operation of your Peak Scientific NM360L. Use of the Generator in a manner not specified by Peak Scientific MAY impair the SAFETY provided by the equipment.
NM360L- Nitrogen Gas Generator UM – NM360L AIR CONNECTION The Nitrogen Generator should be connected to a clean, dry, OIL - FREE source of compressed air. A minimum pressure of 120 psig is required for efficient operation of the Generator. Any doubts as to the suitability of your compressed air supply should be referred to the factory for advice.
Principle of Operation Principle of Operation Peak Scientific Instruments Membrane Generators utilise Hollow Fibre Membrane Technology to efficiently separate Nitrogen from other gases present in ambient air. The membrane operates on the principle of selective permeation in that so-called “Fast” gases such as H O, CO &...
NM360L- Nitrogen Gas Generator UM – NM360L Commissioning Commissioning With the Generator installed as described earlier. Disconnect the Nitrogen Outlet connection to allow the generator to vent to atmosphere until the unit is stabilized then open the air supply. The Generator has been pre-set in the factory to give the specified output flow-rate and pressure.
NM360L- Nitrogen Gas Generator UM – NM360L Maintenance Schedule WARNING: Servicing and/or repair of the Generator should only be undertaken by a TECHNICALLY COMPETENT PERSON with the Generator in a safely isolated condition. Due to the simplicity of the design and the small number of moving parts the NM Series Nitrogen Generator will have a long and trouble free life.
Page 10
NM360L- Nitrogen Gas Generator UM – NM360L Maintenance Inlet Filter / Separator Elements These should be changed at intervals as indicated below. In addition filter bowls should be cleaned and, the operation of the auto-drains should be checked. The Air supply to Generator MUST be turned OFF and the Generator MUST be de-pressurised prior to attempting to remove ANY filter bowl.
Page 11
NM360L- Nitrogen Gas Generator UM – NM360L Maintenance RAC Filter The Element is as shown, and should be changed at 12-month intervals. The Air supply to the Generator MUST be turned OFF and the Generator MUST be de-pressurised prior to attempting to remove ANY filter bowl.
NM360L- Nitrogen Gas Generator UM – NM360L Technical Data General Details Minimum Operating Ambient Temperature C (41 Maximum Operating Ambient Conditions C (86 F) 70% RH(max) Inlet Conditions (Free of oil and bulk moisture) Minimum Air Inlet Pressure 120 psig (8.27 Barg) Maximum Air Inlet Pressure 145 psig (10.0 Barg)
