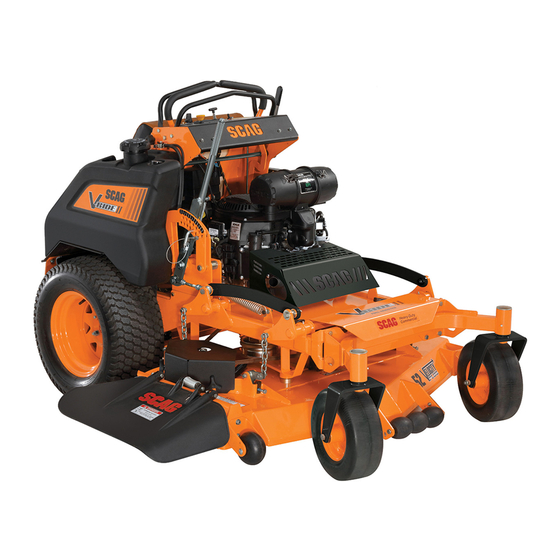

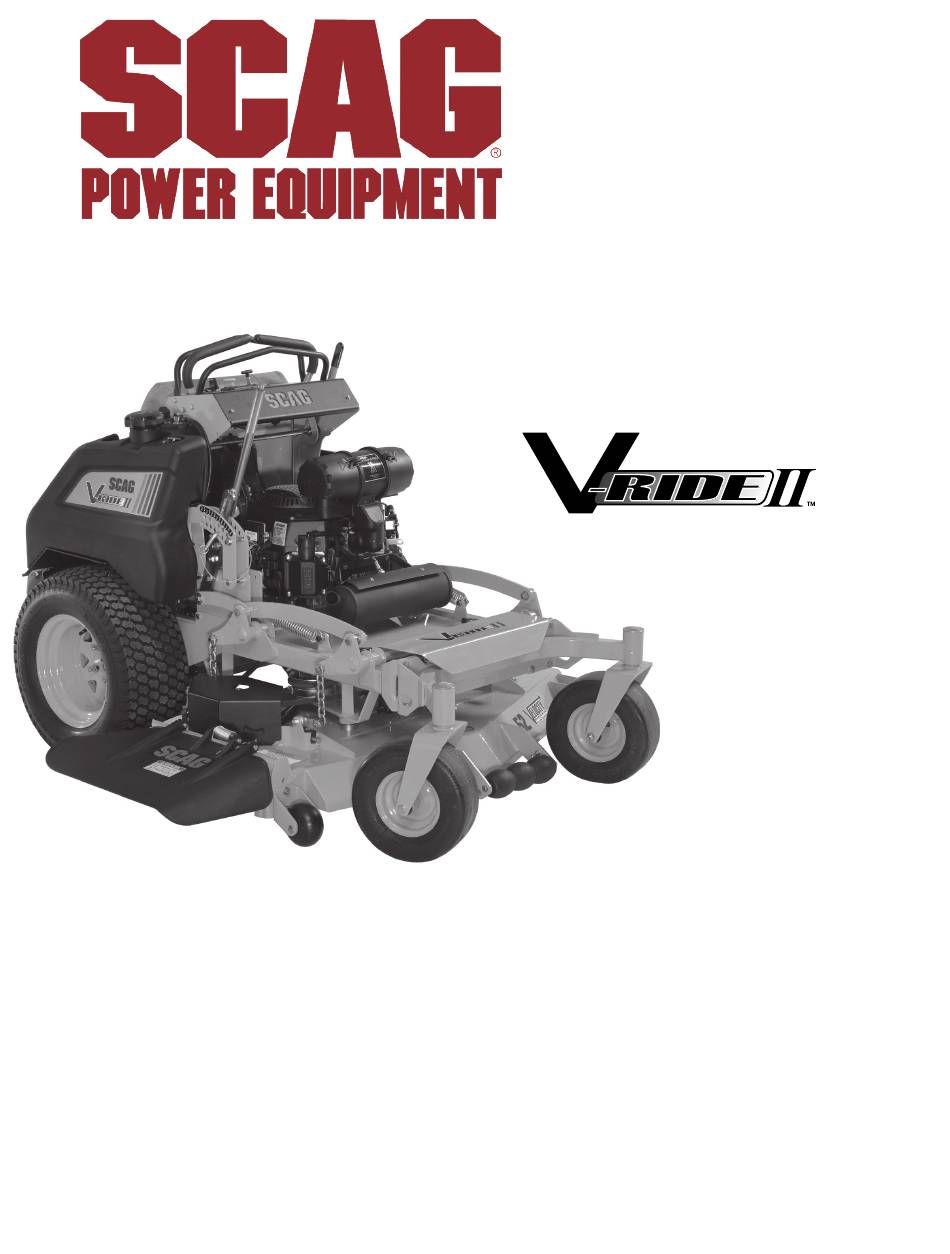

Congratulations on owning a Scag mower! This manual contains the
operating instructions and safety information for your Scag mower. Reading
this manual can provide you with assistance in maintenance and adjustment
procedures to keep your mower performing to maximum efficiency. The
specific models that this book covers are listed on the inside cover. Before
operating your machine, please read all the information enclosed.
© 2020
Scag Power Equipment
Division of Metalcraft of Mayville, Inc.
OPERATOR'S
MANUAL
Model:
SVRII-32A-16FX
SVRII-36A-19FX
SVRII-48V-22FX
SVRII-52V-25CV-EFI
SVRII-52V-26FT-EFI
SVRII-52V-37BV-EFI
SVRII-61V-25FX
SVRII-61V-31CV-EFI
SVRII-61V-37BV-EFI
SVRII-61V-38FX-EFI
Part No. 03467
Printed 10/2020
Printed in USA
