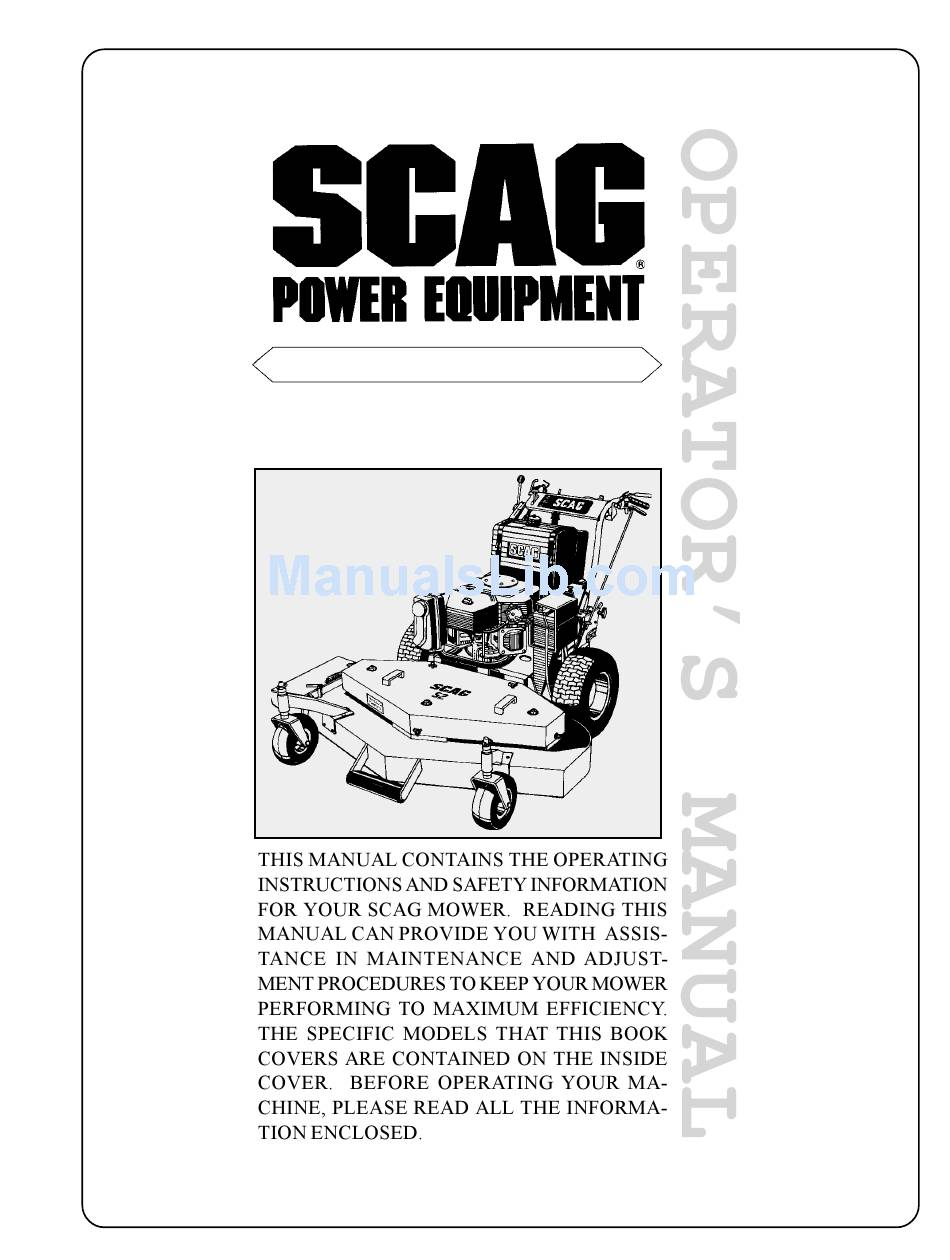

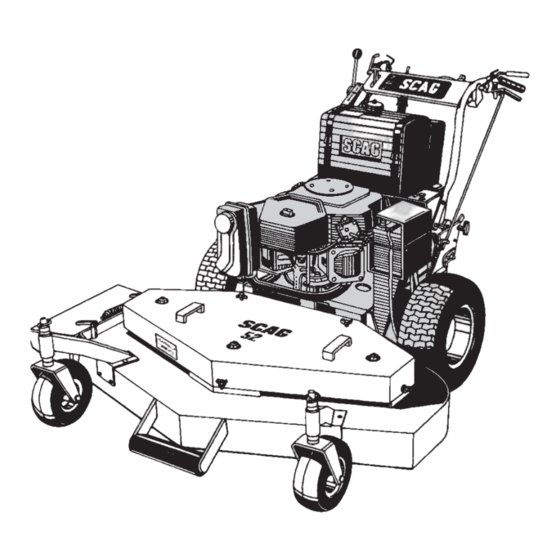

  • Page 1 MODEL SWZ PART NUMBER 03044...
  • Page 2 WARNING: REMEMBER - YOUR MOWER IS ONLY AS SAFE AS THE OPERATOR! Hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of the personnel involved in the operation, transport, maintenance, and storage of the equipment.

  • Page 3: Signal Words

    SIGNAL WORDS INTRODUCTION GENERAL SAFETY INSTRUCTIONS WARNING: CAUTION:...

  • Page 4: Before Operating

    WHILE OPERATING BEFORE OPERATING...

  • Page 5: Maintenance And Storage

    MAINTENANCE AND STORAGE WARNING: DO NOT operate on steep slopes. To check a slope, attempt to back up it (with the cutter deck down). If the machine can back up the slope without the wheels slipping, reduce speed and use extreme caution. ALWAYS FOLLOW OSHA APPROVED OPERATION.

  • Page 6: Mower Operation

    MOWER OPERATION -NOTE- INITIAL RUN-IN PROCEDURES (FIRST DAY OF USE OR APPROXI- MATELY 10 HOURS) -NOTE-...

  • Page 7: Cutter Deck Belt Adjustments

    CUTTER DECK BELT ADJUSTMENTS WARNING: -NOTE- -NOTE- END OF L-SHAPED BRACKET BELT "J" BOLT WASHER CUTTER DECK DRIVE BELT TENSION ALIGNMENT IDLER - L.H. SC400G Figure 2 Deck Drive Belt Adjustment -NOTE- ire pressure can be adjusted for Dump Valve Levers (normal position) Figure 1 Dump Valves SGB112...

  • Page 8: Cutter Deck Adjustments

    Washer LOW CUT (1 3/4"- 3") Deck MID RANGE "J" Bolt (2 1/2"- 3 3/4") HIGH CUT (3 1/4"- 4 1/2") Belt Figure 3. Cutter Deck Belt Adjustment R.H. CUTTER DECK HEIGHT ADJUSTMENT SC405G Figure 4 Cutting Height Adjustment CUTTER DECK ADJUSTMENTS SPACERS REPOSITIONING SPACERS SC406G...

  • Page 9: Neutral Adjustment

    ANGLE BLADE BACK DO NOT CUT IN X MUST NOT EXCEED 1/3 BLADE WIDTH SC4O8G Figure 7. Blade Sharpening NEUTRAL ADJUSTMENT Steering Control Bolts SC407G Spring Bellcrank Figure 6. Blade Spacers Handle SC160G Figure 8 Neutral Adjustment CUTTER BLADES -NOTE-...

  • Page 10: Steering Control Rod Adjustment

    STEERING CONTROL ROD ADJUSTMENT -NOTE- TRACKING ADJUSTMENT -NOTE- PARKING BRAKE CAUTION: Speed Adjustment Steering Control Rod Swivel Bearing Joint Speed Adjustment Bearing Lever Bellcrank Speed Control Spring SC161G...

  • Page 11: Lubrication And Maintenance

    LUBRICATION & MAINTENANCE BREAK-IN 8 HOURS (DAILY) 40 HOURS (WEEKLY) 100 HOURS (BIWEEKLY) 500 HRS OR ANNUALLY COMMENTS PROCEDURE...

  • Page 12: Troubleshooting Cutting Conditions

    TROUBLESHOOTING CUTTING CONDITIONS CAUSE CURE CONDITION Stringers - Occasional Low engine RPM Run engine at full 3600 RPM Blades of Uncut Grass Ground speed too fast Slow speed to adjust for conditions Wet grass Cut grass after it has dried out Dull blades, incorrect sharpening Sharpen blades Deck plugged, grass accumulation Clean underside of deck...

  • Page 13: Troubleshooting

    TROUBLESHOOTING CAUSE CURE CONDITION Uneven Cut on Flat Lift worn off of blade Replace blade Ground - Wavy High-Low Blade upside down Mount with cutting edge toward Appearance, ground Scalloped Cut, or Rough Contour Deck plugged,grass accumulation Clean underside of deck Too much blade angle (deck pitch) Adjust pitch and level Deck mounted improperly See your authorized SCAG dealer...
  • Page 14 TROUBLESHOOTING CAUSE CURE CONDITION Scalping - Blades Low tire pressures Check and adjust pressures Hitting Dirt or Cutting Very Close to Ground speed too fast Slow speed to adjust for conditions the Ground Cutting too low May need to reduce ground speed, raise cutting height, change direction of cut, and/or change pitch and level Rough terrain...

  • Page 15: Technical Specifications

    TECHNICAL SPECIFICATIONS ENGINES General Type: Heavy duty industrial/commercial Brand: Kohler, Kawasaki, Briggs & Stratton Models: Kohler CV14T, CVE 20;Kaw. FC420V;B&S 303776, 350777 Horsepower: Kohler 14HP& 20HP; Kaw. 14HP; B&S 16HP & 18HP; Kaw. 17HP Type: 4 cycle gas, vertical shaft engines Displacement: Kohler: 14HP = 398cc, 20 HP= 624 cc Kawasaki: 14HP = 423cc, 17HP = 494cc...
  • Page 16 TECHNICAL SPECIFICATIONS (CON'T) CUTTER DECKS SWM 36, SWM 48, SWM 52, SWM 61, SWM 72 Type: Out-front design with anti-scalp rollers Construction: SWM36,48: 7-gauge steel with 7-gauge (3/16") steel skirt SWM52,61,72:10-gauge steel with 7-gauge (3/16") steel skirt Cutting Width: 35.5" (90.2 cm), 48.0 (122.0 cm), 52.0 " (132.0 cm), 61.0 "...
  • Page 17 36" CUTTER DECKS SC409GC...
  • Page 18 36" CUTTER DECK Ref. Part Ref. Part No. No. Description No. No. Description 46850 Cutter Deck (Includes decals) 04041-07 Flat Washer, 3/8" (.391 x .938 x .105) 46631 Cutter Spindle Assembly 04029-03 Wing Nut, 3/8-16 43312 Spacer, Outside 48924 Pulley 48307-08 Tapered Nut, 5/16-24 48926...
  • Page 19 48", 52", 61", & 72" CUTTER DECKS 55 54 SC151GC...
  • Page 20 48", 52", 61", & 72" CUTTER DECKS Ref. Part Ref. Part No. No. Description 48 52 61 72 No. No. Description 48 52 61 72 48923 Pulley, Double 46851 Cutter Deck (Includes decals) 48940 Pulley, Double 46751 Cutter Deck (Includes decals) 48966 Pulley, Double 46752...

  • Page 21: Engine Deck

    ENGINE DECK BV Only ELECTRIC START ONLY 030441698...
  • Page 22 ENGINE DECK 14KA 14KH 16BV 20CVE 14KA 14KH 16BV 20CVE Ref. Part Ref. Part 14KAE 16BVE 14KAE 16BVE Description Description 18BV 18BV 48842 Engine 14KA Kawasaki 481052 Engine 14KAE Kawaski 04001-08 Hex Head Bolt, 5/16-18 x .75" 48844 Engine 14KH Kohler 04040-14 Flat Washer 1/4"...

  • Page 23: Drive And Brake Components

    DRIVE AND BRAKE COMPONENTS 3, 3A 10, 10A 030441598...
  • Page 24 DRIVE AND BRAKE COMPONENTS 14KA 14KH 16BV 20CVE 14KA 14KH 16BV 20CVE Ref. Part Ref. Part 14KAE 16BVE 14KAE 16BVE Description Description 18BV 18BV 04050-02 Retaining Ring, 3/4 Ext. "E" 04002-05 Hex Head Bolt, M10-1.5 x 65 04001-19 Bolt, 3/8-16 x 1" Hex Head 04001-150 Hex Head Bolt, 7/16-20 x 2.75"...

  • Page 25: Handle Assembly

    HANDLE ASSEMBLY REF. 390S0010...
  • Page 26 HANDLE ASSEMBLY 14KA 14KH 16BV 20CVE 14KA 14KH 16BV 20CVE Ref. Part 14KAE 16BVE Ref. Part 14KAE 16BVE Description 18BV Description 18BV 46938 Upper Handle Wlmt. W/Decals 04001-69 Hex Head Bolt, 5/16-18 x 1-3/4" 46939 Upper Handle Wlmt. W/Decals 48494-02 Spring, Return 42675 Quadrant, Speed Control 481517-02 Knob, 5/16-18...

  • Page 27: Hydraulic Assembly

    HYDRAULIC ASSEMBLY 030441798...
  • Page 28 HYDRAULIC ASSEMBLY Ref. Part Number Description 14KA 14KAE 14KH 16BV 16BVE 18BV 20CVE 48535 Cap, Oil Reservoir 46618 Oil Reservoir 46619 Oil Reservior 48484-01 Elbow, 90 deg. Female 1/4 NPT to 1/4 JIC Male 48353-02 Coupling, 7/16-20 SAE Flare Swivel to 1/4" Hose Push On 48482 Hose, 1/4"...

  • Page 29: Hydraulic Pump Assembly

    HYDRAULIC PUMP ASSEMBLY SC165G...
  • Page 30 HYDRAULIC PUMP ASSEMBLY Ref. Part Number Description HG 2513017 Housing Kit (Incl. Housing, Journal Bearing) HG 2513016 End Cap HG 9004800-2506 Straight Headless Pin HG 9007314-0810 Socket Head Screw HG 2003067 End Cap Gasket HG 2513027 Charge Pump Kit (Incl. Charge Cover, Gerotor Assy., O-Ring) HG 50273 Gerotor Assembly HG 9004101-1340...
  • Page 31 REGULATOR NEUTRAL INTERLOCK GREEN BLACK BLACK BLUE WHITE BLUE WHITE YELLOW BLADE CLUTCH FUSE INSTRUMENT PANEL HARNESS GROUND POS. BATTERY SOLENOID...
  • Page 32 BLADE CLUTCH NEUTRAL INTERLOCK GROUND BLACK ENGINE BLACK BLUE WHITE YELLOW WHITE WHITE YELLOW GREEN INSTRUMENT PANEL HARNESS FUEL SOLENOID (B & S) SOLENOID SOLENOID MOUNTING SOLENOID...

  • Page 33: Wire Harness

    ENGINE DECK BLADE CLUTCH WIRE HARNESS - KOHLER, NEUTRAL (SINGLE CYLINDER) INTERLOCK GROUND BRIGGS VANGUARD & 17 HP Kawasaki PART NO. 481073 BLACK BLACK BLUE WHITE WHITE YELLOW WIRE HARNESS ADAPTER - ENGINE INSTRUMENT SC421G PANEL HARNESS ENGINE DECK TRANSMISSION WIRE HARNESS - ENGINE GROUND...

  • Page 34: Handle Wire Harness - Electric Start

    HANDLE WIRE HARNESS - ELECTRIC START PART NO. 481407 FUSES RELAY MOWER BRAKE ENGAGE KEYED SWITCH SWITCH SWITCH TERMINAL BLACK GREEN BLACK BLUE OPERATOR PRESENCE WHITE TO ENGINE SWITCH DECK WIRE YELLOW HARNESS HOURMETER SC415G MOWER ENGAGE KEY SWITCH SWITCH MOUNTING MOUNTING HOURMETER WIRE HARNESS WITH RELAY...

  • Page 35: Handle Wire Harness - Manual Start

    ENGINE DECK WIRE HARNESS - NEUTRAL 14HP KAWASAKI INTERLOCK PART NO. 481074 ENGINE REGULATOR BLACK BLACK BLUE WHITE WHITE BLADE YELLOW CLUTCH INSTRUMENT PANEL HARNESS GROUND SC417G HANDLE WIRE HARNESS - MANUAL START PART NO. 481406 MOWER ENGAGE KEYED BRAKE SWITCH SWITCH TERMINAL...

  • Page 36: Operating Machine

    REPLACEMENT DECALS & INFORMATION HEAVY DUTY COMMERCIAL 48072 48072 48314 WARNING DANGER ROTATING BLADES AND BELTS KEEP HANDS, FEET & CLOTHING CLEAR KEEP ALL GUARDS IN PLACE SPINNING BLADE 36" - 48316 SHUT OFF ENGINE & DISENGAGE BLADE CLUTCH BEFORE SERVICING KEEP CLEAR 48"...
  • Page 37 REPLACEMENT DECALS & INFORMATION PARKING CHOKE BRAKE FAST SLOW 481415 PARKING BRAKE FAST SLOW 481423 PARKING BRAKE FAST SLOW 481438...
  • Page 38 TRACKING ADJUSTMENT FAST CONTROL ROD ADJUSTMENT REVERSE NEUTRAL OPERATOR'S MANUAL ADJUSTMENT 481425 FORWARD 481425 SEE OPERATOR'S MANUAL SPEED 481080 CONTROL SLOW NEUTRAL 481124 481124 48514 - 20" 48555 - 16"...
  • Page 39 TECHNICAL SPECIFICATIONS ENGINES General Type: Heavy duty industrial/commercial Brand: Kohler, Kawasaki, Briggs & Stratton Models: Kohler CV14T, CVE 20;Kaw. FC420V;B&S 303776, 350777 Horsepower: Kohler 14HP& 20HP; Kaw. 14HP; B&S 16HP & 18HP; Kaw. 17HP Type: 4 cycle gas, vertical shaft engines Displacement: Kohler: 14HP = 398cc, 20 HP= 624 cc Kawasaki: 14HP = 423cc, 17HP = 494cc...
  • Page 40 TECHNICAL SPECIFICATIONS (CON'T) CUTTER DECKS SWM 36, SWM 48, SWM 52, SWM 61, SWM 72 Type: Out-front design with anti-scalp rollers Construction: SWM36,48: 7-gauge steel with 7-gauge (3/16") steel skirt SWM52,61,72:10-gauge steel with 7-gauge (3/16") steel skirt Cutting Width: 35.5" (90.2 cm), 48.0 (122.0 cm), 52.0 " (132.0 cm), 61.0 "...
