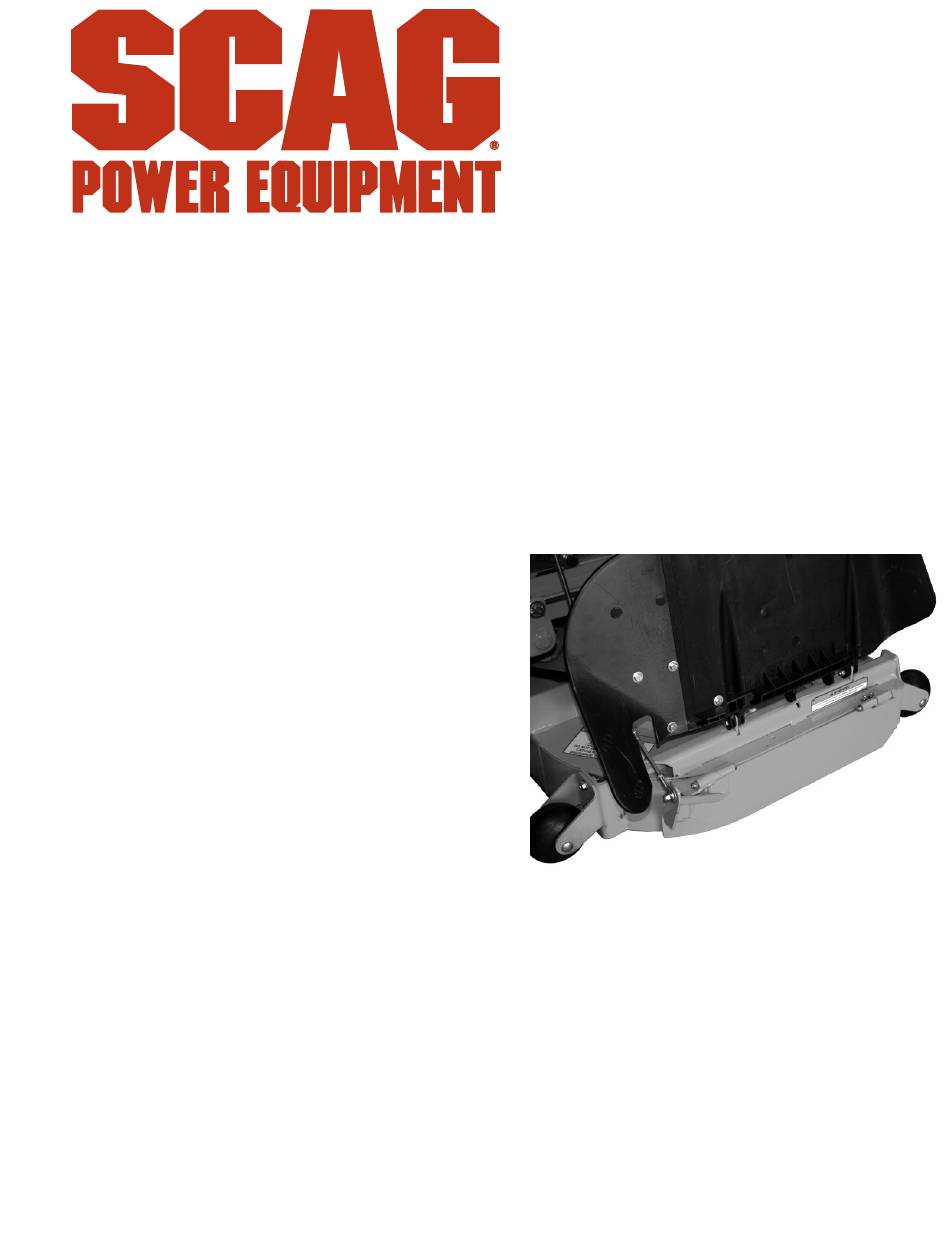

Electric Operator Controlled
Discharge Chute
Models:
STCII/SCZ-48V E-OCDC-RF
STCII/SCZ-52V E-OCDC-RF
STCII-61V E-OCDC-RF
STTII-52V E-OCDC-RF
SCZII/STTII-61V E-OCDC-RF
SCZII/STTII-72V E-OCDC-RF
SVRII-48V E-OCDC-RF
SVRII-52V E-OCDC-RF
SVRII-61V E-OCDC-RF
SVRXL-52V E-OCDC-RF
SVRXL-61V E-OCDC-RF
SVRXL-72V E-OCDC-RF
This manual contains the operating instructions, assembly instructions and safety
information for your Scag accessory. Reading this manual can provide you with
assistance in operation and installation procedures to keep your accessory
performing to maximum efficiency. The specific models that this book covers
are listed on the inside cover. Before operating your machine, please read all
the information enclosed in the operator's manual supplied with your mower.
© 2024
Scag Power Equipment
Division of Metalcraft of Mayville, Inc.
OPERATOR'S
MANUAL
PART NO. 03459 Rev 01
PRINTED 5/2024
PRINTED IN USA
