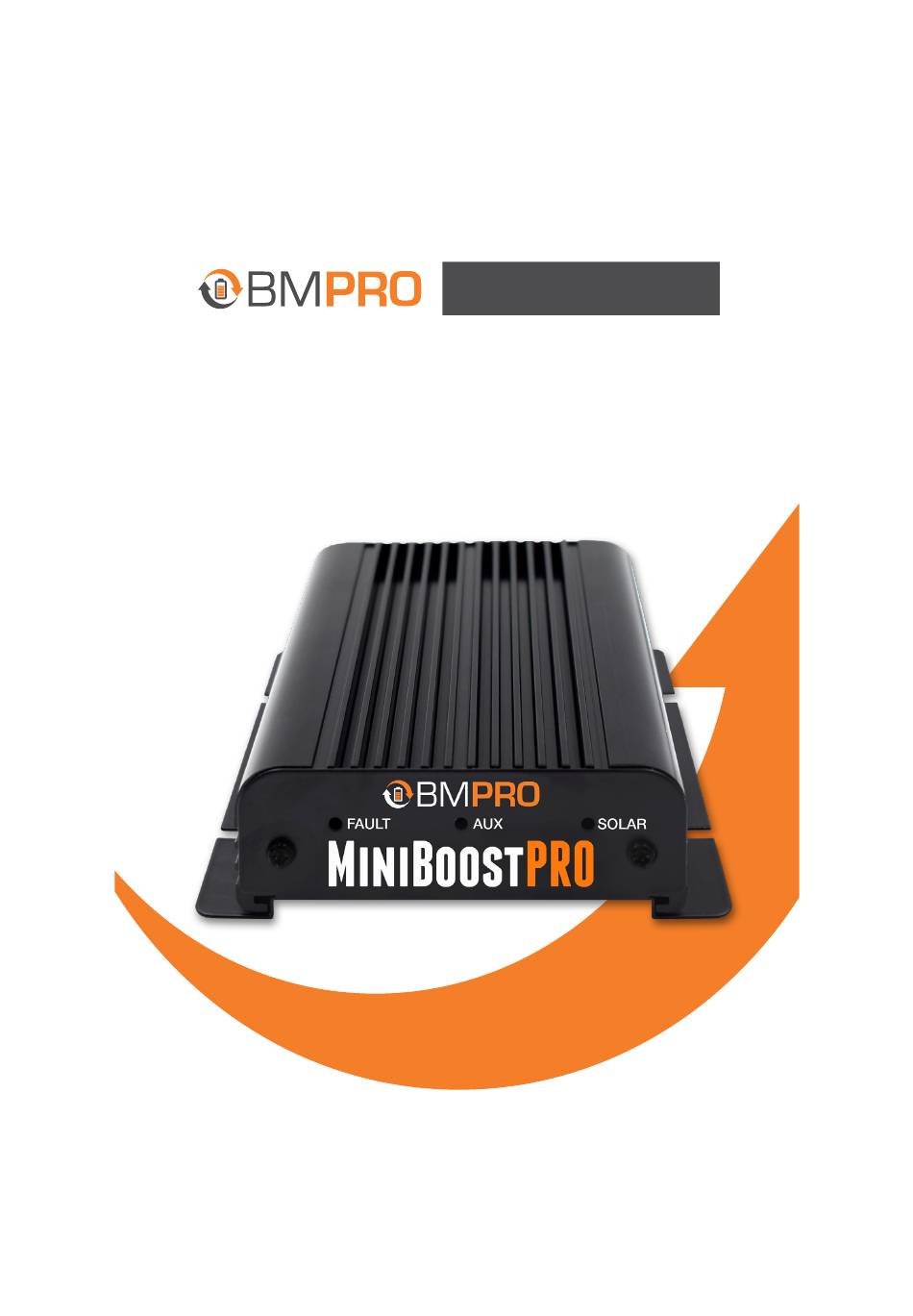

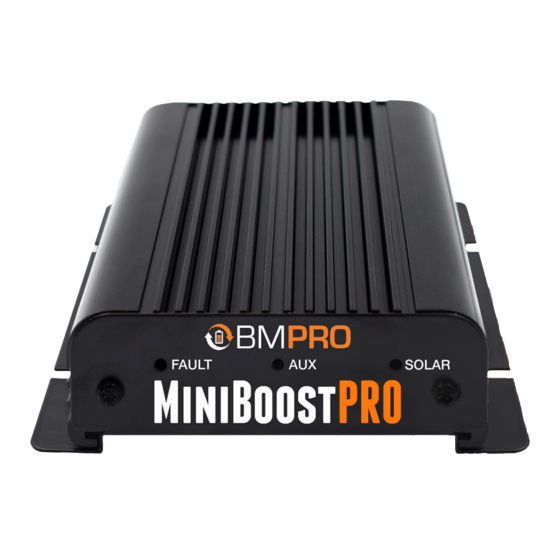

OWNER'S MANUAL
MiniBoostPRO
TEAMBMPRO.COM
More information https://www.caravansplus.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MiniBoostPRO and is the answer not in the manual?

Questions and answers

Related Manuals for BMPRO MiniBoostPRO

Summary of Contents for BMPRO MiniBoostPRO

  • Page 1 OWNER’S MANUAL MiniBoostPRO TEAMBMPRO.COM More information https://www.caravansplus.com.au...
  • Page 2 More information https://www.caravansplus.com.au...
  • Page 3 flung destinations, knowing you have control over your power needs. To learn more about the BMPRO range of products, please visit our website teambmpro.com TEAM BMPRO .COM...

  • Page 4: Safety Precautions

    Take care to remove unwanted metal objects from the vicinity of the battery and MiniBoostPRO. Remove any personal metal adornment such as chain, watch or ring before handling the battery and MiniBoostPRO.
  • Page 5 Do not immerse the MiniBoostPRO in water. The MiniBoostPRO is a high precision electronic product. It contains no user- serviceable parts inside. Do not try to dismantle, modify or repair it yourself.

  • Page 6: Table Of Contents

    SAFETY PRECAUTIONS ....4 ABOUT THE MINIBOOSTPRO ....8 TERMINOLOGY .
  • Page 7 BATTERY CHARGING .....18 PROTECTIVE FEATURES ....20 FAULT CODES .

  • Page 8: About The Miniboostpro

      9 2x 2A Automotive Fuse   COMPATIBLE BATTERY TYPES The MiniBoostPRO may be used to charge 12V batteries with capacities of 50-300AH and of the following chemistries: AGM/Wet, Gel and LiFePO4 (Lithium). WARNING Do not connect other types of Lithium batteries to the MiniBoostPRO.

  • Page 9: Description Of Parts

    (secondary). 2. Solar LED Blue LED illuminates when the 7. Common Negative MiniBoostPRO charges the Black cable to connect to the battery from its solar input. solar, primary and the battery’s secondary negative terminals.

  • Page 10: Installation Instructions

    INSTALLATION INSTRUCTIONS Installation of the MiniBoostPRO should be carried out only by a certified installer with caravan electrical experience. VENTILATION AND THERMAL CONSIDERATIONS The MiniBoostPRO may be installed in any orientation. To prevent overheating of the MiniBoostPRO, install the unit in a well-ventilated area that allows for continuous airflow around the unit.

  • Page 11: Wiring Instructions

    Management System such as the BatteryPlus35 or J35. If using a Power Management System, connect the MiniBoostPRO’s Batt Out and Common Negative cables to the positive and negative primary input. The MiniBoostPRO may be wired direct to the secondary battery via a protective fuse. More information https://www.caravansplus.com.au...

  • Page 12: Wiring Instructions For Standard Installation

    WIRING INSTRUCTIONS FOR STANDARD INSTALLATION More information https://www.caravansplus.com.au...

  • Page 13: Wiring Instructions With Bp35

    WIRING INSTRUCTIONS WITH BP35 More information https://www.caravansplus.com.au...

  • Page 14: Wiring Instructions With J35

    WIRING INSTRUCTIONS WITH J35 More information https://www.caravansplus.com.au...

  • Page 15: Fusing

    FUSING Fuse protection of the MiniBoostPRO is required at the primary positive terminals, battery positive terminals, battery chemistry selection cable and the ignition detect cable. The MiniBoostPRO’s recommended fuse for the primary positive and battery positive terminals is an automotive fuse (rating 40A) and for the battery chemistry and ignition detect cables, is an Automotive fuse (rating 2A).

  • Page 16: Battery Chemistry Selection

    BATTERY CHEMISTRY SELECTION The MiniBoostPRO’s green battery chemistry cable is used to select the battery chemistry. Setting the correct battery chemistry ensures that the appropriate voltage levels are set for charging (Table 3). Selecting 12V Gel Battery When using the...
  • Page 17 Selecting 12V LiFePO4 Battery When using the MiniBoostPRO to charge a 12V LiFePO4 Battery, connect the green wire to the secondary / output battery positive terminal. This will set the output voltage at 14.6V. Figure 4: Selecting the 12V LiFePO4...

  • Page 18: Battery Charging

    This enables the charge to deliver the maximum current, until the terminal voltage has risen to the battery’s pre-set level. CAUTION The MiniBoostPRO may get warm while the battery is being charged. Bulk Bulk is the MiniBoostPRO's primary charging stage where approximately 80% of charging occurs.
  • Page 19 SOURCE MODE DESCRIPTION Charging Solid green light Float Flashing green light Solid blue light, flashing green Charging light, solid red light Solar Flashing blue light, flashing Float green light, solid red light Solar & Aux Solid blue and green lights Charging Blending Flashing blue light and flashing...

  • Page 20: Protective Features

    PROTECTIVE FEATURES The MiniBoostPRO has the following built in protection features: Spark Free Protection If the MiniBoostPRO is not connected to a secondary battery, the unit provides prevention of sparking in the case of accidental short circuit on the output side.

  • Page 21: Fault Codes

    FAULT CODES If there is a fault with the MiniBoostPRO set-up that prevents the battery from charging, the red fault LED will illuminate and flash a code to describe the fault (Table 5). FLASHING FAULT SOLUTION SEQUENCE No source and...

  • Page 22: Servicing And Cleaning

    Only qualified service personnel may service the MiniBoostPRO. Do not attempt to service the MiniBoostPRO yourself, OR dismantle, modify or repair the MiniBoostPRO yourself; this will void your warranty. If your MiniBoostPRO requires servicing, please consult your BMPRO dealer or visit teambmpro.com for assistance.

  • Page 23: Faqs And Troubleshooting

    Can I use the MiniBoostPRO inside my engine bay? The MiniBoostPRO cannot be used inside an engine bay as it is rated to IP20. Does the MiniBoostPRO connect to home solar panels? No, the MiniBoostPRO will not connect if the voltage rating of your home solar panels is over 25V.

  • Page 24: Specifications

    SPECIFICATIONS MINIBOOSTPRO SPECIFICATIONS Auxiliary input voltage 9-15V DC Solar input voltage 9-25V DC Gel: 14.2V Output Voltage AGM/Wet: 14.4V LiFePO4/: 14.6V Float Voltage 13.6V Auxiliary Bypass: max. 30A Auxiliary Boost: max. 22A Output Current* Solar Charging: max. 30A (360W) Blending Charging: max. 30A Auxiliary/Primary Battery: <...
  • Page 25 More information https://www.caravansplus.com.au...

  • Page 26: Warranty Terms And Conditions

    7. BMPRO will not be liable for any costs, charges or expenses incurred in the process of returning a product in order to initiate a warranty claim...
  • Page 27 More information https://www.caravansplus.com.au...
  • Page 28 BMPRO TEAM customerservice@teambmpro.com BMPRO 19 Henderson Rd, Knoxfield VIC 3180 Australia .COM teambmpro.com More information https://www.caravansplus.com.au...
