INSTALL GUIDE
powered by
PLUS
TEAMBMPRO.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jaycommand Plus and is the answer not in the manual?

Questions and answers

Related Manuals for BMPRO Jaycommand Plus

Summary of Contents for BMPRO Jaycommand Plus

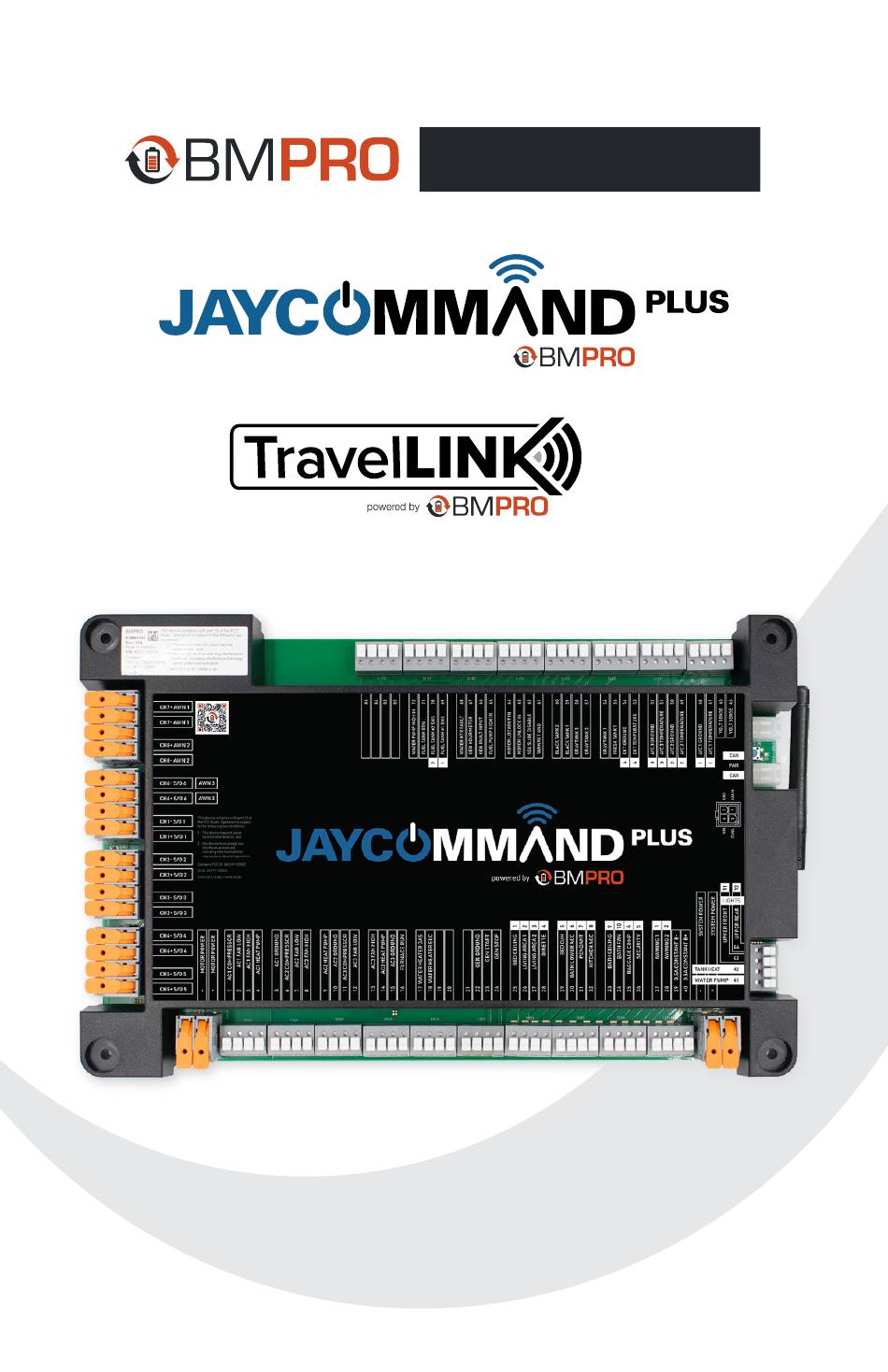

  • Page 1 INSTALL GUIDE powered by PLUS TEAMBMPRO.COM...

  • Page 2: Safety Precautions

    Copyright © 2025 REV 1.0 DISCLAIMER: BMPRO accepts no liability for any loss or damage which may occur from First published 2025-05-14 the improper or unsafe use of its products. Warranty is only valid if the unit has not been...
  • Page 3 WARNING Clean the housing of this product lightly with a dry or moist cotton cloth. Do not use alcohol, thinners, benzene or any other chemical cleaner. The system is a high precision electronic product. It contains no user-serviceable parts inside. Do not try to dismantle, modify or repair it yourself. Disassembly, service or repair by an unauthorized person will void the warranty.

  • Page 4: Information For The User

    This device must accept any interference received, including what may have cause undesired operation. WARNING Any changes or modification not expressly approved by BMPRO could void compliance of the product and the user’s authority to operate this equipment. Le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts...
  • Page 5 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency and energy.

  • Page 6: Quick Installation Guide Checklist

    QUICK INSTALLATION GUIDE CHECKLIST Install the Node in the RV Pg. 12 Complete Node power and wiring Pg. 12-17 , 35 Configuring RV model Pg. 18-25 Install the Controller in the RV Pg. 26 Install the Control Panel in the RV Pg.

  • Page 8: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS ..... 2 INFORMATION FOR THE USER ....4 QUICK INSTALLATION GUIDE CHECKLIST .

  • Page 10: About This Guide

    ABOUT THIS GUIDE This guide details the instructions required to install the components of the JAYCOMMANDPlus / TravelLINKPlus system in the RV. Installation of the system should only be performed by a suitably qualified auto technician. Please read these installation instructions carefully before installing the system in the RV.

  • Page 11: What's Included

    WHAT’S INCLUDED 9 RV Controller and Back Plate   9 Node   9 Switch and Back Plate (if required)   ADDITIONAL ACCESSORIES REQUIRED FOR INSTALLATION The following accessories are required to complete installation of the system. 9 4 x #8 wafer head screws (Controller installation)  ...

  • Page 12: The Node

    THE NODE INSTALLING THE NODE The Node may be installed in the RV in any orientation. Securely mount the Node to any suitably strong surface within the RV using the four, pre-drilled mounting holes and four, #8 screws. WIRING THE NODE Use of Node inputs and outputs is model specific.
  • Page 13 Mini Node Powering the Node To power the node, install two 30A fuses, one each for SYSTEM POWER and MOTOR POWER at the Power Supply’s positive terminal.

  • Page 14: Wiring Rv Accessories To The Wired Node

    CAN Cable TYPE CAN H CAN L For information on CAN cable wiring, refer to the Appendices. WIRING RV ACCESSORIES TO THE WIRED NODE Reversing Outputs Reversing Outputs are wired as outlined in the table below. Connect extend or raise wires to the channel’s positive input. Connect retract or lower wires to the channel’s negative input.
  • Page 15 WAGO Connectors Pins 1 to 72 on the Node use a WAGO, 4-pole, push-in CAGE CLAMP® connector to wire loads. TYPE 0.5A High Side Output Driver 0.5A High Side Output Driver 0.5A High Side Output Driver 0.5A High Side Output Driver Ground 0.5A High Side Output Driver 0.5A High Side Output Driver...
  • Page 16 TYPE 5.0A High Side Output Driver (Dimmable) 5.0A High Side Output Driver (Dimmable) 5.0A High Side Output Driver (Dimmable) 5.0A High Side Output Driver (Dimmable) 5.0A High Side Output Driver (Dimmable) 5.0A High Side Output Driver (Dimmable) 5.0A High Side Output Driver (Dimmable) 5.0A High Side Output Driver (Dimmable) 5.0A High Side Output Driver (Dimmable) 5.0A High Side Output Driver (Dimmable)
  • Page 17 TYPE Water Tank Sensor 1 Water Tank Sensor 2 Water Tank Sensor 3 Water Tank Sensor 4 Water Tank Sensor 5 Water Tank Sensor 6 Tank Ground Slide Lock Input Motor Unlock Input Brake Input Fuel Pump Input Generator Fault Input Generator Hour Meter Water Heater Fault Fuel Tank Sensor 1...

  • Page 18: Configuring Rv Model

    Floorplan configuration files are shared by BMPRO via a customer SharePoint Portal. If you need any assistance on accessing these files, please contact BMPRO. To load the floorplan files from a PC to the Android device: Download the files from the portal to your PC.
  • Page 19 Connect the Android device to the PC via the USB cable provided for charging. Open the file storage location where the files were stored when they were downloaded from the SharePoint Portal.
  • Page 20 Select the floorplans required on the Android device. NOTE: Use the SHIFT or CTRL keys to select multiple files. Right-click the floorplans and select copy. On the PC, open File Explorer. Select THIS PC. All file locations will be displayed. Open the Android device file location.
  • Page 21 Select Download as the file location. Right-click and select paste. The configuration files will now be stored on the Android device.

  • Page 22: Pairing Your Device To The Node

    PAIRING YOUR DEVICE TO THE NODE To pair your device to the Node: Open the JAYCOMMANDPlus/TravelLINKPlus app on your device Press the pairing button on the node. This will activate the pairing process on the Node for 30 seconds PAIRING BUTTON Follow the prompt on your device to pair to the node.

  • Page 23: Configuring The Node

    CONFIGURING THE NODE Loading an External Floorplan From the RV Configuration screen, press Load External Floorplan to open the file storage location for the floorplan files. From the window that opens, select the floorplan file location. Select the correct floorplan from the folder.
  • Page 24 You will be prompted to select the options for the floorplan. When you have made your selections, press Next. Floorplan options can be completed or changed later from the Controller. Enter the UNIT NUMBER or the last 8 digits of the VIN. This can be found on the NODE nameplate.
  • Page 25 To unpair the configuration device from the Node: From the App home screen, select the settings icon. Press Bluetooth Connection. Press Unpair. The Node will now be configured and ready to use. Mark the Node with the unit number entered in the step 5 above (you may use a piece of masking tape on the Node with the unit number on it).

  • Page 26: The Controller

    THE CONTROLLER INSTALLING THE CONTROLLER The Controller should be installed inside the RV in an area where it will not be subjected to spills or splashes from water or other liquids. 188.91mm 100mm Cut a rectangular area 81mm high x 100mm wide at the centre of the proposed controller position.

  • Page 27: Installing The Rv Control Panel

    INSTALLING THE RV CONTROL PANEL To install the RV control panel: Cut a hole in the wall to allow for the CAN cable connectors at the rear of the control panel to go through. Using 4 x #8 screws, fix the back plate onto the wall, making sure to position the opening in the back plate over the hole for the cables.
  • Page 28 Select any optional extras. Press Next. Enter the UNIT NUMBER or last 8 digits of the VIN if it is blank. Press Confirm to complete the RV configuration.

  • Page 29: Switch

    SWITCH INSTALLING THE SWITCH To mount the Switch: Using two #8 screws, fix the Switch back plate onto the wall. Clip the Switch button pad onto the back plate.

  • Page 30: Pairing The Switch To The Node Using The Controller

    PAIRING THE SWITCH TO THE NODE USING THE CONTROLLER To pair a Switch to the Node using the Controller: In the page navigation sidebar, at the bottom, select the settings icon. At the bottom of the settings menu, select Pairing External Bluetooth Devices.

  • Page 31: Pairing A Switch To The Node Using The Control Panel

    PAIRING A SWITCH TO THE NODE USING THE CONTROL PANEL To pair a Switch to the Node using the Control Panel: Double press the Bluetooth pairing button on the control panel. The button will flash to indicate pairing mode. Press any 2 buttons on the switch at the same time. Confirm pairing by activating an output from the switch.

  • Page 32: Updates

    UPDATES UPDATING NODE FIRMWARE Updates to the Node and Controller can be initiated over-the-air from the Controller. If there is an update available, and your system is connected to Wi- Fi, a notification to update the Node will appear in the top right-hand corner of the app.

  • Page 33: Appendices

    APPENDICES CAN CABLE...

  • Page 34: Changing The Date And Time On The Controller

    CHANGING THE DATE AND TIME ON THE CONTROLLER Ensuring time is correct on the Controller is important when using Quiet time with the Auto Generator Start. In the page navigation sidebar, at the bottom, select the settings icon. Select Date and Time from the menu. Enter the correct date and time and confirm.

  • Page 35: Specifications

    SPECIFICATIONS NODE Input Voltage Range 8V to15V DC Ambient -4°F to 140°F (-20°C to 60°C) Temperature IP Rating IP20 Lithium Battery CR2032 Type Battery Voltage FCC 47 CR15, CAN ICES-3 (B) / NMB-3 (B), IEC 61000-4-2 Level III, Approvals IEC60068-2-27 Table A.1, IEC 60068-2-64 Spectrum A.3 Category 1 CONTROLLER Input Voltage Range 8V to15V DC...
  • Page 36 BMPRO TEAM customerservice@teambmpro.com BMPRO Unit 1, 821 E Windsor Ave, Elkhart IN 46514 USA .COM teambmpro.com...
