Summary of Contents for BMPRO CONNECT+

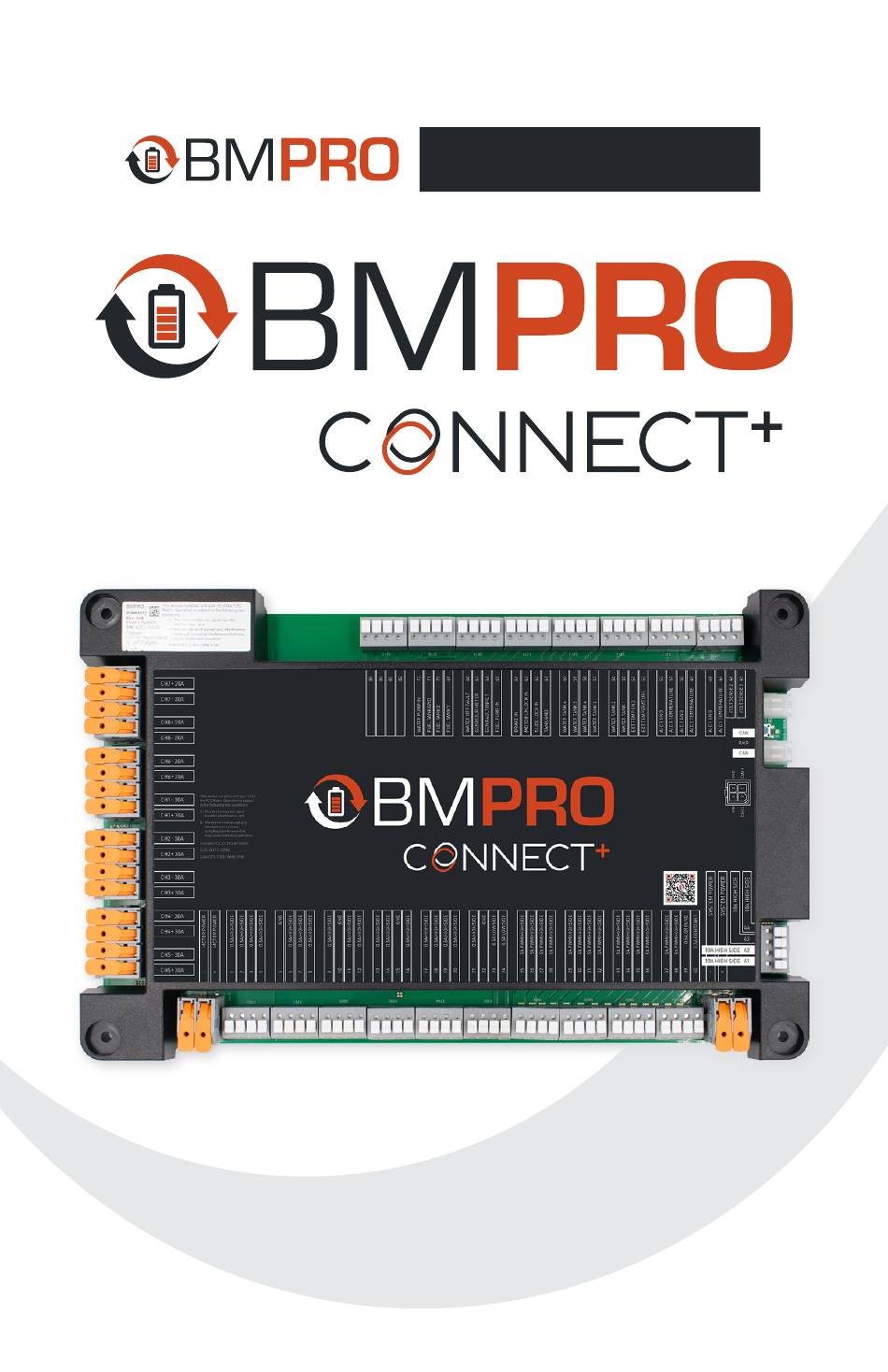

  • Page 1 INSTALL GUIDE TEAMBMPRO.COM...

  • Page 2: Safety Precautions

    Copyright © 2025 REV 2.0 DISCLAIMER: BMPRO accepts no liability for any loss or damage which may occur from First published 2025-03-26 the improper or unsafe use of its products. Warranty is only valid if the unit has not been Last updated 2025-04-11 modified or misused by the customer.
  • Page 3 WARNING Clean the housing of this product lightly with a dry or moist cotton cloth. Do not use alcohol, thinners, benzene or any other chemical cleaner. The system is a high precision electronic product. It contains no user-serviceable parts inside. Do not try to dismantle, modify or repair it yourself. Disassembly, service or repair by an unauthorized person will void the warranty.

  • Page 4: Information For The User

    This device must accept any interference received, including what may have cause undesired operation. WARNING Any changes or modification not expressly approved by BMPRO could void compliance of the product and the user’s authority to operate this equipment. Le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts...
  • Page 5 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency and energy.

  • Page 6: Quick Installation Guide Checklist

    QUICK INSTALLATION GUIDE CHECKLIST Install the Node in the RV Pg. 12 Complete Node power and wiring Pg. 12-17 , 46 Connecting RV accessories to the Mate-N-Lok node Pg. 18-23 Configuring RV model Pg. 24-31 Install the Controller in the RV Pg.

  • Page 8: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS ..... 2 INFORMATION FOR THE USER ....4 QUICK INSTALLATION GUIDE CHECKLIST .
  • Page 9 UPDATES ......41 UPDATING NODE FIRMWARE ....41 APPENDICES .

  • Page 10: About This Guide

    This guide details the instructions required to install the components of the BMPRO Connect+ system in the RV. Installation of the BMPRO Connect+ system should only be performed by a suitably qualified auto technician. Please read these installation instructions carefully before installing the BMPRO Connect+ system in the RV.

  • Page 11: What's Included

      9 Switch and Back Plate (if required)   ADDITIONAL ACCESSORIES REQUIRED FOR INSTALLATION The following accessories are required to complete installation of the BMPRO Connect+ system. 9 4 x #8 wafer head screws (Controller installation)   9 4 x #8 screws (Node installation)  ...

  • Page 12: The Node

    THE NODE INSTALLING THE NODE The Node may be installed in the RV in any orientation. Securely mount the Node to any suitably strong surface within the RV using the four, pre-drilled mounting holes and four, #8 screws. WIRING THE NODE Refer to the Node Wiring Diagram for further instructions on wiring RV accessories to the Node.
  • Page 13 Powering the Node To power the node, install two 30A fuses, one each for SYSTEM POWER and MOTOR POWER at the Power Supply’s positive terminal. CAN Cable TYPE CAN H CAN L For information on CAN cable wiring, refer to the Appendices.

  • Page 14: Wiring Rv Accessories To The Wired Node

    WIRING RV ACCESSORIES TO THE WIRED NODE Reversing Outputs Reversing Outputs are wired as outlined in the table below. Connect extend or raise wires to the channel’s positive input. Connect retract or lower wires to the channel’s negative input. Channel assignments are model dependent. TYPE CH 1 30A, H-Bridge Output...
  • Page 15 WAGO Connectors Pins 1 to 72 on the Node use a WAGO, 4-pole, push-in CAGE CLAMP® connector to wire loads. TYPE 0.5A High Side Output Driver 0.5A High Side Output Driver 0.5A High Side Output Driver 0.5A High Side Output Driver Ground 0.5A High Side Output Driver 0.5A High Side Output Driver...
  • Page 16 TYPE 5.0A High Side Output Driver (Dimmable) 5.0A High Side Output Driver (Dimmable) 5.0A High Side Output Driver (Dimmable) 5.0A High Side Output Driver (Dimmable) 5.0A High Side Output Driver (Dimmable) 5.0A High Side Output Driver (Dimmable) 5.0A High Side Output Driver (Dimmable) 5.0A High Side Output Driver (Dimmable) 5.0A High Side Output Driver (Dimmable) 5.0A High Side Output Driver (Dimmable)
  • Page 17 TYPE Water Tank Sensor 1 Water Tank Sensor 2 Water Tank Sensor 3 Water Tank Sensor 4 Water Tank Sensor 5 Water Tank Sensor 6 Tank Ground Slide Lock Input Motor Unlock Input Brake Input Fuel Pump Input Generator Fault Input Generator Hour Meter Water Heater Fault Fuel Tank Sensor 1...

  • Page 18: Connecting Rv Accessories To The Mate-N-Lok Node

    CONNECTING RV ACCESSORIES TO THE MATE-N-LOK NODE The BMPRO Connect+ Mate-N-Lok Node is designed specifically for installation with Mate-N-Lok harnesses. Connector Details CONNECTION POSITION CONNECTOR TYPE X201 CON MATE-N-LOK UNI MINI 2w HDR Vert X202 CON MATE-N-LOK UNI MINI 8w HDR Vert...
  • Page 19 Connector Positions Connections are identified on the Node label. X404 X403 X701 X402 X700 X800 X601 X204 X600 X203 X500 X202 X201 X602...
  • Page 20 Connector Pin Out Channel assignments are model dependent. Reversing outputs are pinned as outlined in the table below. Connect extend or raise wires to the positive pin, connect retract or lower wires to the channels negative pin. TYPE FUNCTION CONNECTOR H-Bridge X402 H-Bridge 1...
  • Page 21 TYPE FUNCTION CONNECTOR Voltage Sense 1 X201 Voltage Sense 2 Water Tank Sensor 1 Water Tank Sensor 2 Water Tank Sensor 3 X203 Water Tank Sensor 4 Water Tank Sensor 5 Water Tank Sensor 6 A/C 1 Temperature Sensor A/C 2 Temperature Sensor Analog Inputs A/C 3 Temperature Sensor External Temperature Sensor...
  • Page 22 TYPE FUNCTION CONNECTOR 0.5A Contant AUX 12V Output X602 0.5A GND Water Pump 10A High Side Output Driver 10A Outputs X500 (Adjustable) 10A High Side Output Driver 10A High Side Output Driver 5A Hight Side Output Driver (dimmable) 5A Hight Side Output Driver (dimmable) 5A Hight Side Output Driver (dimmable) 5A Hight Side Output Driver (dimmable) 5A Hight Side Output Driver (dimmable)
  • Page 23 TYPE FUNCTION CONNECTOR Generator Start Generator Stop Gas Water Heater Electric Water Heater 0.5A High Side Output Driver 0.5A High Side Output Driver X700 0.5A High Side Output Driver 0.5A High Side Output Driver 0.5A High Side Output Driver 0.5A High Side Output Driver Generator GND A/C 2 - Compressor 0.5A Outputs...

  • Page 24: Configuring Rv Model

    Floorplan configuration files are shared by BMPRO via a customer SharePoint Portal. If you need any assistance on accessing these files, please contact BMPRO. To load the floorplan files from a PC to the Android device: Download the files from the portal to your PC.
  • Page 25 Connect the Android device to the PC via the USB cable provided for charging. Open the file storage location where the files were stored when they were downloaded from the SharePoint Portal.
  • Page 26 Select the floorplans required on the Android device. NOTE: Use the SHIFT or CTRL keys to select multiple files. Right-click the floorplans and select copy. On the PC, open File Explorer. Select THIS PC. All file locations will be displayed. Open the Android device file location.
  • Page 27 Select Download as the file location. Right-click and select paste. The configuration files will now be stored on the Android device.

  • Page 28: Pairing Your Device To The Node

    PAIRING YOUR DEVICE TO THE NODE To pair your device to the Node: Open the BMPRO Connect+ app on your device Press the pairing button on the node. This will activate the pairing process on the Node for 30 seconds PAIRING BUTTON Follow the prompt on your device to pair to the node.

  • Page 29: Configuring The Node

    CONFIGURING THE NODE Loading an External Floorplan From the RV Configuration screen, press Load External Floorplan to open the file storage location for the floorplan files. From the window that opens, select the floorplan file location. Select the correct floorplan from the folder.
  • Page 30 You will be prompted to select the options for the floorplan. When you have made your selections, press Next. Floorplan options can be completed or changed later from the RV Controller. Enter the UNIT NUMBER or the last 8 digits of the VIN. This can be found on the NODE nameplate.
  • Page 31 To unpair the configuration device from the Node: From the App home screen, select the settings icon. Press Bluetooth Connection. Press Unpair. The Node will now be configured and ready to use. Mark the Node with the unit number entered in the step 5 above (you may use a piece of masking tape on the Node with the unit number on it).

  • Page 32: The Controller

    THE CONTROLLER INSTALLING THE CONTROLLER The Controller should be installed inside the RV in an area where it will not be subjected to spills or splashes from water or other liquids. 188.91mm 100mm Cut a rectangular area 81mm high x 100mm wide at the centre of the proposed controller position.

  • Page 33: Installing The Rv Control Panel

    Already loaded external floorplans can have their configured options updated. To update options on a floorplan: From the BMPRO Connect+ Home Screen, in the bottom left corner, select the settings icon. Tap the General Settings bar five times to enter the RV Configuration page.
  • Page 34 Select any optional extras. Press Next. Enter the UNIT NUMBER or last 8 digits of the VIN if it is blank. Press Confirm to complete the RV configuration.

  • Page 35: Ac Loadshedding

    AC LOADSHEDDING MEASURING EQUIPMENT CONDITIONS Always open or disconnect the circuit from the power-distribution system (or service) of a building before installing or servicing current transformers. The current transformers may not be installed in equipment where they exceed 75 percent of the wiring space of any cross-sectional area within the equipment.

  • Page 36: Installing The Loadshedding Device

    INSTALLING THE LOADSHEDDING DEVICE To install the loadshedding device: Using an M20 nut and a washer, insert the measuring equipment through the appropriate cut-out of the automatic transfer switch (ATS) box inside the RV, according to the ATS box mounting specification. WARNING Only tighten the nut to hand-tight plus another quarter of a turn.

  • Page 38: Switch

    SWITCH INSTALLING THE SWITCH To mount the Switch: Using two #8 screws, fix the Switch back plate onto the wall. Clip the Switch button pad onto the back plate.

  • Page 39: Pairing The Switch To The Node Using The Controller

    PAIRING THE SWITCH TO THE NODE USING THE CONTROLLER To pair a Switch to the Node using the Controller: From the BMPRO Connect+ Home Screen, in the bottom left corner, select the settings icon. At the bottom of the settings menu, select Pairing External Bluetooth Devices.

  • Page 40: Pairing A Switch To The Node Using The Control Panel

    Press any two buttons on the Switch at the same time. Confirm pairing by activating an output from the Switch. PAIRING A SWITCH TO THE NODE USING THE CONTROL PANEL To pair a Switch to the Node using the Control Panel: Double press the Bluetooth pairing button on the control panel.
  • Page 41 Press any 2 buttons on the switch at the same time. Confirm pairing by activating an output from the switch.

  • Page 42: Updates

    Controllert, a yellow information icon will display in the top toolbar of the app. To update the firmware: Ensure you are connected to Wi-Fi. From the BMPRO Connect+ Home Screen, in the bottom left corner, select the settings icon. Select Updates.

  • Page 43: Appendices

    APPENDICES CAN CABLE...

  • Page 44: Changing The Date And Time On The Controller

    Ensuring time is correct on the Controller is important when using Quiet time with the Auto Generator Start. From the BMPRO Connect+ Home Screen, in the bottom left corner, select the settings icon. Select Date and Time from the menu.

  • Page 46: Specifications

    SPECIFICATIONS NODE Input Voltage Range 8V-15V DC Ambient Temperature -4°F to 140°F or -20°C to 60°C IP Rating IP20 FCC 47 CR15.109, CAN ICES-3 (B) / NMB-3 (B), IEC 61000-4-2 Approvals Level III, IEC60068-2-27 Table A.1, IEC 60068-2-64 Spectrum A.3 Category 1 CONTROLLER Input Voltage Range 8V-15V DC...
  • Page 47 MEASURING EQUIPMENT Measuring Input 90 – 135 Vac, 50/ 60Hz, Max. 2mA DC Input: 8 – 16 Vdc, Max. 50 mA CAN port Data: RVIA RV-C Specification Compliant Max. Primary Current: 100 A Current Transformer Max. Voltage: 250V (primary), 1.25V(secondary) Burden Resistance: 20 Ω, ½...
  • Page 48 BMPRO TEAM customerservice@teambmpro.com BMPRO Unit 1, 821 E Windsor Ave, Elkhart IN 46514 USA .COM teambmpro.com...
