Summary of Contents for Honda Pioneer SXS700M2P 2019
Page 1

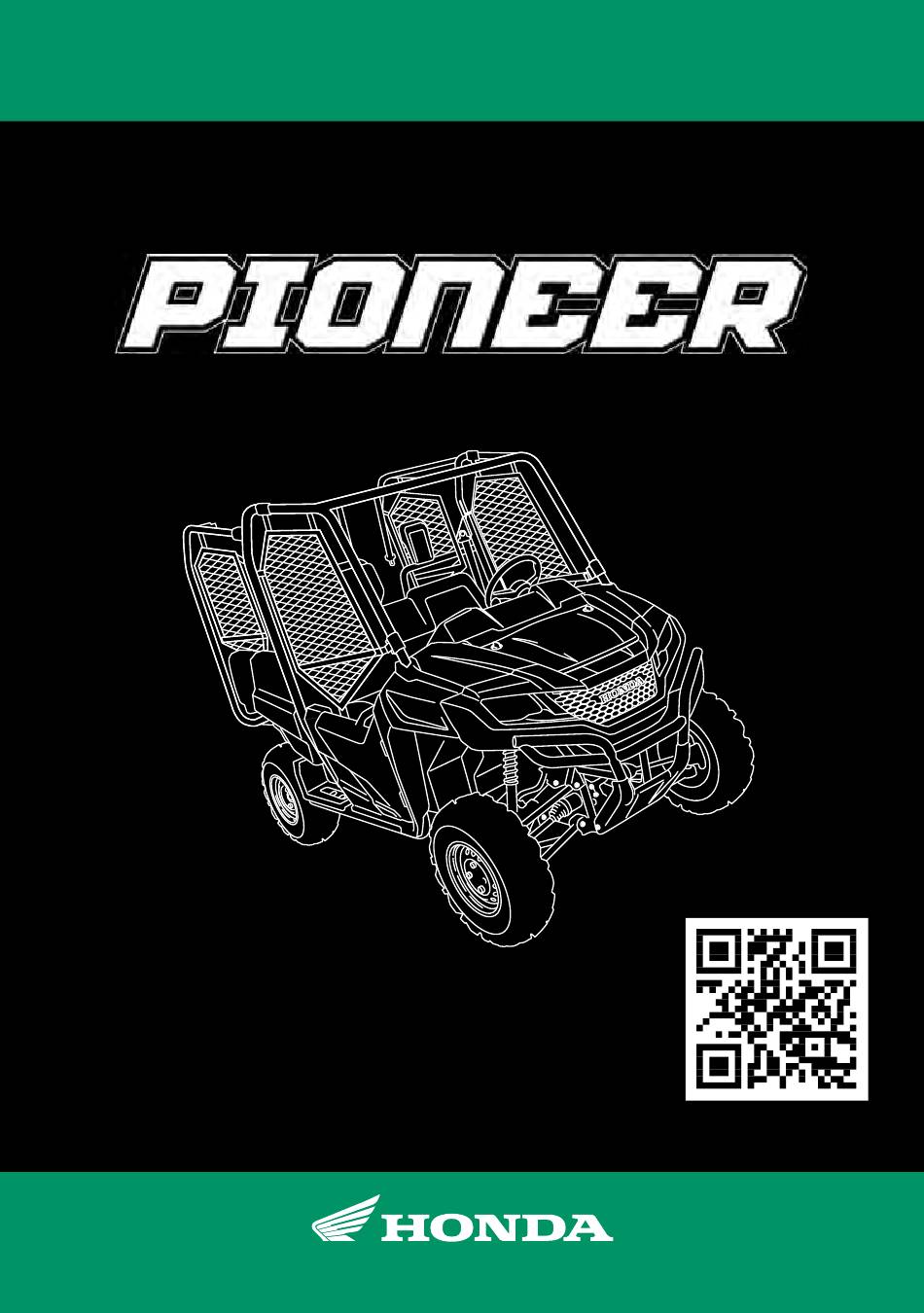

OWNER’S MANUAL OWNER’S MANUAL SXS700M2P/M4P SXS700M2P/M4P Read this manual carefully, it contains important safety information. Minimum recommended operator age: 16 Part Number...
Page 2
This publication includes the latest production information available before printing. Honda Motor Co., Ltd. reserves the right to make changes at any time without notice and without incurring any obligation.
Page 3
2019 Honda PIONEER SXS700 M2P Two Passenger with Power Steering M4P Four Passenger with Power Steering OWNER’S MANUAL...
Page 4
Honda, other property, or the environment. If you have any questions, or if you ever need special service or repairs, remember that your dealer knows your Honda SXS best and is dedicated to your complete satisfaction. Introduction...
Page 5
Introduction • The following codes in this manual indicate each country. SXS700M2P Australia, New Zealand SXS700M4P Australia, New Zealand • The illustrations herein are based on the SXS700M4P U type. • The specifications may vary with each locale. Introduction...
Page 6
Your safety, and the safety of others, is very important. And A Few Words About Safety operating your Honda safely is an important responsibility. To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual.
Page 7
A Few Words About Safety Safety Headings — such as “Important Safety Reminders” or “Important Safety Precautions.” Safety Section — “Driver & Passenger Safety,” beginning on page 1. Instructions — how to operate this vehicle correctly and safely. In addition to the above, your owner's manual is full of information that can help you safely operate and maintain your vehicle.
Before Driving................69 The importance of wearing a seat belt, helmet, protective eyewear and other protective gear, how to make sure you and your Honda are ready to drive, plus load limits and guidelines on carrying cargo and towing a trailer.
Page 9
Contents Taking Care of the Unexpected..........203 What to do if you have a flat tyre, your engine won’t start, etc. Technical Information ............227 ID numbers, technical specifications, and other technical facts. Index ..................239 Alphabetical listing of topics in the manual. Contents...
This section presents some of the most important information and Driver & Passenger Safety recommendations to help you drive your Honda safely. Please take a few moments to read these pages. This section also shows you the location of safety labels on your vehicle.
Page 12
Important Safety Information There is much that you can do to protect yourself and passenger(s). You’ll find many helpful recommendations throughout this manual. The following are those we consider to be most important. Follow Age and Size Recommendations The driver should be at least 16 years old and tall enough to wear the seat belt properly and reach all the controls.
Page 13
It’s important to keep your vehicle properly maintained and in safe operating condition. Having a breakdown can be difficult, especially if you are stranded far from your base. To help avoid problems, inspect your Honda before each use and perform all recommended maintenance. Don’t Drink and Drive Alcohol and driving don’t mix.
Page 14
Accessories & Modifications Modifying your vehicle or using non-Honda accessories can make it unsafe. Before you consider making any modifications or adding an accessory, be sure to read the following information. Accessories We strongly recommend that you use only Honda Genuine Accessories that have been specifically designed or approved and tested for your vehicle.
Page 15
Modifications We strongly advise you not to remove any original equipment or modify your Honda in any way that would change its design or operation. Such changes could seriously impair your vehicle’s handling, stability, and braking and make it unsafe to drive.
Page 16
You, and anyone else who operates or rides in the vehicle, should read and understand this information before driving. The labels should be considered permanent parts of the vehicle. If a label comes off or becomes hard to read, contact your Honda dealer for a replacement. Indicates something apparent.
Page 17
Safety Labels general warning tag Driver & Passenger Safety...
Page 19
Safety Labels (SXS700M4P) (SXS700M2P) loading warning (SXS700M4P only) Improper Use of Off-Highway Vehicles Can Cause Severe Injury or Death Only sit in designated seating positions and wear your seatbelt. Always wear an approved helmet and protective gear. Close doors and latch nets before driving. Each rider must be able to sit with back against seat, feet flat on floor, and hands on handholds.
Page 20
Safety Labels (SXS700M2P) (SXS700M4P) Model: Honda SXS700M2/SXS700M2D/SXS700M2P Model: Honda SXS700M4/SXS700M4D/SXS700M4P Test GVWR: 2,747 lbs ( 1,246 Test GVWR: 2,881 lbs ( 1,307 The ROPS meets the requirements of 29 CFR Part 1928.53 (OSHA) The ROPS meets the requirements of 29 CFR Part 1928.53 (OSHA)
Page 24
Operation Component Locations front side net (page 43) passenger handhold (page 61) front seat belt (page 54) front door (page 41) Instruments & Controls...
Page 25
Operation Component Locations rear door rear seat belt (SXS700M4P only) (SXS700M4P only) (page 54) (page 41) rear side net (SXS700M4P only) rear seat (page 43) (SXS700M4P only) (page 50) tailgate levers tilt bed lever (page 66) (page 64) cargo bed (page 64) trailer hitch receiver (page 68) Instruments &...
Indicators & Displays The indicators and displays on your Honda SXS keep you informed, alert you to possible problems, and make your driving safer and more enjoyable. Refer to the indicators frequently. Their functions are described on the following pages.
Indicators & Displays Neutral Indicator This indicator comes on and stays on when the transmission is in neutral. Reverse Indicator This indicator comes on and stays on when the transmission is in reverse. Parking Brake Indicator This indicator comes on and stays on when the parking brake is on.
Indicators & Displays Electric Power Steering (EPS) Indicator This indicator comes on when the ignition switch is turned on and remains on until the engine is started. This indicator comes on and stays on when there is abnormality in the electric power steering system. Instruments &...
Page 29
Indicators & Displays Multi-function This display includes the following display functions. Speedometer Shows driving speed in miles or display kilometers per hour (page 22). Odometer display Shows fuel gauge, digital clock, odometer, tripmeter, coolant temperature gauge, hour meter, maintenance tripmeter and maintenance hour meter (page 23).
Page 30
Indicators & Displays Display Check When the ignition switch is turned ON (q), the multi-function display will temporarily show all the modes and digital segments and initial message. So, you can make sure the liquid crystal display is functioning properly. If any part of this display does not come on during the key ON check, have your dealer check for problems.
Indicators & Displays Multi-function Display The multi-function display consists of the following function displays: Speedometer display Odometer display Gear position display speedometer display gear position display mode switch odometer display Instruments & Controls...
Indicators & Displays Speedometer Display This display shows speed in miles or kilometers per hour. Mileage Unit Change The speedometer, odometer, tripmeter and maintenance tripmeter show in either “MPH” and “MILE” or “KM/H” and “KM”. To change the mileage unit, press and hold the mode switch for more than 5 seconds in odometer mode (page 23) with the vehicle stopped.
Indicators & Displays Odometer Display This display includes fuel gauge, digital clock, odometer, tripmeter, coolant temperature gauge, hour meter, maintenance tripmeter, and maintenance hour meter. Each time you press the mode switch, mode will change as shown in the illustration. Fuel gauge (page 24) Digital clock (page 26) Hour meter (page 30)
Page 34
Indicators & Displays Fuel gauge The fuel gauge shows the approximate fuel supply available in a graduated display with the fuel symbol. When the segment F goes on, the fuel tank capacity is: 30 ℓ (7.9 US gal, 6.6 Imp gal) fuel symbol fuel gauge segment F...
Page 35
Indicators & Displays Fuel gauge failure: If the fuel system has an error, the fuel gauge will blink. If this occurs, see your dealer as soon as possible. fuel gauge Instruments & Controls...
Page 36
Indicators & Displays Digital clock The digital clock shows the hour and minutes with the 12-hour clock display. To set the time: 1. Turn the ignition switch to ON (q). 2. Press and hold the mode switch in the clock mode. The clock will start blinking.
Page 37
Indicators & Displays Odometer The odometer shows the total miles or kilometers ridden with the ODO display. The odometer locks at 999,999 when the readout exceeds 999,999. odometer display Tripmeter The tripmeter shows the number of miles or kilometers ridden with the TRIP display, since you last reset the tripmeter.
Page 38
Indicators & Displays Coolant temperature gauge The coolant temperature gauge shows engine coolant temperature with the coolant temperature display. When the segment begins to move above the C (Cold) display, the engine is warm enough for the SXS to be ridden. The normal operating temperature range is within the section between the H and C displays.
Page 39
Indicators & Displays Coolant temperature gauge failure: If the coolant temperature system has an error, the coolant temperature gauge will blink and appear in the display, and/or high coolant/oil temperature indicator will turn on. If this occurs, see your dealer as soon as possible. high coolant/oil coolant temperature gauge temperature indicator...
Page 40
Indicators & Displays Hour meter The hour meter display shows accumulated hours while the ignition is ON (q). The hour meter locks at 99,999.9 when the readout exceeds 99,999.9. hour meter hour meter display Instruments & Controls...
Page 41
Indicators & Displays Maintenance minder indicator The maintenance minder indicator appears in the display when the mileage or operating hours on your Honda SXS reaches the maintenance interval specified on the maintenance schedule (page 109). Reset the indicator after each scheduled maintenance is performed.
Indicators & Displays Gear position display Gear position indicator The gear position indicator shows the gear position when the ignition switch is in the ON (q) position. The indicator displays: N for neutral, R for reverse, and D for the drive. When the shift paddles are operated, the indicator displays the number of gear position (1,2 or 3).
Driver Controls Ignition Switch The ignition switch is a three-position, key-operated switch used to start and stop the engine. OFF (w) — The engine and all electrical circuits are off. The key can be inserted and removed only when it is in this position. ON (q) —...
Driver Controls Headlight Switch The headlight switch is located on the front console, to the left of the steering wheel. This switch turns the headlights and taillights on and off. OFF (t) ON (y) headlight switch Instruments & Controls...
Driver Controls AT/MT Switch The AT/MT switch is located to the left of the shift select lever. The AT/MT switch has two positions, AT (automatic shift mode) and MT (manual shift mode). To select the transmission mode, turn the AT/MT switch to the desired position.
Driver Controls Shift Paddles Your Honda SXS is equipped with a pair of shift paddles that are located behind the steering wheel. downshift paddle (-) upshift paddle (+) Pull the upshift paddle (+) to shift to a higher gear position and the downshift paddle (-) to shift to a lower gear position.
Driver Controls Shift Select Lever Your Honda SXS is equipped with an automatic transmission. The shift select lever, located to the right of the steering wheel, has three positions: drive (D), neutral (N), and reverse (R). shift positions shift select lever...
Driver Controls Drive Mode Select Lever The drive mode select lever, located to the right of the shift select lever, has three drive mode positions: 2WD, 4WD and 4WD diff lock. drive mode positions drive mode select lever To check your present drive mode, look at the 4WD indicator and differential lock indicator.
Page 49
Driver Controls You should change drive modes only when the vehicle is stopped and the engine is idling. NOTICE Changing drive modes while the vehicle is moving could damage the drivetrain. After changing the drive mode, drive several yards, making right and left turns, and make sure that indicators work properly.
Driver Controls Parking Brake Lever The parking brake lever is located on the left side of the steering wheel. To apply the brake, pull the lever down fully. To release it, pull down slightly, push the button at the end of the lever, then push lever forward.
If a door is damaged or does not close securely, see your dealer for repair or replacement. Do not drive the Honda SXS with the doors open or removed. SXS700M4P only Do not open the rear door while the cargo bed is raised. Opening the rear doors while the cargo bed is raised, will cause the seats to flip up unexpectedly.
Page 52
Doors If the doors rattles when closed, turn the door stopper counterclockwise to adjust the doors. Each door has a double latching mechanism. Adjust the door stoppers so that it latches on the second click. The left and right doors can be adjusted in the same manner. Adjust 1.
Side Nets Your Honda SXS is equipped with side nets to prevent branches, or other debris from getting inside the driver’s compartment, and to keep the driver’s and passenger’s hands and arms inside the occupant protective structure (OPS) if the vehicle ever tips or overturns.
Page 54
Side Nets Side Nets Set Up The left and right side nets can be set up in the same manner. Inspect the side nets and their mounting hardware for damage as specified in the maintenance schedule on page 109. Front 1.
Page 55
Side Nets Rear (SXS700M4P only) 1. Hook the side net snap hooks and fasten the side net buckle. 2. Tighten the belt on the side net D-ring. belt side net D-ring side net snap hook side net side net buckle side net snap hook Side net snap hooks wear limit Inspect the side net snap hooks for wear.
Page 56
Side Nets Front Side Nets The left and right side nets can be opened in the same manner. Open 1. Release the side net buckle. 2. Hook the side net D-ring onto the side net hook while lifting the side net. Close 1.
Page 57
Side Nets Rear Side Nets (SXS700M4P only) The left and right side nets can be opened in the same manner. Open 1. Release the side net buckle and lower side net snap hook. 2. Hook the side net onto the side net hook while lifting the side net.
Page 58
Side Nets Roll Up The Side Nets The side nets can be rolled up to make cleaning and maintaining your Honda SXS a little easier. Front Side Nets Roll Up 1. Release the side net buckle and side net D-rings.
Page 59
Side Nets Rear Side Nets Roll Up (SXS700M4P only) 1. Release the side net buckle. 2. Unhook the side net snap hooks and slide the D-rings out of the stays. 3. Roll up the side net tightly, folding in the buckle and snap hooks on the way.
Seat Seat SXS700M2P: Your Honda SXS is equipped with a bench seat that is designed to carry one driver and one passenger only. SXS700M4P: Your Honda SXS is equipped with a bench seat in front, and two jump seats stowed in the rear cargo area. Your Honda SXS has four seats and is designed to carry one driver and up to three passengers.
Seat Rear Seat Conversion (SXS700M4P only) Unfolding 1. Park your Honda SXS on a firm, level surface, and roll up the rear side nets (page 49). 2. Open the rear door (page 41). 3. Lift up the rear seat back until it latches into position.
Page 62
Seat Storing 1. Park your Honda SXS on a firm, level surface, and roll up the rear side nets (page 49). 2. Open the rear door (page 41). 3. Fold up the lower seat back and hook the strap ring to the stay.
Seat Rear Seat Stopper Adjustment (SXS700M4P only) If the rear seat back has excessive vibration in the stored position or if the doors are hard to close, adjust the rear seat stopper. Rear seat stopper is located below the rear door opener handle. 1.
Seat Belts Your Honda SXS is equipped with lap/shoulder seat belts in each seating position. A seat belt keeps you connected to the vehicle so you won’t be thrown out during a crash or rollover. Together with a proper helmet, a seat belt is your best protection against serious injuries in any type of crash, so make sure all occupants always buckle up before driving.
Page 65
Seat Belts Seat Belt Speed Limiting System When the driver's seat belt is not latched properly, the maximum vehicle speed will be limited by the seat belt speed limiting system. When the driver's seat belt is not latched, the seat belt speed limiting system will: •...
Page 66
Seat Belts How you wear a seat belt also matters. For the best protection: Front 1. Insert the latch plate into the buckle, then tug on the belt to make sure it is securely latched. latch plate buckle 2. Check that the belt is not twisted, because a twisted belt can cause injuries.
Page 67
Seat Belts Rear (SXS700M4P only) 1. Insert the end latch plate into the outboard buckle first. 2. Insert the middle latch plate into the inboard buckle, then tug on the belt to make sure they are both securely latched. OUTBOARD INBOARD latch plate latch plate...
Page 68
Seat Belts Rear Seat Belt Holders (SXS700M4P only) For the rear seat belts, there are seat belt holders to secure the seat belts when using the cargo bed. How to secure the seat belt: Hook the end latch plate of the rear seat belt to the seat belt holder. seat belt holder latch plate Instruments &...
Page 69
Seat Belts Seat Belt Locking Mechanism The seat belts in your Honda SXS are equipped with a belt locking mechanism. The belt locking mechanism is in the holder of the latch plate. When the seat belt is subjected to intense forces during a crash or rollover, part of the holder locks the belt.
Page 70
Seat Belts If you have been driving in an extremely muddy or dusty area, be sure to inspect your belt and remove any dirt or debris before letting the belt retract into the retractor. Failure to do so could clog the retractor and make it inoperable.
Passenger Handhold Passenger Handhold The occupant protective structure (OPS) has a handhold to give a passenger extra support when the vehicle travels over rough or bumpy terrain. Passenger can also brace their feet against the floorboard. FRONT passenger handhold REAR (SXS700M4P only) passenger handhold Instruments &...
Storage Compartments Your Honda SXS has a document compartment, glove box and two side pockets where you can carry small, lightweight items. document compartment glove box side pocket side pocket To open the document compartment, pull the cover forward. Close the cover securely before driving.
Accessory Power Socket The accessory power socket is located in the centre of the lower dash. The socket is intended for 12-volt DC accessories rated for 120 watts (10 amps) or less. Exceeding the limit can blow the accessory socket fuse (see page 216). The socket can be used to power such items as a trouble light, spotlight, CB radio, or cell phone, but not a heat-generating accessory, such as a car cigarette lighter.
To lower the tailgate, pull each tailgate lever out and unhook the hook as shown below. Reverse the process to secure the tailgate in the upright position. LIFT THE HOOK. hook tailgate levers PULL THE LEVER. TILT GENTLY. Do not drive the Honda SXS with the tailgate lowered. Instruments & Controls...
Cargo Bed Controls Tie-Down Hooks The cargo bed has tie-down hooks for securing items in the bed. Before using the tie-down hooks, select a firm level surface and set the parking brake. SXS700M4P tie-down hook SXS700M2P tie-down hook Instruments & Controls...
Before raising the cargo bed, select a firm level surface and set the parking brake. Your Honda SXS has a tilt bed lever, on the left front side of the bed. Using the lever, the front end of the bed will lift up, making it easier to dump items out the rear or to maintain the air cleaner, lubricate the cargo bed pivots and cargo bed strikers.
Page 77
Cargo Bed Controls SLOWLY LIFT UP THE CARGO BED. top of the bed tilt bed lever To lower the cargo bed, make sure that the area under the front of the cargo bed is clear, then manually push down on the top of the bed.
Trailer Hitch Your Honda SXS is equipped with a trailer hitch receiver that accepts a 2 inch drawbar. You can purchase an approved drawbar from your Honda dealer. See page 79 for page Towing a Trailer. trailer hitch receiver Instruments & Controls...
Before Driving Before driving your SXS, you need to make sure you and your vehicle Before Driving are both ready. This section discusses how to evaluate your driving readiness and what items you should check on your vehicle. It also includes important information about loading cargo.
Are You Ready to Drive? Before driving your Honda SXS for the first time, we urge you to carefully read this owner’s manual and the labels on your vehicle and make sure you understand all the safety information. Age & Size Recommendations The driver should be at least 16 years old and tall enough to wear their seat belt properly (page 54) and operate all the controls.
Are You Ready to Drive? Protective Apparel To help prevent head injury from striking an occupant protective structure (OPS) or other hard object, we recommend that occupants always wear a helmet secured with a chin strap. To protect the eyes from brush and flying objects, we also recommend that occupants wear impact-resistant goggles or a face shield.
Are You Ready to Drive? Get to Know Your Vehicle Because all vehicles have unique characteristics, it’s important to learn how this one operates and handles. We recommend that you take time to practice using the different controls, and get accustomed to how the vehicle accelerates, brakes, and turns in different driving modes, on different surfaces, and on different terrain conditions.
Is Your Vehicle Ready to Drive? Before driving your Honda SXS, it’s important to inspect the vehicle and correct any problem you find. A pre-drive inspection is a must, not only for safety, but because having a breakdown can be a major inconvenience.
Is Your Vehicle Ready to Drive? Pre-drive Inspection Check the following items before driving your Honda SXS: Oil Level Check the engine oil level and add oil, if needed (page 130). Also check under the vehicle for leaks. Coolant Check the coolant level (page 142). If it is low, add a 50/50 mixture of silicate-free coolant and distilled water.
Page 85
Is Your Vehicle Ready to Drive? Steering Check the steering to make sure it turns smoothly in both Gearbox and directions. Check for any tears in the boots. Boots If any tears are found, see your dealer. Underbody Check for and remove any debris stuck in the underbody;...
Page 86
Accumulated debris and vegetation that contact the exhaust/ catalyst can catch on fire. Always conduct a pre-ride inspection and remove accumulated debris. Remember to take care of any problem you find or have your dealer correct it before you drive your Honda SXS. Before Driving...
Loading Cargo Your vehicle was designed to carry cargo. However, carrying a load that is too heavy or improperly loaded can adversely affect your vehicle’s handling, stability, and stopping distance and make it unsafe. Before carrying any type of cargo, be sure to read the following pages.
Loading Cargo Loading Guidelines • Make sure the tyres are properly inflated (page 175). • Place all items on the floor of the cargo bed, and as far forward and centred as possible. • Use the tie-down hooks (page 65) to secure any items that could shift position while you are driving.
Towing a Trailer Your vehicle can pull a trailer as well as carry cargo, provided you follow the load limits and guidelines below. Towing Limits There are two main types of limits that apply to towing a trailer: Maximum total trailer weight = 680 kg (1,500 lb) This includes the weight of the trailer and everything in it or on it.
Towing a Trailer To achieve a proper tongue load, start by placing 60 percent of the load toward the front of the trailer and 40 percent toward the rear, then readjust the load as needed. Loading a Trailer • Always use a proper trailer hitch. Do not tow by attaching a rope or cable to the vehicle’s frame.
Basic Operation & Driving Guidelines This section gives information on how to start and stop your engine. Basic Operation & Driving Guidelines It also provides guidelines for operating on different types of terrain, driving with cargo, and towing a trailer. Basic Operation ................
Basic Operation Starting & Stopping the Engine For safety, we recommend that you start the engine in a well- ventilated area. If that is not practical, move the vehicle outdoors as soon as possible. The engine’s exhaust contains carbon monoxide, a colourless and odorless gas that can cause illness and even death.
Page 93
Basic Operation Starting the engine: 1. Apply the parking brake. 2. Make sure the shift select lever is in neutral. Press on the brake pedal. 3. To start the engine, without touching the accelerator pedal, insert the key and turn the ignition switch to the START (p) position.
Basic Operation To stop the engine, turn the ignition switch to the OFF (w) position. Remember to apply the parking brake and remove the key if you plan to leave the vehicle. Shifting Gears Selecting a Shift Position You can drive your vehicle either forward or backward by moving the shift select lever from neutral (N) to drive (D) or reverse (R).
Page 95
Basic Operation Selecting AT/MT Mode Your Honda SXS has 2 transmission modes: AT mode and MT mode. AT mode This mode automatically shifts the gears with optimal timing according to your driving conditions. You can temporarily shift up or down by operating the shift paddles while driving in AT mode.
Page 96
Basic Operation Driving in AT mode After starting the engine and letting it warm up, follow this procedure: 1. With the shift select lever in neutral (N), release the parking brake, but continue to press the brake pedal. 2. With the throttle closed, move the shift select lever into drive (D) position.
Page 97
Basic Operation Driving in MT mode To upshift the transmission, pull the right side upshift paddle once. To downshift the transmission, pull the left side downshift paddle once. After starting the engine and letting it warm up, follow this procedure: 1.
Page 98
Basic Operation Recommended Shift Points - For General Driving Drive in the highest gear that lets the engine run and accelerate smoothly. This will give you good fuel economy and effective emissions control. Shifting Up From 1st to 2nd From 2nd to 3rd Shifting Down From 3rd to 2nd From 2nd to 1st...
Basic Operation Selecting a Drive Mode This mode supplies power to the rear wheels only, this mode is best for surfaces with good traction. This mode supplies power to the front and rear wheels. Steering will require slightly more effort than with 2WD.
Basic Operation Parking Look for a level parking area with a firm surface. Avoid parking on a slope or on loose or slippery surfaces when possible. If you must park on a slope, block the wheels to help keep the vehicle from sliding. After bringing your vehicle to a stop: 1.
Follow all safe-driving guidelines in this owner’s manual. Safe Driving Precautions Before driving your Honda SXS for the first time, please review the “Driver & Passenger Safety” section (page 1), the “Before Driving” section (page 69), and the precautions below.
Page 102
Driving Guidelines Off-highway Use Only Your Honda SXS was designed for use on a wide variety of terrain and situations. However, it should not be driven on any public road, paved or unpaved, because it is not equipped to legally or safely drive on such roads.
Your Honda SXS was designed and intended for off-road use. In the event that you must drive on a paved surface, be aware that your Honda SXS will feel and handle different than it does on dirt. The tyres will also wear much faster.
Page 104
Driving Guidelines Surface Considerations The kind of surface you drive on can have important effects on how your vehicle handles. For example, on loose or soft surfaces you’ll need more time and distance to accelerate, turn, or brake to a stop. Avoid any sudden sharp turn, particularly on pavement and other hard surfaces.
MT mode. Basic Driving Making Turns The basic turning technique for Honda SXS is to drive at low speed and gradually adjust the amount of steering to suit the surface. Do not make sudden sharp turns, either off-road or on pavement.
Driving Guidelines Driving on Hills Hills present some of the greatest challenges and hazards, especially if you are carrying cargo or pulling a trailer. If you are new to off- road driving, start with gentle inclines, take time to learn how your vehicle handles on slopes, and read the information that follows.
Page 107
Driving Guidelines Driving Up a Hill If you decide that it is safe to drive your Honda SXS up a hill: • Select an appropriate drive mode and gear for the hill. • Approach the hill with enough speed to smoothly start up the hill.
Page 108
Driving Guidelines If you decide it is safe to drive down a hill: • Hold the steering wheel firmly and drive straight back down the hill. • Gently apply the brakes to help control speed, but do not “ride” the brakes. Crossing a Hill Before traversing a hill, consider these facts: •...
• Avoid getting the spark plugs or air cleaner wet, as this would cause the engine to stop. Driving at Night If you drive your Honda SXS at night, always drive slower and more cautiously than you would in daylight. Basic Operation & Driving Guidelines...
Servicing Your Honda To help keep your Honda SXS in good shape, this section includes a Servicing Your Honda Maintenance Schedule for required service and step-by-step instructions for specific maintenance tasks. You’ll also find important safety precautions, information on fuels and oils, and tips for keeping your Honda looking good.
Frequent servicing of the air cleaner is especially important to help you avoid a possible costly engine repair. If your Honda SXS overturns or is involved in a crash, be sure your dealer inspects all major parts, even if you are able to make some repairs.
Other tasks that are more difficult and require special tools are best performed by professionals. Removing the wheels should normally be handled only by a Honda technician or other qualified mechanic. Instructions are included in this manual only to assist in emergency service.
Keep cigarettes, sparks, and flames away from all fuel-related parts. Remember that your Honda dealer knows your Honda SXS best and is fully equipped to maintain and repair it. To ensure the best quality and reliability, use only new Honda Genuine Parts or other equivalents for repair and replacement.
Honda dealer knows your Honda SXS best and is fully equipped to maintain and repair it. If you decide to do your own maintenance, use only Honda Genuine Parts or their equivalents for repair or replacement to ensure the best quality and reliability.
Page 117
Maintenance Minder Messages on the Multi-function Display The maintenance minder indicator appears in the multi-function display when the mileage or operating hours on your Honda SXS reaches the maintenance interval specified on the maintenance schedule.
Page 118
* Should be serviced by your dealer, unless you have the proper tools and service data, and are mechanically qualified. Refer to the official Honda Shop Manual. ** In the interest of safety, we recommend these items be serviced only by your dealer.
Page 119
137, * Should be serviced by your dealer, unless you have the proper tools and service data, and are mechanically qualified. Refer to the official Honda Shop Manual. Note 1 Service more frequently when operating in dusty areas, sand or snow.
Page 120
* Should be serviced by your dealer, unless you have the proper tools and service data, and are mechanically qualified. Refer to the official Honda Shop Manual. ** In the interest of safety, we recommend these items be serviced only by your dealer.
Keeping an accurate maintenance record will help ensure that your Honda SXS is properly maintained. Retain detailed receipts to verify the maintenance was performed. If the Honda SXS is sold, these receipts should be transferred with the Honda SXS to the new owner.
(page 122) (page 156) (page 132) parking brake lever spark plugs tool kit (page 172) (page 158) (page 117) engine oil dipstick battery engine oil fill cap (page 186) (page 130) main fuse (page 217) Servicing Your Honda...
Page 123
Maintenance Component Locations fuse box front hood (page 218) (page 119) coolant reserve tank (page 142) fuel fill cap (page 124) front final gear oil fill cap front final gear oil drain bolt (pages 137, 138) Servicing Your Honda...
Page 124
Indicates something concealed. air cleaner (page 147) spark arrester (page 161) air cleaner housing rear final gear oil fill cap drain tube (page 150) rear final gear oil drain bolt (pages 139, 140) engine oil drain bolt (page 132) Servicing Your Honda...
Page 125
Maintenance Component Locations driveshaft boots brake light switch (page 182) (page 173) brake fluid reservoir tank (page 168) front brake caliper (page 170) Servicing Your Honda...
The tool kit includes the following items: standard/Phillips screwdriver screwdriver handle spark plug wrench 14 mm box end wrench sponge UNDER SEAT RIGHT SIDE tool kit tool kit compartment right side rubber dust cover Servicing Your Honda...
Store your owner’s manual in the storage compartment on the inside of the glove box. The owner’s manual should be stored in the plastic bag. Be careful not to flood this area when washing your Honda SXS. RIGHT SIDE glove box owner’s manual...
Removal 1. Turn the knobs clockwise. 2. Remove the front hood. Installation 1. Insert the hooks into the slots. 2. Turn the knobs counterclockwise. hooks front hood knobs slots Servicing Your Honda...
4. Remove the air guide plate. Installation 1. Insert the prongs into the frame. 2. Install the clamp until it seats properly. 3. Install the clips. 4. Install the front hood. clips air guide plate anchor prong clamp prong Servicing Your Honda...
1. Pull up the centre pin to release the lock. 2. Pull out the clip of the hole. Installation 1. Insert the clip into the hole. 2. Press down the centre pin securely to lock the clip. Servicing Your Honda...
1. Open the doors (page 41). 2. Pull the front of the front seat upward then slide it slightly forward. grommets hooks front seat prongs Installation Insert the hooks into the frame and the prongs into the grommets of the front seat. Servicing Your Honda...
• Place a jack only at the specified jack-up point. • Do not leave any person or cargo in the vehicle. • Do not place any object above or under a jack. support point support point jack up point jack up point Servicing Your Honda...
91 (or higher) number Use only unleaded fuel in your Honda. The use of leaded fuel will damage the catalytic converter. If you drive your Honda in a country where leaded fuel might be available, take precautions to use only unleaded fuel.
Page 135
Refuelling Procedure Refer to Safety Precautions on page 105. RIGHT SIDE fuel fill cap bottom of filler neck 1. Open the right side door (page 41). 2. Turn the fuel fill cap counterclockwise. Servicing Your Honda...
Page 136
• Handle fuel only outdoors. • Wipe up spills immediately. 4. After refuelling, turn the fuel fill cap clockwise securely and close the door. If you replace the fuel fill cap, use only a Honda Genuine replacement part. Servicing Your Honda...
Change the engine oil as specified in the maintenance schedule on page 109. When running in very dusty conditions, oil changes should be performed more frequently than specified in the maintenance schedule. Servicing Your Honda...
Page 138
* Suggested oils are equal in performance to SJ oils that are not labeled as energy conserving or resource conserving on the circular API service label. • Your Honda SXS does not need oil additives. Use the recommended oil. • Do not use oils with graphite or molybdenum additives. They may adversely affect clutch operation.
Page 139
The JASO T 903 standard is an index for engine oils for 4-stroke motorcycle engines. There are two classes: MA and MB. Oil conforming to the standard is labeled on the oil container. For example, the following label shows the MA classification. oil code oil classification Servicing Your Honda...
Page 140
Engine Oil & Filter Checking & Adding Oil Refer to Safety Precautions on page 105. Check the engine oil level each day before operating your Honda SXS and add, if needed. Before driving your SXS, check the engine oil level.
Page 141
7. Reinstall the oil fill cap, dipstick, rubber dust cover and front seat. NOTICE Running the engine with an improper oil level can cause serious engine damage. UNDER SEAT LEFT SIDE rubber dust cover oil fill cap Servicing Your Honda...
Page 142
(page 202). If you do not have the skills or the tools, see your dealer. Drain the Engine Oil: 1. Make sure the Honda SXS is parked on level ground. Set the parking brake, and jack up and support your Honda SXS (page 123).
Page 143
Engine Oil & Filter 4. Remove the maintenance lid by removing the bolts. 5. Place an oil drain pan under the crankcase. 6. Remove the engine oil drain plug. UNDER BODY maintenance lid BACKWARD FORWARD bolts drain plug (cont’d) Servicing Your Honda...
Page 144
Insert a new oil filter to the oil filter cover. Use only the Honda Genuine oil filter or a filter of equivalent quality specified for your model. Using the wrong Honda filter or a non-Honda filter which is not of equivalent quality may cause engine damage.
Page 145
13. Pour the drained oil into a suitable container and dispose of it in an approved manner (page 202). NOTICE Improper disposal of drained fluids is harmful to the environment. (cont’d) Servicing Your Honda...
Page 146
17. Reinstall the maintenance lid by tightening the bolts to the specified torque: 12 N·m (1.2 kgf·m, 9 lbf·ft) 18. Lower your Honda SXS safely. 19. Fill the crankcase with the recommended oil, approximately: 2.9 ℓ (3.1 US qt, 2.6 Imp qt) 20.
Refer to Safety Precautions on page 105. Check the final gear oil level every 3,000 km (1,800 miles) or 300 hours of operating your Honda SXS and add, if needed. 1. Park your Honda SXS on a firm, level surface.
Page 148
Change the oil with the front final gear at normal operating temperature to assure complete and rapid draining. 1. Park the Honda SXS on a firm, level surface. 2. Place an oil drain pan under the oil drain plug. 3. Remove the oil fill cap and the drain plug.
Refer to Safety Precautions on page 105. Check the rear final gear oil level every 3,000 km (1,800 miles) or 300 hours of operating your Honda SXS, and add if needed. 1. Park your Honda SXS on a firm, level surface.
Page 150
Change the oil with the rear final gear at normal operating temperature to assure complete and rapid draining. 1. Park the Honda SXS on a firm, level surface. 2. Place an oil drain pan under the oil drain plug. 3. Remove the oil fill cap and the drain plug.
Using tap water may cause engine damage. The factory provides a 50/50 solution of antifreeze and distilled water in this Honda SXS. This coolant solution is recommended for most operating temperatures and provides good corrosion protection.
Page 152
Refer to Safety Precautions on page 105. Check the engine coolant level every day before operating your Honda SXS and add, if needed. 1. Make sure the vehicle is parked on a firm, level surface. 2. Remove the front hood (page 119).
Page 153
M I N reserve tank 5. Add coolant to the reserve tank as required to bring the coolant level to the MAX level mark. 6. After adding coolant, install the reserve tank cap and install the front hood. Servicing Your Honda...
Page 154
Refer to Safety Precautions on page 105. Coolant should be replaced by your dealer, unless you have the proper tools and service data, and are mechanically qualified. Refer to the official Honda Shop Manual. WARNING WARNING Removing the radiator cap while the engine is hot can cause the coolant to spray out, seriously scalding you.
Page 155
Have the radiator checked by your dealer if more than 20% of the radiator surface air flow is restricted. Clean the radiator core after driving your Honda SXS in mud. To clean the radiator core: 1. Remove the front hood (page 119).
Your dealer can help you determine the correct service interval for your driving conditions. Your Honda SXS’s air cleaner has very specific performance requirements. Use a new Honda Genuine air cleaner specified for your model or an air cleaner of equal quality. NOTICE Using the wrong air cleaner may result in premature engine wear.
Page 157
2. (SXS700M4P only) Remove the rear centre cover. 3. Unlatch the retainer clips. 4. Remove the air cleaner housing cover. UNDER CARGO BED rear centre cover (SXS700M4P only) retainer clips air cleaner housing cover retainer clips (cont’d) Servicing Your Honda...
Page 158
This can tear the foam. 9. Inspect for tears or cracks in the foam or seams of the air cleaner. Replace the air cleaner if it is damaged. UNDER CARGO BED clamp air cleaner screw air cleaner assembly air cleaner body Servicing Your Honda...
Page 159
12. Install the air cleaner on the air cleaner body. 13. Install the clamp. 14. Insert the air cleaner assembly into the air cleaner housing. 15. Fasten the screw. 16. Reassemble in the reverse order of removal. 17. Lower the cargo bed. Servicing Your Honda...
Page 160
3. Drain the deposits. 4. Reinstall the air cleaner housing drain tube, securing it with the clip. 5. Lower the cargo bed. RIGHT REAR clip air cleaner housing air cleaner housing drain tube Servicing Your Honda...
Apply grease to each pivot to prevent corrosion. Check for smooth movement after lubrication. If the movement is not smooth after applying grease, see your dealer. Lubrication Points Lubricate the cargo bed pivots as shown in the following illustration. cargo bed pivot Servicing Your Honda...
Page 162
Lubricate the cargo bed latch pivots as shown in the following illustration. Lift the cargo bed (page 66). cargo bed latch pivots Lubricate the cargo bed strikers as shown in the following illustration. Lift the cargo bed (page 66). cargo bed strikers Servicing Your Honda...
Page 163
Lubricate the tailgate pivots as shown in the following illustration. Open the tailgate (page 64). tailgate pivot Lubricate the brake pedal pivot and accelerator pedal pivot as shown in the following illustration. brake pedal pivot accelerator pedal pivot Servicing Your Honda...
Page 164
Lubricate the drive mode select lever pivot and shift select lever pivot as shown in the following illustration. Remove the front hood (page 119). UNDER FRONT HOOD drive mode select lever pivot shift select lever pivot Servicing Your Honda...
Page 165
Lubricate the door latch as shown in the following illustration. Open the door (page 41). (SXS700M4P only) door latch door latch Lubricate the rear seat latch as shown in the following illustration. (SXS700M4P only) rear seat latch Servicing Your Honda...
Check the accelerator pedal play periodically in accordance with the Periodic Maintenance Chart, and adjust the play if necessary. Inspection Check freeplay of the accelerator pedal. Freeplay: 5 – 10 mm (0.2 – 0.4 in) accelerator pedal 5 – 10 mm (0.2 – 0.4 in) Servicing Your Honda...
Page 167
6. After adjustment, check for smooth operation of the accelerator pedal. 7. Install the remaining parts in the reverse order of removal. UNDER FRONT HOOD LEFT FRONT decrease increase freeplay freeplay throttle cable adjuster lock nut sleeve Servicing Your Honda...
If the electrodes and insulator tip appear unusually fouled or burned, we suggest that you contact your dealer. 6. Discard the spark plug if there is apparent wear or if the insulator is cracked or chipped. Servicing Your Honda...
Page 169
The gap should be: 0.8 – 0.9 mm (0.03 – 0.04 in) UNDER SEAT LEFT SIDE top spark plug cap spark plug gap 0.8 – 0.9 mm (0.03 – 0.04 in) side electrode centre electrode side spark plug cap (cont’d) Servicing Your Honda...
Page 170
If a plug is too tight, the threads may be damaged. 10. Connect the spark plug caps. Take care to avoid pinching any cables or wires. 11. Install the front seat. Servicing Your Honda...
The exhaust system must be periodically purged of accumulated carbon. To purge the system: 1. Allow the engine and muffler to cool. 2. Remove the bolts, the spark arrester and the gasket from the muffler. REAR bolts muffler gasket spark arrester (cont’d) Servicing Your Honda...
Page 172
Check the gasket and replace it if necessary. spark arrester screen 4. Install the spark arrester and the gasket in the muffler, and tighten the bolts to the specified torque: 12 N·m (1.2 kgf·m, 9 lbf·ft) Servicing Your Honda...
Exhaust System Exhaust System Inspection Stop the engine and check for any sign of exhaust gas leakage. Listen for exhaust leaks near the muffler, which is located by the left rear wheel well. check for exhaust leakage Servicing Your Honda...
The way you drive your Honda SXS and the type of ride you want to experience can also influence your suspension needs. Lower spring pre-load provides a softer ride and is usually preferred for light loads and smooth terrain.
Page 175
The spring pre-load adjuster has 5 positions for different load or driving conditions. Before adjusting the spring pre-load, jack up your Honda SXS (page 123) to avoid damaging the adjusters. Use the pin spanner to adjust the shock spring pre-load.
This SXS utilizes a multi-component frame design that is non-serviceable. Under no circumstances should the frame lug fasteners be loosened or removed. If a bolt has been loosened or removed, see your Honda dealer before operating the vehicle. frame lug fasteners Servicing Your Honda...
Brakes The hydraulic disc braking system on your Honda SXS dissipates the heat generated by the friction of the brake pads on the disc as the wheels are slowed. As the front and rear brake pads wear, the brake fluid level will drop.
Page 178
MIN level mark brake fluid reservoir tank It should be between the MIN and MAX level marks. If the level is at or below the MIN level mark, check the brake pads for wear (page 170). Servicing Your Honda...
Page 179
Other Inspections • Make sure there are no fluid leaks. • Check for deterioration or cracks in the hoses and fittings. If the hoses are worn or cracked, have them replaced by your dealer. Servicing Your Honda...
Page 180
Rear: Check the wear indicator. If the wear indicator aligns with the reference mark, replace both pads as a set, see your dealer for this service. REAR brake reference mark caliper wear indicator Servicing Your Honda...
Page 181
Brake Pedal Inspection Refer to Safety Precautions on page 105. Check that the brake pedal moves smoothly and does not feel abnormally spongy. Refer to the maintenance schedule. CHECK THAT THE BRAKE PEDAL MOVES SMOOTHLY. brake pedal Servicing Your Honda...
Page 182
Measure the distance the parking brake starts to take hold. Parking brake lever freeplay is: 60 – 70 mm (2.4 – 2.8 in) 60 – 70 mm (2.4 – 2.8 in) parking brake lever If adjustment is necessary, have the parking brake adjusted by your dealer. Servicing Your Honda...
Page 183
Adjustment is done by holding the switch body and turning the adjusting nut. Turn the nut in direction (A) if the switch operates too late, and in direction (B) if the switch operates too soon. UNDER FRONT HOOD LEFT SIDE brake light switch Servicing Your Honda...
Tyres To safely operate your Honda SXS, your tyres must be the proper type and size, in good condition with adequate tread, and correctly inflated. WARNING WARNING Using tyres that are excessively worn, improperly inflated, damaged, or overloaded can cause a crash in which you can be seriously hurt or killed.
Page 185
Generally, underinflated tyres wear unevenly, adversely affect handling, and are more likely to fail from being overheated. Overinflated tyres make your Honda SXS drive harshly, are more prone to damage from surface hazards, and wear unevenly.
Page 186
Tyres Always check air pressure when your tyres are “cold.” If you check air pressure when your tyres are “warm” — even if your Honda SXS has only been driven for a few miles — the readings will be higher.
Page 187
WARNING WARNING Operating this Honda SXS with improper tyres, uneven tyre pressure, damaged tyres, or overloading the tyres may cause loss of control, and you could be seriously injured or killed.
Page 188
To check the condition of a tyre tread, measure the groove depth in the centre of the tyre. For best performance, you should replace a tyre before the tread depth at the centre reaches the following limits: front 4 mm (0.16 in) rear 4 mm (0.16 in) Servicing Your Honda...
Page 189
If you choose to have a tyre repaired, be sure the repair work is performed by a professional. If you have a tyre professionally repaired at a non-Honda facility, we recommend that you have the work checked by your Honda dealer.
Page 190
Tyres Tyre Replacement Refer to Safety Precautions on page 105. The tyres that came on your Honda SXS were designed to match the performance capabilities of the vehicle and provide the best combination of handling, braking, and comfort. It is best to replace all four tyres. However, if that is not possible, you must replace the tyres in pairs (front or rear) with tyres of the same size and type as the originals.
Wheels Inspection Check that the wheel nuts are tight and there are no cracks or deformation in the wheel. CHECK FOR CRACKS OR DEFORMATION. CHECK THAT THE WHEEL NUTS ARE TIGHT Servicing Your Honda...
Check the rubber boots for tears or traces of splattered grease. If necessary, have your dealer replace them. FRONT steering gearbox boots front arm ball front arm ball joint boots joint boots driveshaft boots REAR driveshaft boots Servicing Your Honda...
Honda SXS, or do not drive frequently, we recommend that you charge the battery frequently (see Battery Charging, page 187). If you do not expect to drive your Honda SXS for at least two weeks, we recommend you remove the battery, or at least disconnect the battery cables (negative cable first).
Page 194
Battery Battery Storage Refer to Safety Precautions on page 105. If you plan to store your Honda SXS, we recommend you remove the battery and store it where it can be charged every 30 days to maintain its service life.
Page 195
8. Clean the battery box after removing the battery for storage. Dry the battery box. 9. Slow charge the battery (see following section) once every 30 days. positive (+) terminal lead battery rubber band negative (-) terminal lead Servicing Your Honda...
Page 196
Reinstall in the reverse order of removal. Be sure to connect the positive (+) terminal first, then the negative (-) terminal. Make sure the clock is set to the proper time after the battery is reconnected (page 26). Servicing Your Honda...
Page 197
We recommend using a charger designed specifically for your Honda, which can be purchased from your dealer. These units can be left connected for long periods without risking damage to the battery. However, do not intentionally leave the charger connected longer than the time period recommended in the charger’s...
Frequent cleaning and polishing will keep your Honda looking newer longer. Frequent cleaning also identifies you as an owner who values his Honda SXS. A clean Honda SXS is also easier to inspect and service. General Recommendations Refer to Safety Precautions on page 105.
Page 199
3. Wash your Honda SXS with a sponge or soft towel. As you wash, check for heavy grime. If necessary, use a mild cleaner/degreaser to remove the grime.
Page 200
Appearance Care Spray Cleaning Your Honda SXS Refer to Safety Precautions on page 105. Avoid using spray cleaner products on the tyres or suspension components. Suggestions for using spray cleaners: Honda SXS condition Recommended Cleaning Dust and fingerprint Apply a spray cleaner/polish smudges.
Page 201
Refer to Safety Precautions on page 105. (Except for mat painted surface) After washing your Honda SXS, consider using a commercially available spray cleaner/polish or quality liquid or paste wax to finish the job. Use only a non-abrasive polish or wax made specifically for motorcycles or automobiles.
Page 202
Use a soft cloth or sponge, plenty of water, and a mild detergent to clean the mat paint. Dry with a soft cloth. Do not use polishing compounds or wax containing polishing compounds. These can damage or discolor the mat painted surface. Servicing Your Honda...
Tips Here’s some helpful advice on how to prepare for an off-road Tips adventure, how to transport and store your Honda, and how to be an environmentally responsible Honda SXS owner. Preparing for a Drive..............194 What to Take to the Operating Area........194 What to Take on the Trail ............
What to Take to the Operating Area Along with your Honda SXS and personal safety gear, you should take along some tools and supplies in case you have a problem. For some of the difficulties you might encounter, see Taking Care of the Unexpected, which begins on page 203.
Preparing for a Drive What to Take on the Trail What you take with you during a ride depends on the kind of terrain, how long you expect to drive, how far you might go from help, and how experienced you or your companions are in making repairs. If you decide to take some tools, spare parts, or other supplies on the trail, be sure you can carry them safely and know how to use them.
Transporting Your Honda Do not tow your Honda SXS behind a car or other vehicle except on a trailer. Follow these procedures: 1. Set the parking brake, and the drive mode selector in 4WD Diff Lock. Tips...
Page 207
Transporting Your Honda 2. Secure the vehicle with tie-down straps in the areas shown. • Suitable tie-down straps are available from your dealer. • Ordinary rope is not recommended because it can stretch under load. • Using tie-down straps in any other areas can damage your Honda SXS.
Storing Your Honda If you won’t be driving for an extended period, such as during the winter, thoroughly inspect your Honda SXS and correct any problem before storing it. That way, needed repairs won’t be forgotten and it will be easier to get your Honda SXS running again.
Storing Your Honda Preparation for Storage Refer to Safety Precautions on page 105. 1. Change the engine oil and filter (page 132). 2. Make sure the cooling system is filled with a 50/50% antifreeze solution (page 141). 3. Fill the fuel tank. Make sure the fuel fill cap is properly installed.
Page 210
9. Place your Honda SXS on blocks to lift all tyres off the floor. 10. Cover your Honda SXS with a porous material. Avoid using plastic or similar non-breathing, coated materials that restrict air flow and allow heat and moisture to accumulate.
Refer to Safety Precautions on page 105. 1. Uncover and clean your Honda SXS. 2. If your Honda SXS has been stored for more than four months — change the engine oil (page 132). 3. If your Honda SXS has been stored for more than two months —...
You & the Environment Owning and operating a Honda SXS can be enjoyable, but you must do your part to protect nature. When you show respect for the land, wildlife, and other people, you also help preserve off-road driving. Following are tips on how you can be an environmentally responsible Honda SXS owner.
Page 213
Taking Care of the Unexpected With all the challenges you can encounter off-road, there’s a chance Taking Care of the Unexpected that sometime something may go wrong. This section gives practical advice to help you deal with a wide range of problems. Take time to read this section before you drive.
Remember to take along your owner’s manual, the tool kit that came with your Honda SXS, and any other items (such as tyre repair supplies and additional tools) that might help you solve a problem on your own.
Page 215
• Do not continue driving if you are hurt or your Honda SXS is not in safe driving condition. Additional recommendations for specific problems follow.
If Your Engine Quits or Won’t Start Proper operation and maintenance can prevent starting and engine performance problems. In many cases, the cause of the problem may be a simple operational oversight. If you have a problem starting the engine — or experience poor engine performance —...
Page 217
If Your Engine Quits or Won’t Start SYMPTOM: Starter motor doesn’t operate. POSSIBLE CAUSE WHAT TO DO transmission not in Shift into neutral or press on neutral the brake pedal. blown fuse Replace with a new fuse of the same rating (page 216). battery lead loose Tighten the battery lead.
Page 218
If Your Engine Quits or Won’t Start SYMPTOM: Engine starts, but runs poorly. POSSIBLE CAUSE WHAT TO DO high coolant/oil Check the high coolant/oil temperature temperature indicator. Refer If the High Coolant/Oil Temperature Indicator Lights page 214. runs erratically, misfires May damage catalytic converter.
If the Transmission Is Not Functioning Properly When the automatic transmission is not shifting properly, the PGM-FI malfunction indicator lamp (MIL) lights and the gear position indicator will blink. See your dealer to check and restore the automatic transmission. If the PGM-FI malfunction indicator lamp (MIL) lights and the gear position indicator blinks while driving, perform the following: 1.
Page 220
If the Transmission Is Not Functioning Properly The vehicle does not move: If your Honda SXS won’t move, it is possible the transmission is locked. Use the following procedure to unlock the transmission. 1. Shift the shift lever to the neutral (N) position.
We strongly recommend that you do not try to drive with a flat tyre. The Honda SXS will be hard to handle, and if the tyre comes off the rim, it may lock up the wheel and cause you to crash or overturn.
Page 222
Removal 1. Park your Honda SXS on a firm, level surface. 2. Loosen — but do not remove — the wheel nuts. 3. Raise the front (or rear) wheels off the ground (page 123). 4. Remove the wheel nuts.
Page 223
3. Position the wheel nuts so that the tapered sides face the wheel rim. 4. Hand-tighten the wheel nuts on the wheel, then lower the Honda SXS to the ground before tightening the nuts in a crisscross (rather than circular) pattern to the specified torque: 133 N·m (13.6 kgf·m, 98 lbf·ft) If a torque wrench was not used for installation, see your dealer as soon as possible to verify proper assembly.
If the High Coolant/Oil Temperature Indicator Lights Normally, the high coolant/oil temperature indicator will only light momentarily when you turn the ignition ON (q). Occasionally, it may flicker at or near idling speed. High coolant/oil temperature may be caused by restriction of air flow to the radiator (such as mud caked on the radiator), extended idling, an oil leak, a coolant leak, a low oil level, a low coolant level, or extended operation under adverse conditions.
Page 225
• Check for an oil leak. • Check the oil level. If necessary, add the recommended oil (page 128) to the upper level mark. If you must leave your Honda SXS to get oil, secure it as much as possible.
If a Fuse Blows All of the electrical circuits on your Honda SXS have fuses to protect them from damage caused by excess current flow (short circuit or overload). If something electrical on your Honda SXS stops working, the first thing you should check for is a blown fuse.
Page 227
If a Fuse Blows Main Fuse Access 1. To prevent an accidental short circuit, turn the ignition switch OFF (w) before checking or replacing the fuses. 2. To access the main fuse, remove the front seat (page 122) and right side rubber dust cover. 3.
Page 228
If a Fuse Blows Circuit Fuse Access 5. To access the circuit fuse, remove the front hood (page 119). 6. Remove the fuse box cover then, open the fuse cover. 7. To check or replace a circuit fuse, pull the old fuse out. If the fuse is blown, replace it with a spare fuse of the same rating.
Page 229
If a Fuse Blows Electric Power Steering (EPS) Fuse Access 1. Turn the ignition switch to OFF (w) before checking the fuse. 2. Remove the front seat (page 122) and right side rubber cover. 3. To access the EPS fuse, remove the fuse cover. If the EPS fuse is blown, see your dealer for this service.
Page 230
If a Fuse Blows If you do not have a spare fuse and you cannot drive the Honda SXS without fixing the problem, take a fuse of the same rating or a lower rating from one of the other circuits that you can do without temporarily.
If there is minor damage, or you are unsure about possible damage but decide to try driving the Honda SXS back to your base, drive slowly and cautiously. Sometimes, crash damage is hidden or not immediately apparent.
If you don’t know your key number, call the dealer where you purchased your Honda SXS. They may have it listed in their records. If they don’t, transport your Honda SXS to them or the nearest dealer. The dealer will probably have to remove the ignition switch assembly to find the key number so they can make a key for you.
If the battery is low, the starter motor doesn’t operate or works poorly, and you can’t start the engine. Jump starting your Honda SXS should be avoided. Instead, the battery should be removed and recharged (page 187). If you can’t charge the battery or it appears unable to hold a charge, contact your dealer.
Page 234
If the Battery Is Low 1. To prevent an accidental short circuit, turn the ignition switch OFF (w). 2. Remove the front seat (page 122) and right side rubber dust cover. 3. Using a fully charged 12-volt battery, connect the positive (+) side of the jumper cable to the charged battery, and connect the positive (+) side on the other end of the jumper cable to the positive (+) terminal of vehicle battery.
• If you damage the accelerator cable or other critical component, your Honda SXS may be unsafe to drive. Carefully assess the damage and make any repairs that you can. But if there is any doubt, it’s best to be conservative and safe.
If the Vehicle Speed Does Not Exceed 24 km/h (15 mph) If the driver's side seat belt is not latched properly, the maximum vehicle speed will be limited to no more than 24 km/h (15 mph) by the seat belt speed limiting system (page 55). Also the seat belt indicator and speedometer digits blink.
Page 237
Technical Information This section contains dimensions, capacities, and other technical Technical Information data, plus information on government requirements and how to break-in your Honda SXS. Vehicle Identification ..............228 Specifications ................230 Break-in Guidelines..............236 Petrol Containing Alcohol............237 Catalytic Converter ..............238...
Vehicle Identification Serial Numbers The VIN, engine serial number, and key number may be required when ordering replacement parts. Record the numbers here for your reference. The VIN is stamped on the left side of the frame, located under the rear cargo bed.
Page 239
Vehicle Identification Colour Label & Code The colour label is attached to the right front side of the frame. The colour code is helpful when ordering replacement parts. Record the colour and code here for your reference. COLOUR__________________________________________________ CODE ____________________________________________________ RIGHT FRONT SIDE OF THE FRAME colour label Technical Information...
Specifications Dimensions overall length 2,910 mm (114.6 in) overall width 1,525 mm (60.0 in) overall height SXS700M4P 1,985 mm (78.1 in) SXS700M2P 1,970 mm (77.6 in) wheelbase 1,950 mm (76.8 in) ground clearance 270 mm (10.6 in) curb weight SXS700M4P 646 kg (1,424 lb) SXS700M2P 581 kg (1,281 lb)
Page 241
API service label, SAE 10W-30, JASO T 903 standard MA, Honda 4-stroke oil or an equivalent cooling system High quality ethylene glycol recommendation antifreeze containing corrosion...
Page 242
Specifications Capacities passenger SXS700M4P capacity operator and three passengers SXS700M2P operator and one passenger maximum weight SXS700M4P capacity 650 kg (1,433 lb) SXS700M2P 604 kg (1,331 lb) operator, passenger, all cargo and accessories Engine Specifications displacement 675 cm (41.2 cu-in) bore &...
Page 243
Specifications Power Transmission primary reduction 1.333 secondary forward 2.562 reduction reverse 3.285 final reduction front 3.461 rear 3.461 transmission ratio 2.052 1.416 0.933 reverse 2.052 final drive shaft Chassis & Suspension caster 3° trail 15 mm (0.6 in) tyre size front: 25X8.00-12 NHS BLACKSTONE OTR HP-007...
Page 244
Specifications Lights headlight 12 V 37.5 W x 2 brake/tail light neutral indicator reverse indicator high coolant/oil temperature indicator PGM-FI malfunction indicator lamp (MIL) parking brake indicator seat belt indicator front differential lock indicator electric power steering (EPS) indicator If there is a LED which is not turned on, see your dealer for this service.
Page 245
Specifications Torque Specification engine oil filter 18 N·m (1.8 kgf·m, 13 lbf·ft) bolt engine oil drain 25 N·m (2.5 kgf·m, 18 lbf·ft) bolt maintenance lid 12 N·m (1.2 kgf·m, 9 lbf·ft) mount bolts front final gear oil 12 N·m (1.2 kgf·m, 9 lbf·ft) fill cap front final gear 12 N·m (1.2 kgf·m, 9 lbf·ft)
Break-in Guidelines Help assure your Honda SXS’s future reliability and performance by paying extra attention to how you drive during the first operating day or 25 km (15 miles). During this period, avoid full-throttle starts and rapid acceleration. Technical Information...
Engine performance problems resulting from the use of fuels that contain alcohol are not covered under the warranty. Honda cannot endorse the use of fuels containing methanol since evidence of their suitability is not yet complete.
The catalytic converter acts on HC, CO, and NOx. A replacement unit must be an original Honda part or its equivalent. The catalytic converter must operate at a high temperature for the chemical reactions to take place. It can set fire to any combustible materials that come near it.
Page 249
Index Index accessories ...................4 accessory power socket ..............63 age and size recommendation ............2 air cleaner, body ..................148 filter ..................146 housing drain tube ..............150 air guide plate removal .............120 air pressure, tyre ...............175 apparel, protective ..............71 appearance care ...............188 AT/MT switch ................35 battery ..................183 brakes, fluid ..................167...
Page 250
Index clip removal ................121 colour label ................229 compartment, owner’s manual ..............118 storage ..................62 tool kit ..................117 component fails ................225 coolant temperature gauge ............28 crash, if you ................221 crossing a hill ................98 digital clock ................26 dipstick ..................130 doors ..................41 drive mode .................89 drive mode select lever ...............38 driveshaft boots ................182 driving,...
Page 251
Index engine, number .................228 oil ..................127 pinging ..................124 starting ..................82 stopping ..................82 won’t start ................206 environment ................202 final gear oil ..............137, 139 flat tyre ..................211 four wheel drive indicator ............32 frame ..................166 fuel gauge ..................24 fuel, fill cap ...................125 recommendation ..............124 tank capacity .................125 fuses ..................216 gap, spark plug ..............159, 232...
Page 252
Index hill, approaching a hill ..............96 crossing a hill ................98 driving down a hill ..............97 driving up a hill ................97 stopping on a hill ..............97 hour meter .................30 identification, vehicle ..............228 ignition switch ................33 indicators, differential lock indicator ............17 electric power steering (EPS) indicator ........18 gear position indicator .............32 high coolant/oil temperature indicator ......17, 214 neutral indicator ..............17...
Need help?
Do you have a question about the Pioneer SXS700M2P 2019 and is the answer not in the manual?
Questions and answers
