EstesRockets.com
IMPORTANT: Please record date found on package and keep for future reference.
READ ALL INSTRUCTIONS. Make sure you have all parts and supplies.
090001-5325
Self-stick decal
072697
Engine retainer cap
ASSEMBLE ENGINE MOUNT FIN CAN UNIT
1.
Press firmly
together.
5.
Repeat for
remaining fins.

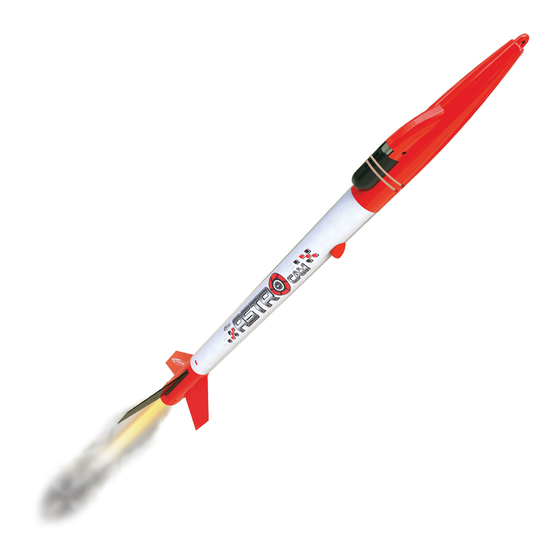

Astrocam
MODEL ROCKET INSTRUCTIONS
KEEP FOR FUTURE REFERENCE
031393
Body tube
073211/212
Engine mount
fin can unit
(1 fin slot)
(2 fin slots)
072700/926
Fins
2.
3.
6.
®
073217
Camera/
memory card
073113
String
067112
Rubber Bands
X6
Insert fin into
slot.
7.
Screw engine
retainer cap onto
fin can unit.
1
072840
Nose cone
073209/210
Shock cord mount/anchor
038364
Shock cord
035806
Parachute
4.
Slide fin forward until it stops.
7308

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Astrocam 007308 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Estes Astrocam 007308

Summary of Contents for Estes Astrocam 007308

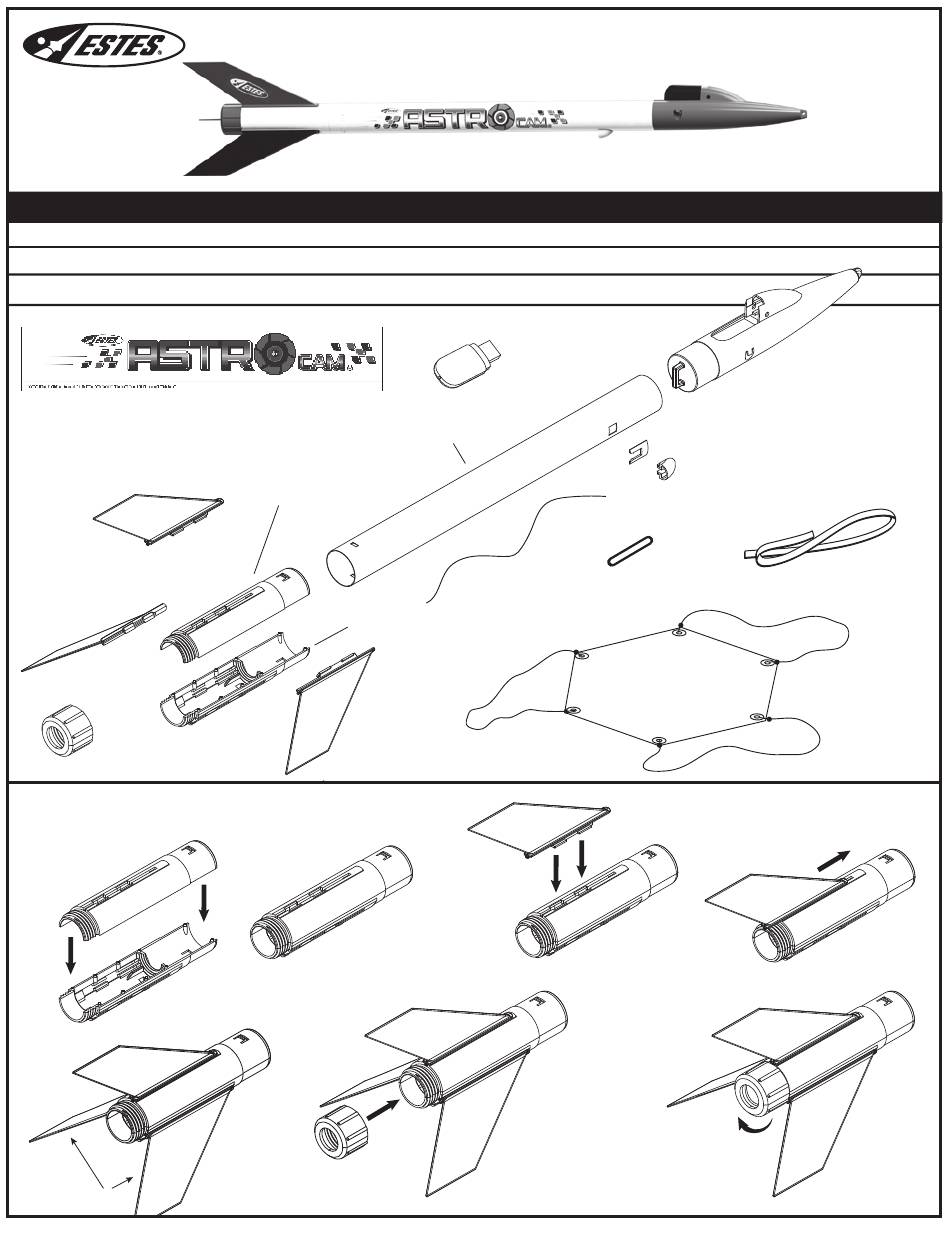

  • Page 1 Astrocam 7308 ® EstesRockets.com MODEL ROCKET INSTRUCTIONS KEEP FOR FUTURE REFERENCE IMPORTANT: Please record date found on package and keep for future reference. READ ALL INSTRUCTIONS. Make sure you have all parts and supplies. 073217 072840 Camera/ Nose cone memory card 090001-5325 Self-stick decal 031393...
