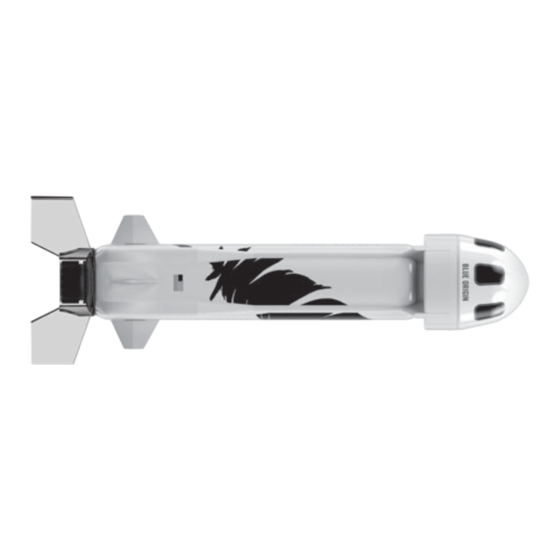

Estes BLUE ORIGIN NEW SHEPARD Instructions

EstesRockets.com
IMPORTANT: Please record date found on box near barcode, and keep for future reference. ______________
Read all instructions carefully.
PREPARE RECOVERY SYSTEM
1.
DOUBLE KNOT
SHOCK CORD
PREPARE FLIGHT RECOVERY
1.
6-7 SQUARES
RECOVERY
WADDING
NOTE:
Only Estes recovery wadding recommended.
®
TO ACCESS PAYLOAD COMPARTMENT
1.
Twist top cover counter
clockwise to remove.
PREPARE ENGINE
2.
1.
ENGINE
RETAINER CAP
CLEAR
FIN UNIT
ENGINE
B L U E O R I G I N
NEW SHEPARD
READY TO FLY MODEL ROCKET INSTRUCTIONS
KEEP FOR FUTURE REFERENCE
2.
PARACHUTE
SHOCK CORD
2. 3.
NOTE:
Recovery wadding and parachute must slide easily into body tube. If too tight, redo.
2.
3.
Tighten until stops.
STARTER
Use 1 each.
6.
NOTE:
If clear n unit wobbles, retighten
engine retainer cap.
PARACHUTE
4.
3.
Insert your favorite payload.
(Altimeter shown for reference only
- sold seperately)
4.
PLUG
7.
1:66 Scale
NOTE:
3.
Remove and discard tape on capsule.
SHOCK CORD
5.
Wrap lines loosely.
4.
5.
TIP MUST TOUCH
PROPELLANT!
WARNING: FLAMMABLE
To avoid serious injury, read instructions &
NAR Safety Code included with engines.
PREPARE YOUR ENGINE ONLY WHEN
YOU ARE OUTSIDE AT THE LAUNCH SITE
PREPARING TO LAUNCH. If you do not use
your prepared engine, remove the starter
before storing your engine.
2198
