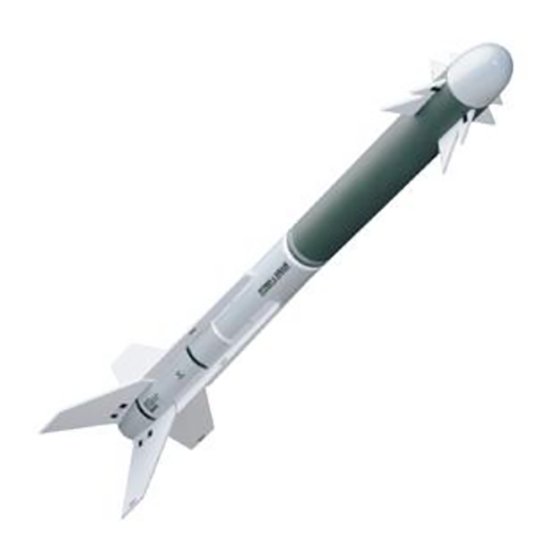

Estes ASRAAM PYTHON 4 EST 2054 Instructions Manual

www.estesrockets.com
ESTES® INDUSTRIES
1295 H Street
Penrose, CO 81240
PRINTED IN CHINA
FLYING MODEL ROCKET KIT INSTRUCTIONS
ASSEMBLY TIP:
Read all instructions
before beginning work on
your model. Make sure
you have all parts and
supplies.
TEST-FIT ALL PARTS
TOGETHER BEFORE
APPLYING ANY GLUE!
If any parts don't fit properly, sand
as required for precision assembly.

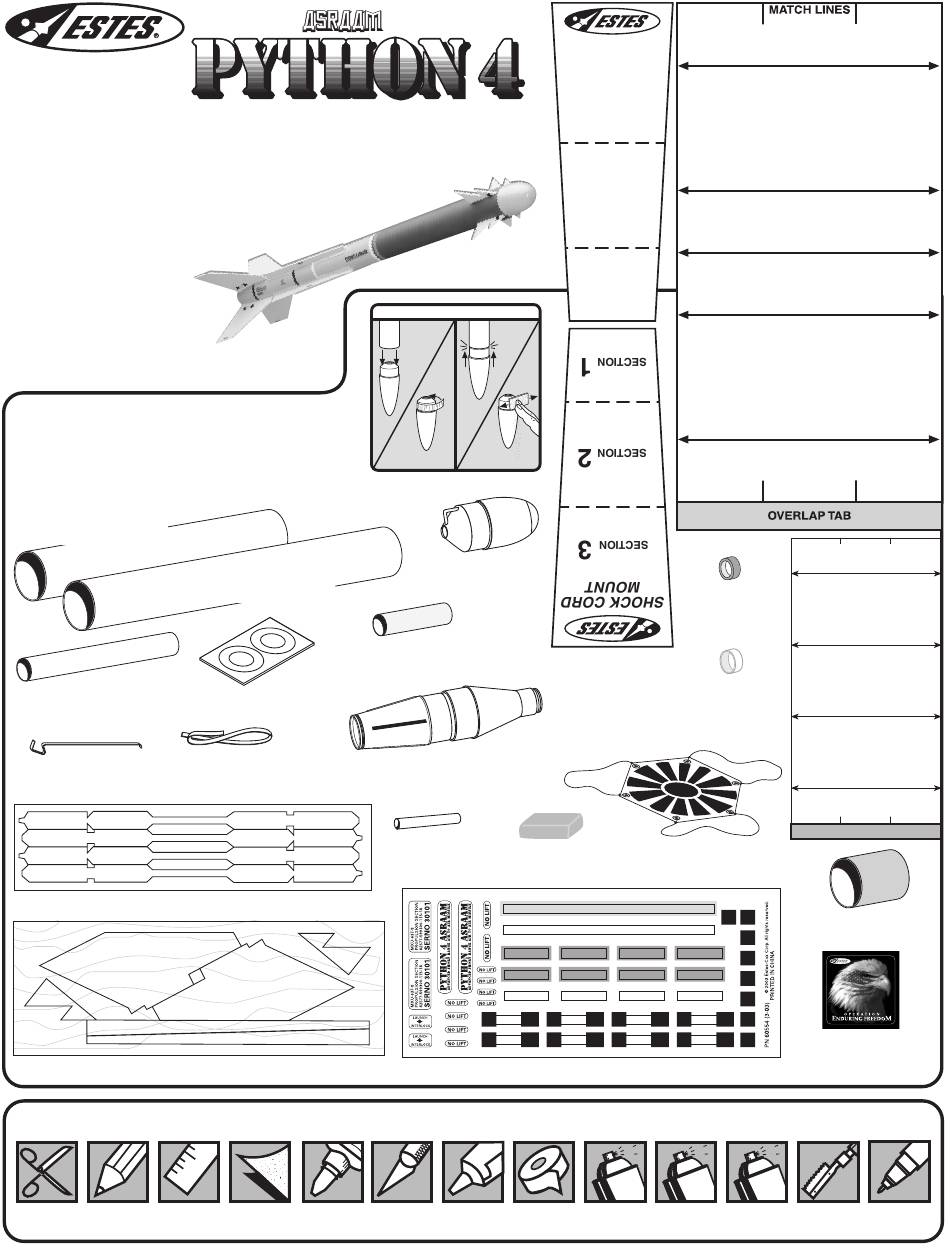

PARTS:
Locate the parts shown below and lay them
out on the table in front of you.
DO NOT USE THIS DRAWING TO
ASSEMBLE YOUR ROCKET.
Upper Body Tube BT-55
(1) (30375)
Engine Mount Tube
BT-20 (1) (30327)
Engine Hook (1)
(35021)
Die Cut Card Fin Conduit (1) (32907)
Die Cut Balsa Sheet (2) (32216)
SUPPLIES
In addition to the parts included in the kit you will also need:
SCISSORS PENCIL RULER
EST 2054/1245
KEEP FOR FUTURE REFERENCE.
Main Body Tube BT-55
(1) (30374)
Yellow Spacer Tool (1)
Centering Ring Card (1)
(30126)
Shock Cord (1)
1/8" x 18"
(38374)
FINE
CARPENTER'S
SAND PAPER
GLUE
(#400-600 GRIT)
HELPFUL HINT: IF NOSE CONE/COUPLER FIT IS. . .
TOO
TOO
TIGHT
LOOSE
ADD
SAND FOR FIT.
MASKING TAPE.
Nose Cone (1)
(60552)
(35003)
Plastic Tail Cone and
Adapter (1)
(60568)
Launch Lug (1)
Clay Weight (1)
(38175)
(85704)
Decal Sheet (1) (60554)
MODELING MASKING
PLASTIC
KNIFE CEMENT TAPE
SHOCK CORD
MOUNT
3
SECTION
2
SECTION
1
SECTION
LOWER TUBE MARKING GUIDE
Green Engine
Block (1)
(30162-2)
Mylar Retainer
Ring (1)
(30168)
Assembled 12" (30 cm)
Parachute
(1) (35801)
SPRAY SPRAY PAINT:
PRIMER OLIVE
WHITE DRAB, LT. GREY
FIN
FIN
LAUNCH
LUG
FIN
FIN
MATCH LINES
FIN
FIN
FIN
UPPER TUBE MARKING GUIDE
FIN
Red Tube Coupler (1)
JT-55 (30175-5)
Operation Enduring
Freedom sticker (1)
(60586)
SPRAY RAZOR SAW SILVER PAINT
DULL
PEN
COAT
