ASSEMBLY TIP:
Read all instructions before beginning
work on your model. Make sure you have
all parts and supplies.
PARTS:

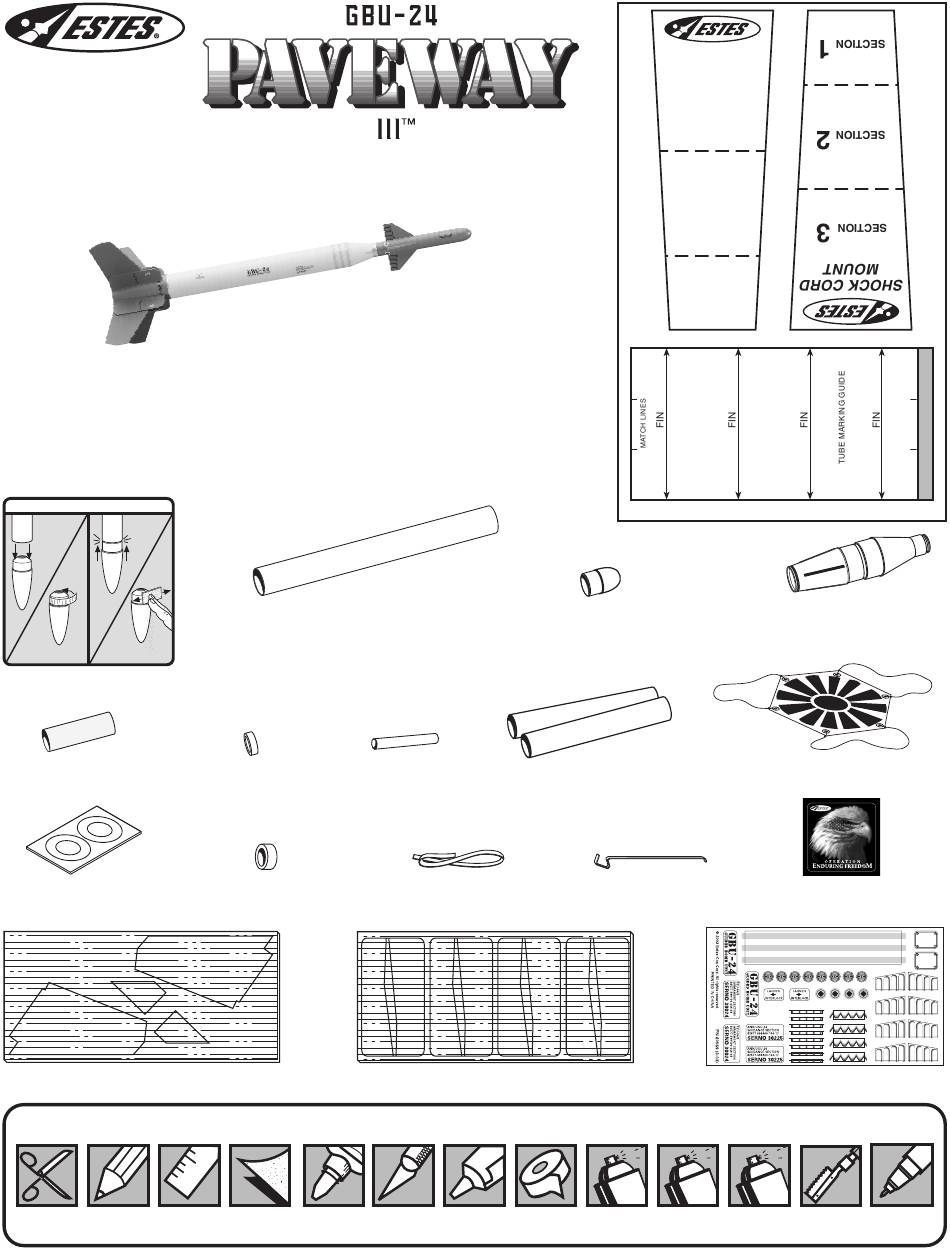

Locate the parts shown below and lay them out on the table in front of you. DO NOT
USE THIS DRAWING TO ASSEMBLE YOUR ROCKET.
HELPFUL HINT: IF NOSE CONE/COUPLER FIT IS. . .
TOO
TOO
TIGHT
LOOSE
ADD
SAND FOR FIT.
MASKING TAPE.
Yellow Spacer Tool (1)
(35003)
Centering Ring Card (1)
(30126)
Die Cut Balsa Sheet (2)
(32218)
SUPPLIES
In addition to the parts included in the kit you will also need:
SCISSORS
PENCIL
RULER
EST 1247/2053
FLYING MODEL ROCKET KIT INSTRUCTIONS
KEEP FOR FUTURE REFERENCE.
TEST-FIT ALL PARTS TOGETHER
BEFORE APPLYING ANY GLUE!
If any parts don't fit properly, sand as required
for precision assembly.
Body Tube BT-55 (1)
(30374)
Mylar Retainer
Launch Lug (1)
Ring (1)
(30168)
Green Engine
Block (1)
(30162-2)
FINE
MODELING
CARPENTER'S
SAND PAPER
GLUE
(#400-600 GRIT)
Nose Cone (1)
Body Tube BT-20 (2)
(38178)
(30329)
Shock Cord (1)
1/8" x 18"
(38374)
Die Cut Balsa Sheet (1)
(32219)
MASKING
PLASTIC
KNIFE
TAPE
CEMENT
SHOCK CORD
MOUNT
3
SECTION
2
SECTION
1
SECTION
UPPER TUBE MARKING GUIDE
GBU-24 PAVEWAYIII EST 2053
(60567)
Assembled 12" (30 cm) Parachute
Engine Hook (1)
Operation Enduring Freedom
(35021)
SPRAY
SPRAY PAINT:
SPRAY
PRIMER
WHITE, OLIVE
DULL
WHITE
DRAB, RED
COAT
Plastic Tail Cone and
Adapter (1)
(60568)
(35801)
sticker (1)
(60586)
Decal Sheet (1)
(60569)
RAZOR SAW SILVER PAINT
PEN
