Bryant 313AAV/JAV Product Data

313AAV/JAV Plus 80x
4- -WAY MULTIPOISE
INDUCED- - COMBUSTION GAS FURNACE
INPUT CAPACITIES: 45,000 THRU 135,000 Btuh
THE BRYANT Plus 80x GAS FURNACE
The Plus 80x Deluxe 4- -Way Multipoise Gas Furnace offers
outstanding features in an 80% AFUE furnace.
Deluxe features include: an ECM motor which enhances SEER
performance up to 1.5 points*, a third fan relay for discrete
continuous fan speed, the ability to change continuous fan speeds
from the thermostat (Fan on Plust), dehumidify mode, standard
Media Filter Cabinet, fault code storage, and more. The Plus 80x
is very quiet thanks to a new combustion design that eliminates
noise, rather than just muffle or box it in. Applications are easy
with 4- -way multipoise design, through- -the- -furnace downflow
venting, 13 different venting options, and a door designed for easy
service access. An inner blower door is provided for tighter sealing
in sensitive applications. The 313JAV is approved for use in Low
NOx Air Quality Management Districts.
*as compared to the Air Conditioning Heating and Refrigeration
Institute's standard coil- -only ratings when paired with selected
Bryant evaporator coils.
Product Data
STANDARD FEATURES
S ECM blower motor included
S Noise elimination combustion system
S SmartEvapt can lower the humidity level in the home by
nearly 10%
S Four- -position furnace: Upflow, Horizontal Right,
Horizontal Left, Downflow
Thirteen different vent options
S Compact design only 33- -1/3 in. (847 mm) tall
S High- -Efficiency Media Filtration Cabinet included
S Washable filter included
S Microprocessor based "smart" control center
"Fan on Plus
thermostat
Adjustable heating air temperature rise
Dehumidify mode
LED diagnostics, non- -volatile fault code memory, and self- -test
feature

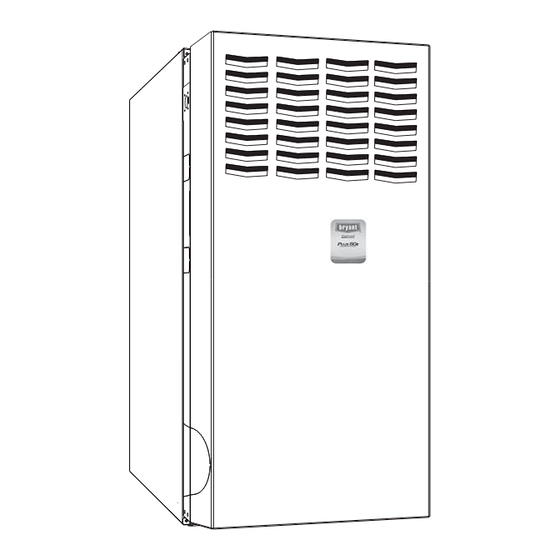

A08288
On- -board fuse for transformer protection
S Patented blocked vent safeguard to ensure proper furnace
venting
S Insulated blower compartment
S HYBRID HEAT® Dual Fuel System compatible
S All models are chimney friendly when used with accessory
vent kit
S Perfect Lightt Igniter
S Residential installations eligible for consumer financing
through the Comfort Credit Program
1
"- -Continuous Fan speed adjustable from
