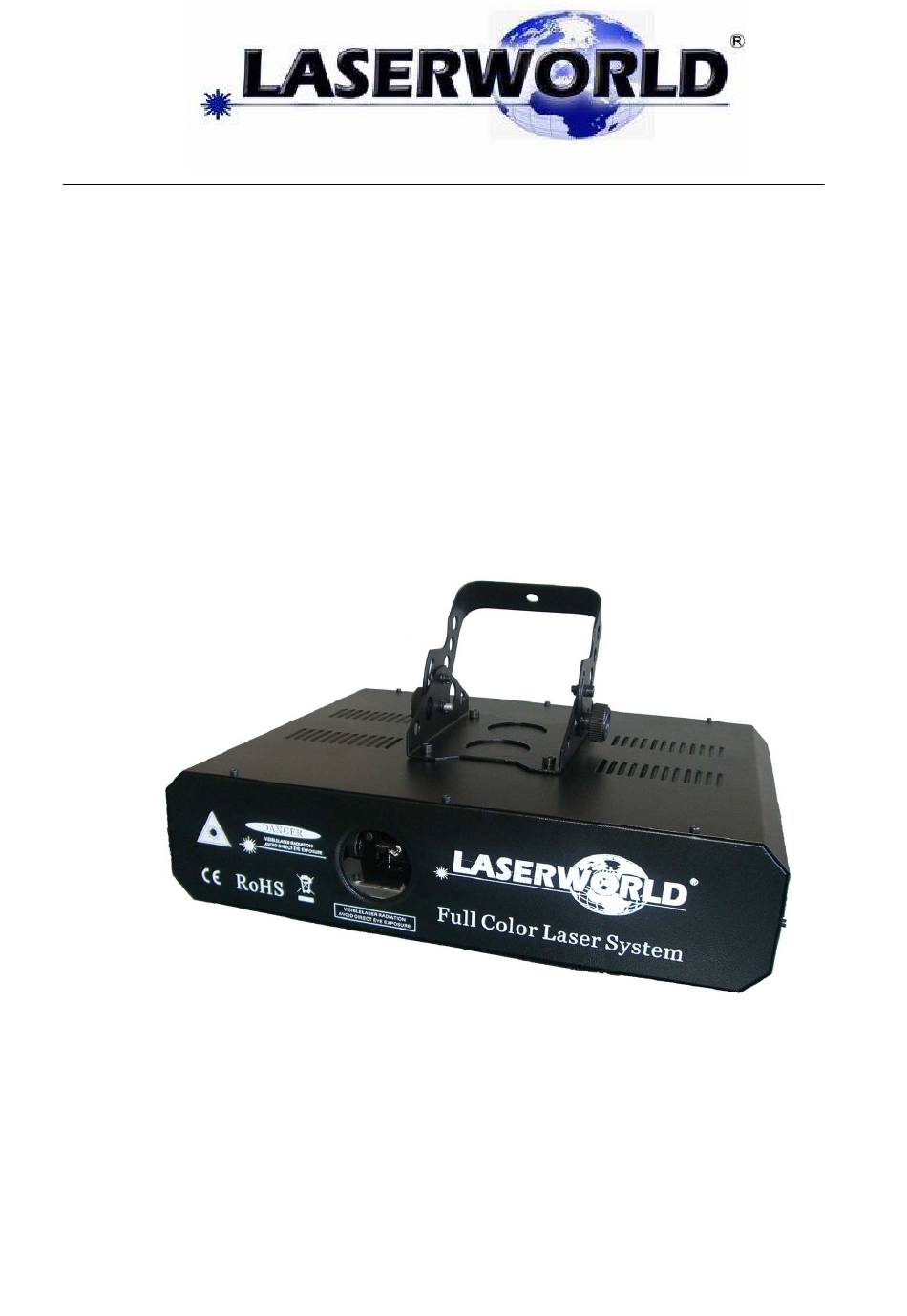

- Page 1 CS-300G DMX USER MANUAL Please read this manual carefully before use!
-
Page 2: Table Of Contents
USER MANUAL: Laserworld Proline CS-300G DMX Page 2 of 10 Table of contents Page 1. SAFETY INSTRUCTIONS 2. OPERATING DETERMINATIONS 3. PACKAGE LIST 4. PRODUCT INTRODUCTION 5. FUNCTION INTRODUCTION 6. INSTRUCTIONS 7. CHANNEL’S FUNCTION 8. SIGNAL CONNECTION AND ADRESS DIALING 9. -
Page 3: Safety Instructions
USER MANUAL: Laserworld Proline CS-300G DMX Page 3 of 10 DANGER LASER RADIATION! Avoid direct eye exposure! Laser radiation can cause eye damage and/or skin damage All protective measures for a safe operation of this laser must be applied. 1. SAFETY INSTRUCTIONS If the device has been exposed to drastic temperature fluctuation, do not switch it on immediately. -
Page 4: Operating Determinations
USER MANUAL: Laserworld Proline CS-300G DMX Page 4 of 10 2. OPERATING DETERMINATIONS 6. The operator has to make sure that laser radiation – also reflected laser radiation –higher than the highest allowed level is avoided by technical or organisational measures. -
Page 5: Product Introduction

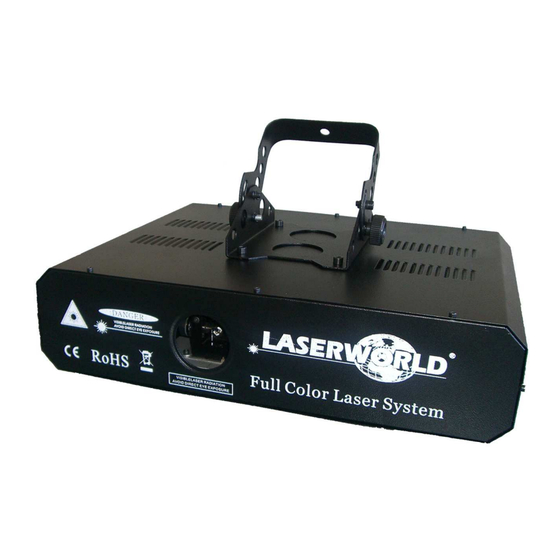

USER MANUAL: Laserworld Proline CS-300G DMX Page 5 of 10 4. PRODUCT INTRODUCTION The Club series projector adopts the latest appearance design to make it compact and light. The housing use imported paint. It has füll solid semiconductor laser source. Wavelength is 523nm and emerald green color. Laser generator is double- temperature -controlled power supply. -
Page 6: Channel's Function
USER MANUAL: Laserworld Proline CS-300G DMX Page 6 of 10 7. CHANNEL’S FUNCTION Ch1: Laser pattern A switch light: 0-51 for laser source switch, 52-103 for automatic with out breakpoint, 104-155 for automatic with breakpoint, 156-207 for acoustic control without breakpoint, 208-255 for acoustic control with breakpoint. -
Page 7: Signal Connection And Adress Dialing
USER MANUAL: Laserworld Proline CS-300G DMX Page 7 of 10 8. SIGNAL CONNECTION AND ADRESS DIALING When the Controller transmits DMX512 Standard Signals, the connection of which is accomplished through the "input" and "output" 3-pin XLR socket. When a console Signal Outputs to the unit, it must correspond to the Pin 1 Ground, Pin 2 Negative and Pin 3 Positive of the XLR socket on the unit. -
Page 8: Safety Marks
USER MANUAL: Laserworld Proline CS-300G DMX Page 8 of 10 This Club series has controlled by on/off switch address code. 1 to 9 are the numerical value DMX 512 Signal, 0 is the exchange switch of sound activated control and DMX512 Signal control. When 0 is on, it can accept sound control. When 0 is off, it can accept DMX-512 Signal control. -
Page 9: Maintenance
Laserworld cannot be made liable for damages caused by incorrect installations and unskilled operation! - Page 10 USER MANUAL: Laserworld Proline CS-300G DMX Page 10 of 10 EU- Declaration of Conformity We hereby confirm that the following device Laserworld Club CS-300G DMX Laser Projector complies with the essential safety requirements, laid down in the regulations of the committee to assimilate the provisions of law of all participating EU states on the electromagnetic compatibility (89/446/EWG).
