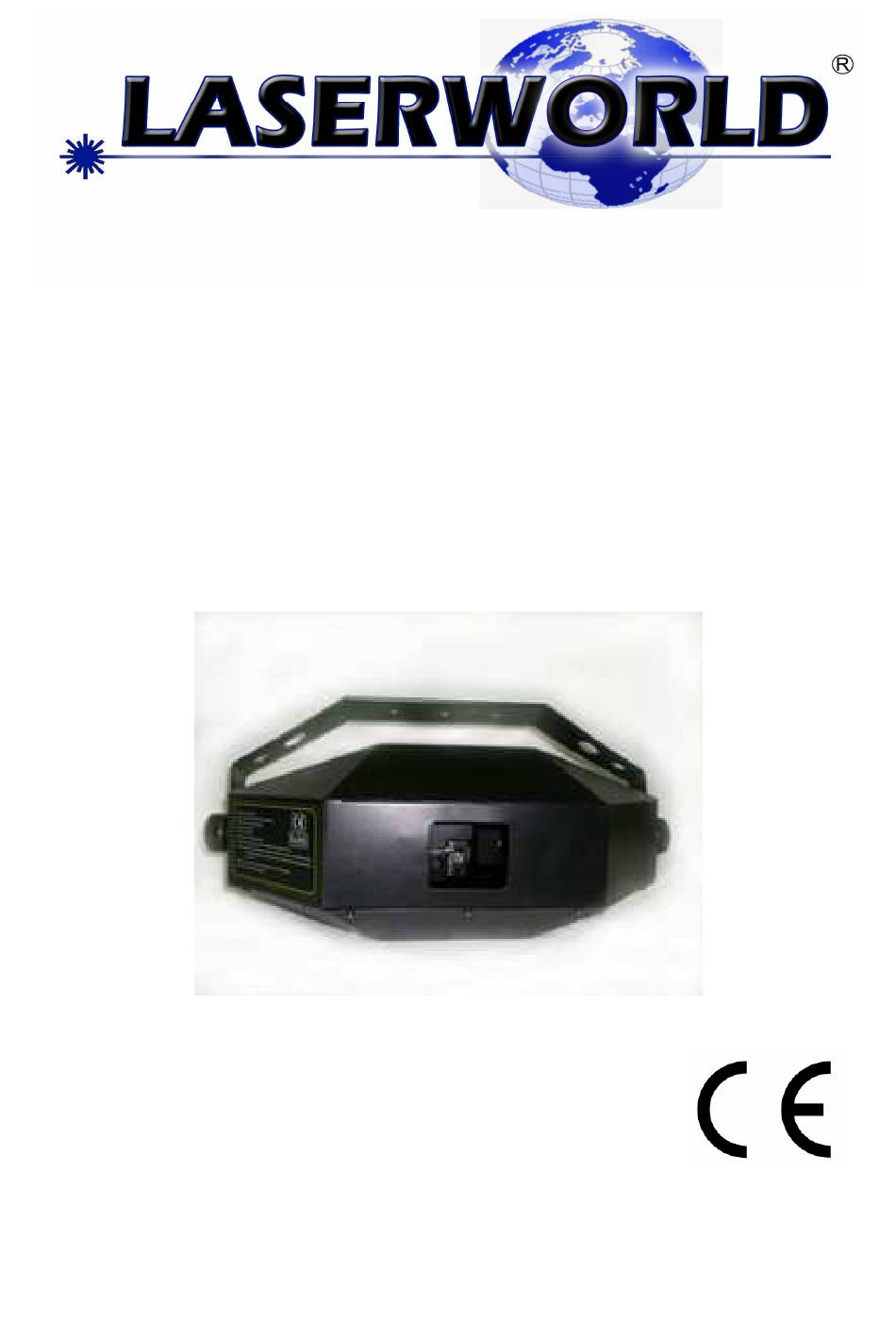

- Page 1 CS-300 G ~300mW green club laser USER MANUAL Please read this manual carefully before you initially start-up!
-
Page 2: Table Of Contents
USER MANUAL: Laserworld CS-300 G – 300mW green club laser Page 2 of 9 Table of contents Page 1. SAFETY INSTRUCTIONS 2. OPERATING DETERMINATIONS 3. SOUND-MODE 4. OPERATION WITH DMX 5. DMX CHANNELS 6. TECHNICAL SPECIFICATIONS 7. MAINTENANCE Checking Parts... -
Page 3: Safety Instructions
USER MANUAL: Laserworld CS-300 G – 300mW green club laser Page 3 of 9 DANGER LASER RADIATION! Avoid direct eye exposure! Laser radiation can cause eye damage and/or skin damage All protective measures for a safe operation of this laser must be applied. -
Page 4: Operating Determinations
USER MANUAL: Laserworld CS-300 G – 300mW green club laser Page 4 of 9 2. OPERATING DETERMINATIONS The operator has to make sure that laser radiation – also reflected laser radiation –higher than the highest allowed level is avoided by technical or organisational measures. -
Page 5: Operation With Dmx
USER MANUAL: Laserworld CS-300 G – 300mW green club laser Page 5 of 9 3. CONTROL BOARD INSTRUCTION For sound-mode the 10 DIP-switch at the back of the unit must be “ON”. 4. OPERATION WITH DMX Set the DMX address code with the binary system “0” or “1” remind that the 10 Dip switch is “OFF”... -
Page 6: Dmx Channels
USER MANUAL: Laserworld CS-300 G – 300mW green club laser Page 6 of 9 5. DMX CHANNELS The CS-300 G is able to show 2 patterns at the same time. In this manual they are called pattern “A” and “B”. DMX Channel DMX-Value Descriptions 0 –... - Page 7 USER MANUAL: Laserworld CS-300 G – 300mW green club laser Page 7 of 9 0-255 Lines,waves,circles and Graphics pattern B 0 – 128 Rotation angle B rotation B 129 - 255 Rotation speed B 0 – 128 X-position B X-turning B...
-
Page 8: Technical Specifications
Laserworld cannot be made liable for damages caused by incorrect installations and unskilled operation! - Page 9 USER MANUAL: Laserworld CS-300 G – 300mW green club laser Page 9 of 9 EU- Declaration of Conformity We hereby confirm that the following device Laserworld CS-300 G – 300mW green club Laser complies with the essential safety requirements, laid down in the regulations of the committee to assimilate the provisions of law of all participating EU states on the electromagnetic compatibility (89/446/EWG).
